Education 1973 GTC Draughtsmanship Book 3
Education 1973 GTC Draughtsmanship Book 3 Notes
Index |
|
|---|---|
| Page No. | Week No & Subject |

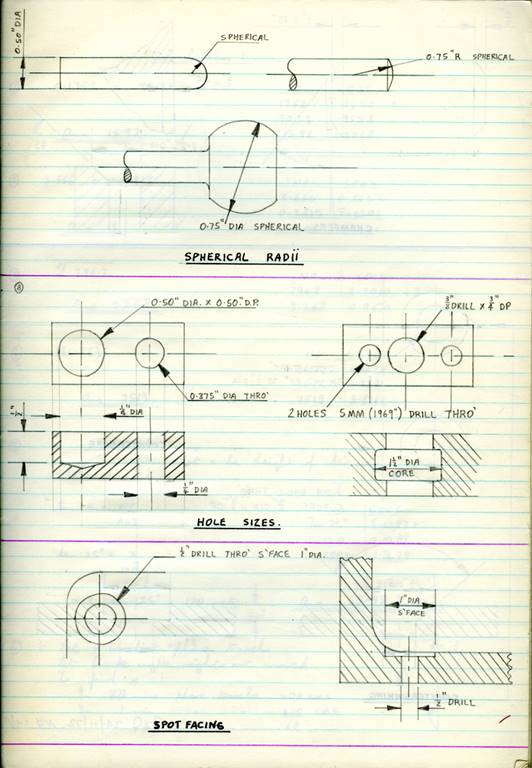

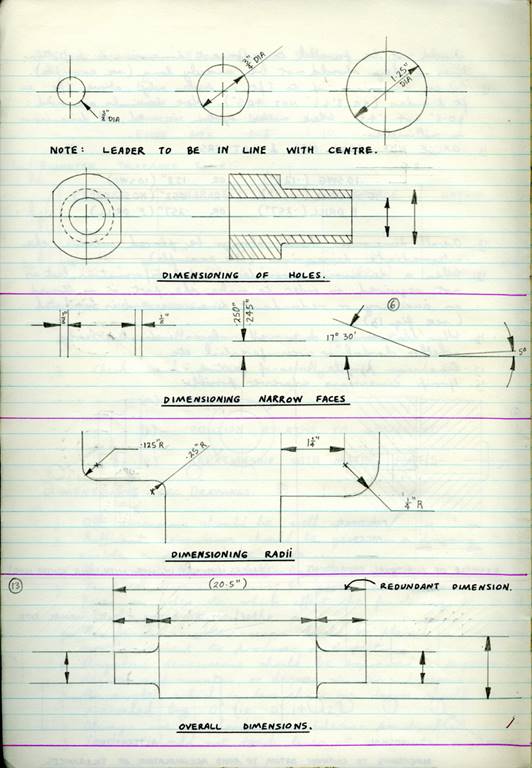

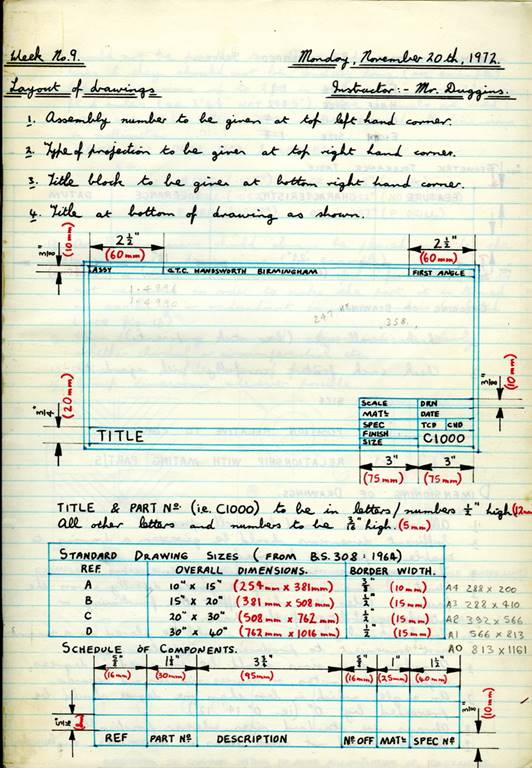

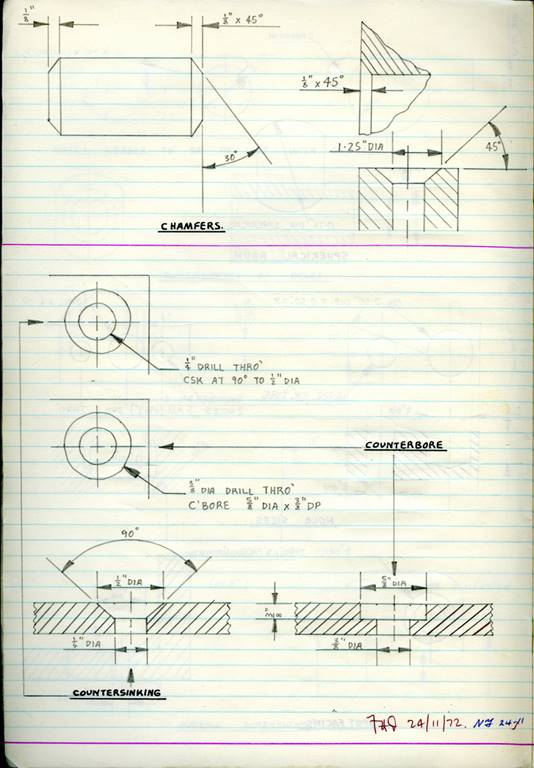

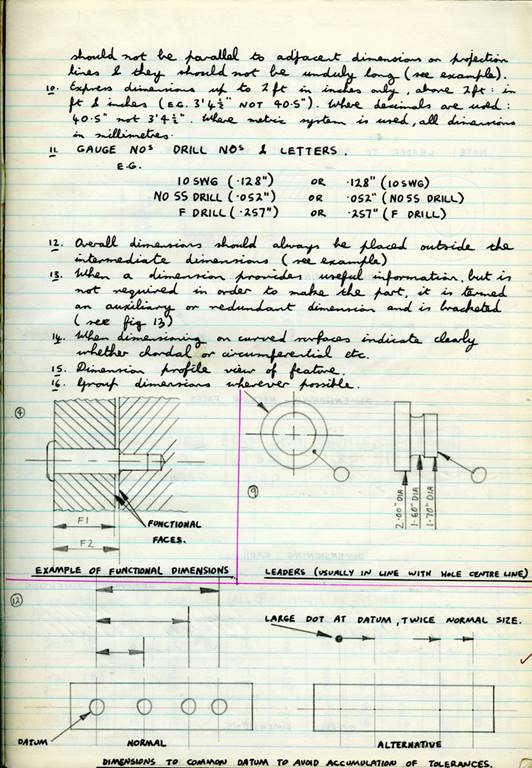

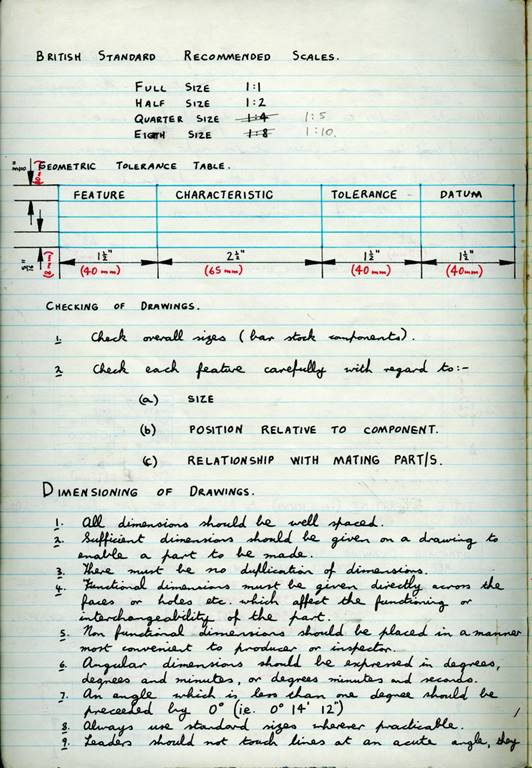

| 1 | 9 Layout of Drawings |

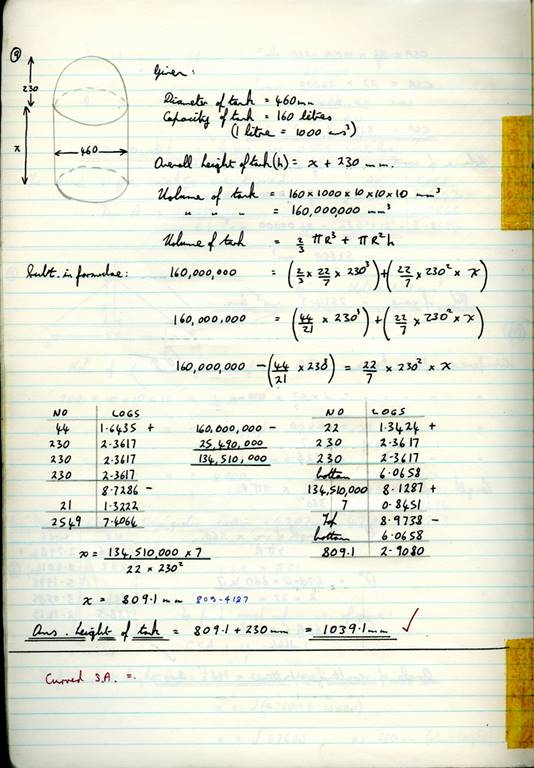

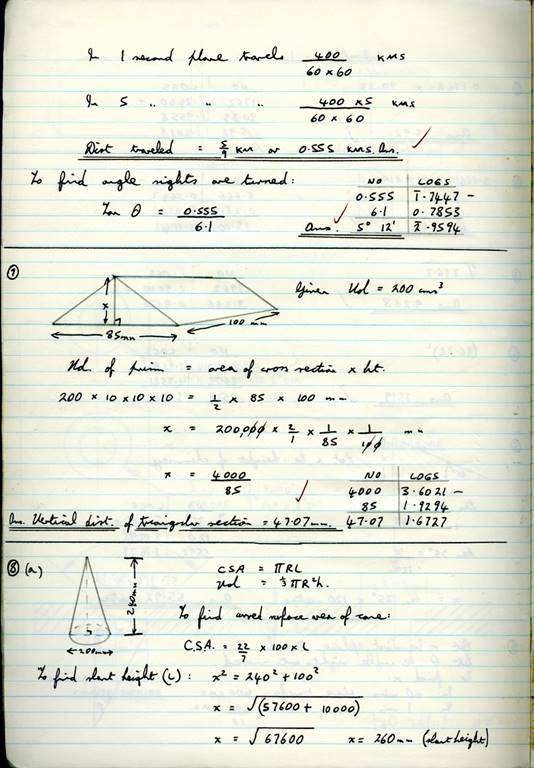

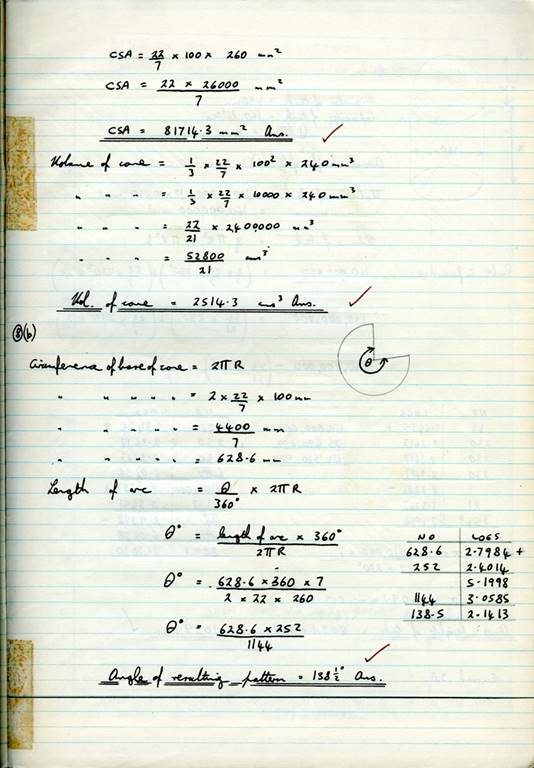

| 9 | Calculations |

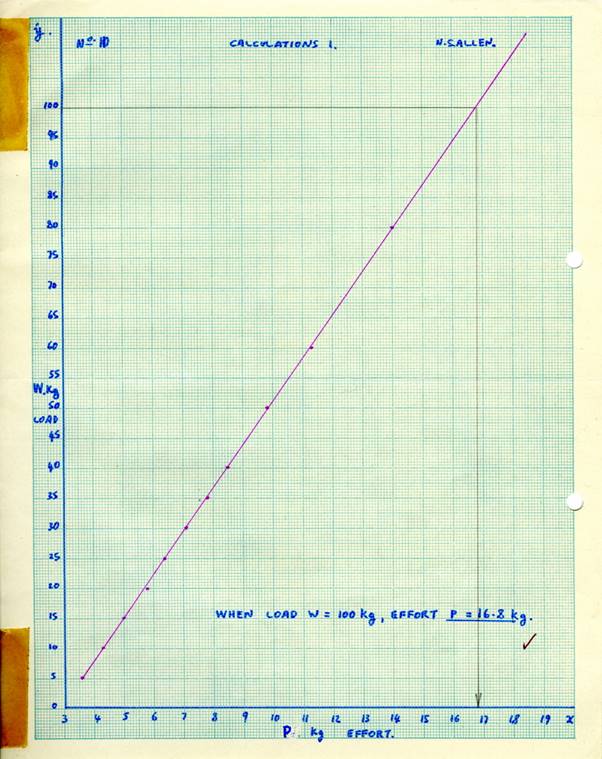

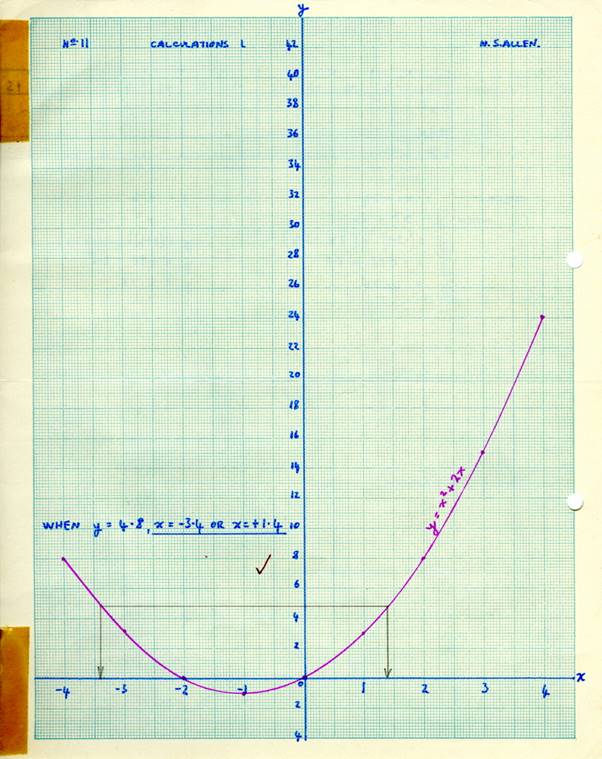

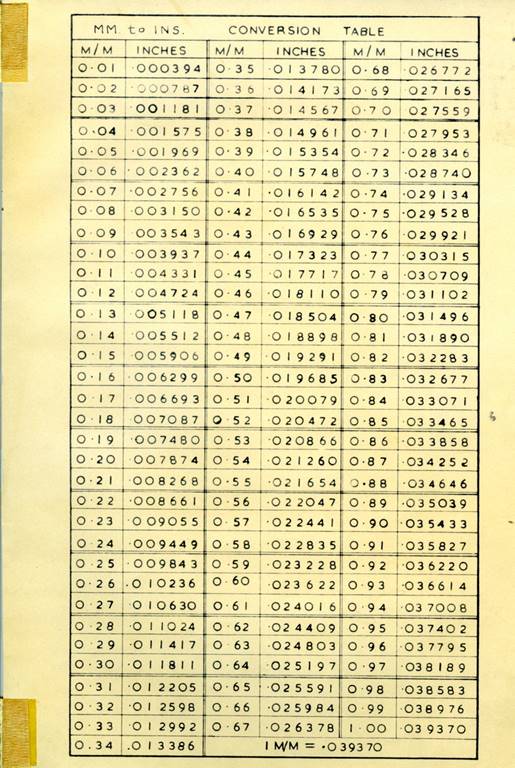

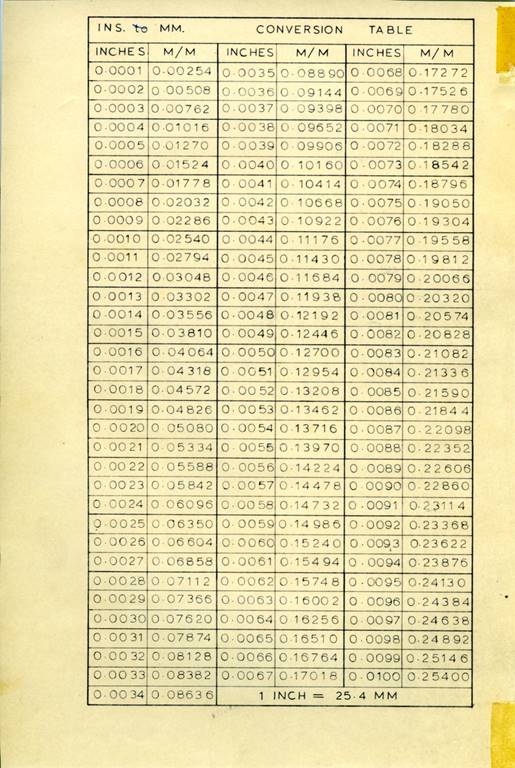

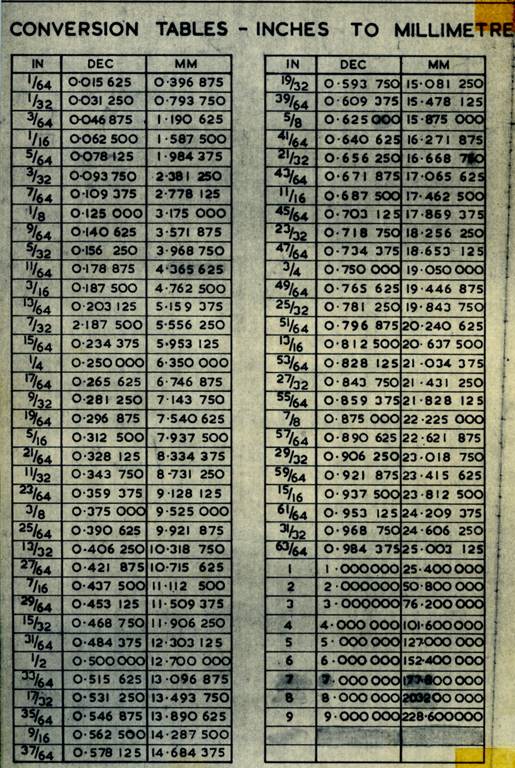

| 13 | Graphs & Conversion Tables |

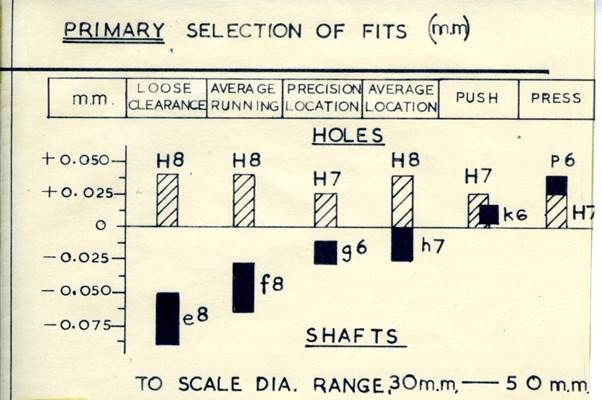

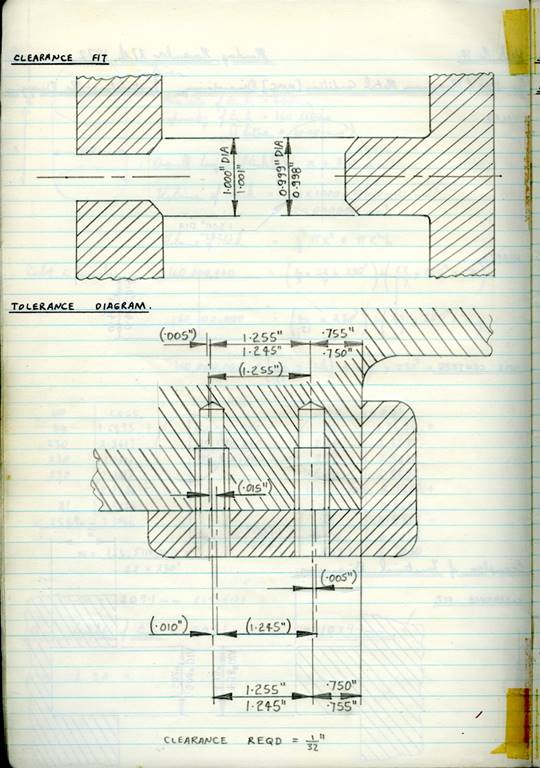

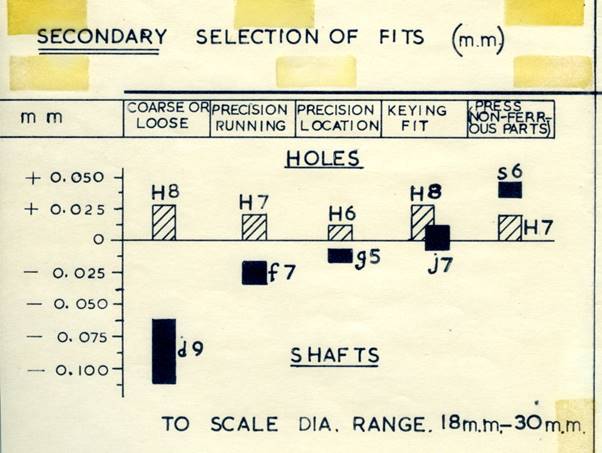

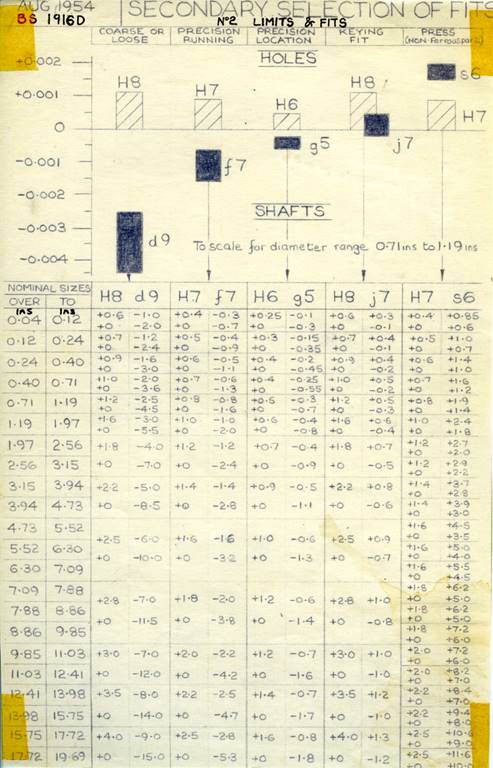

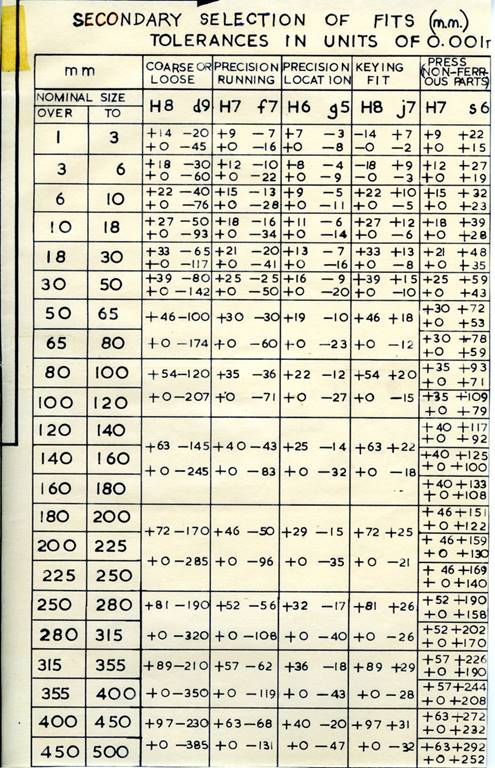

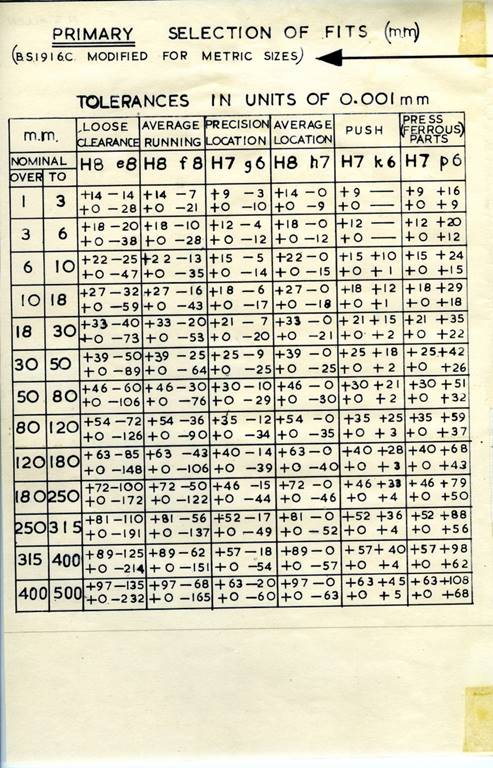

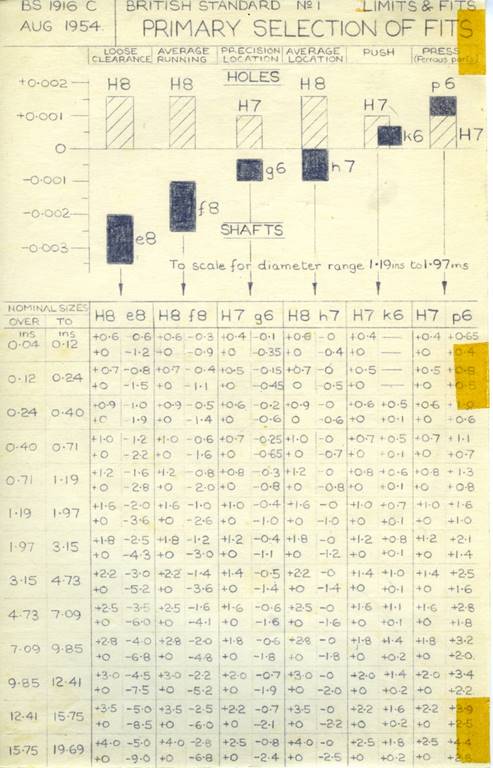

| 16 | Fits & Tolerances |

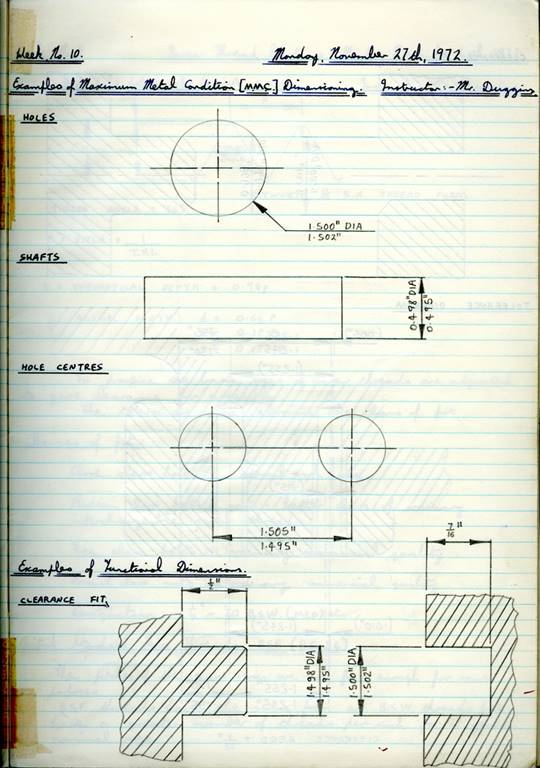

| 25 | 10 Maximum Metal Condition |

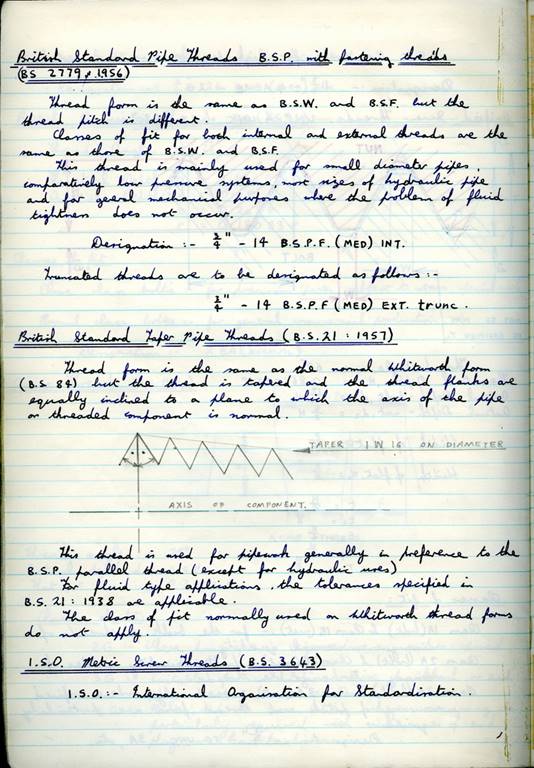

| 27 | British Standard Pipe Threads BS 2779 |

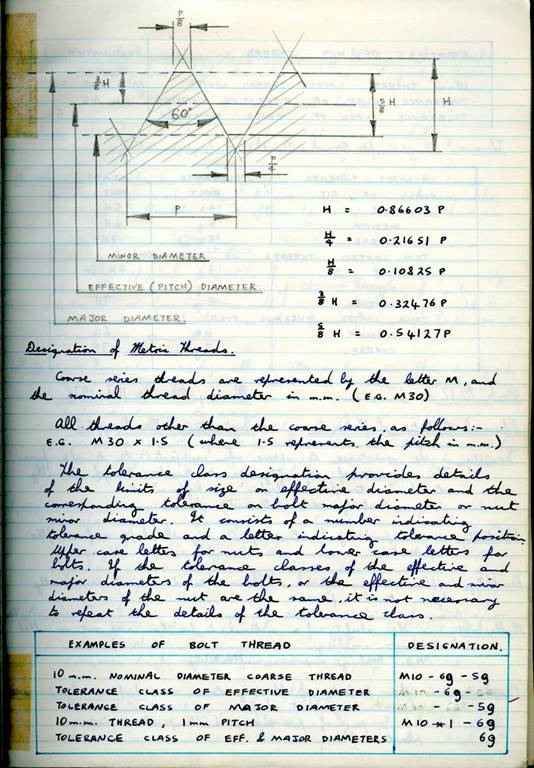

| 27 | ISO Metric Thread BS 3643 |

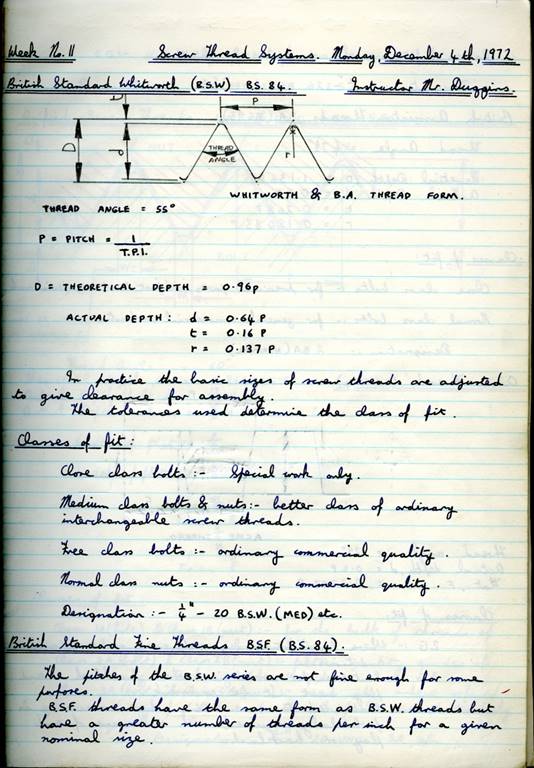

| 29 | 11 BS Whitworth Thread BS 84 |

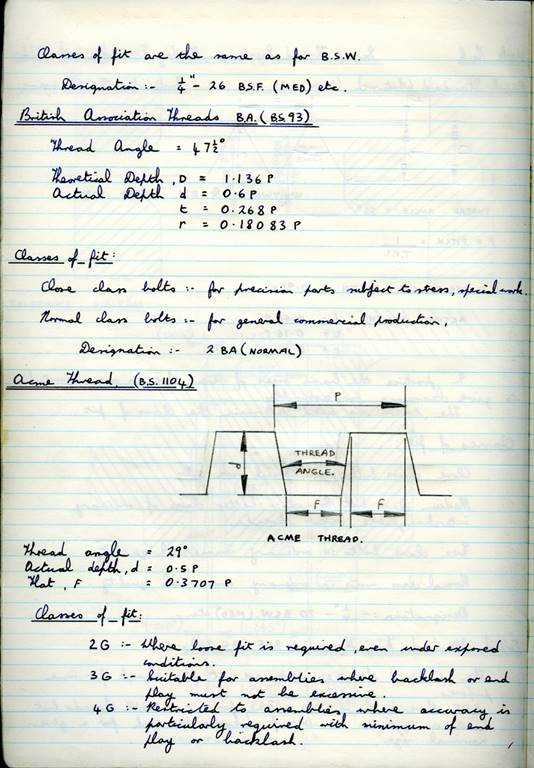

| 30 | Fine, BA & ACME thread |

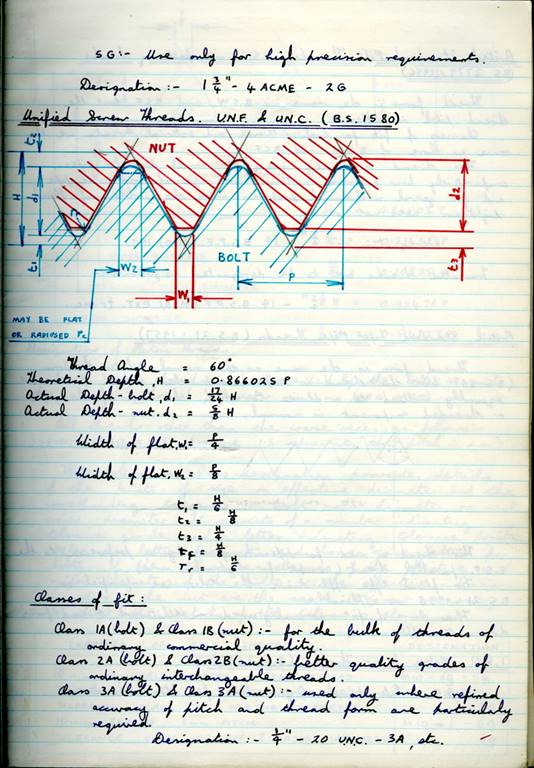

| 31 | UNF & UNC Thread |

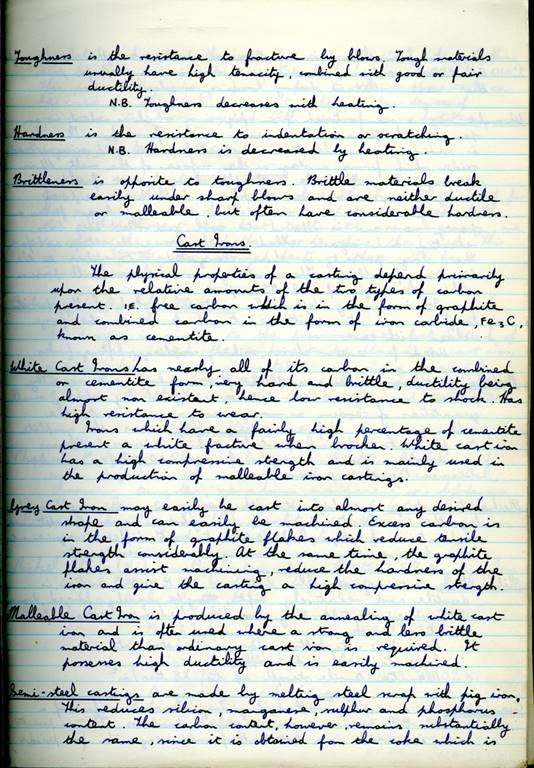

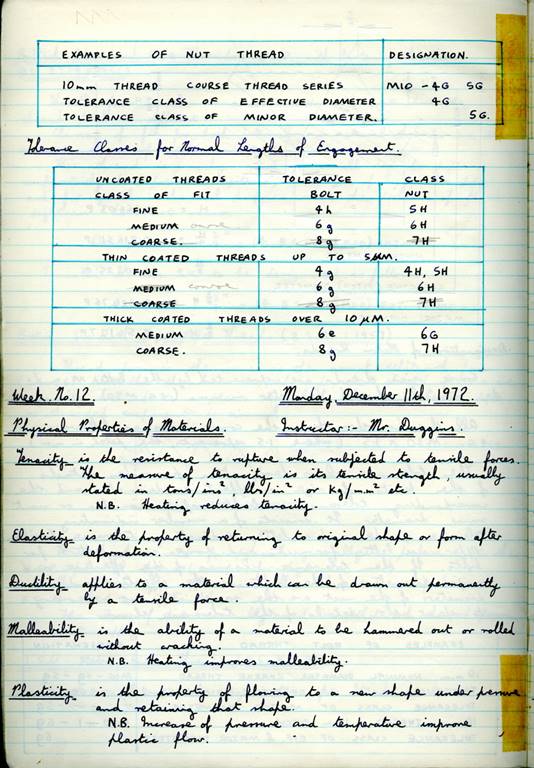

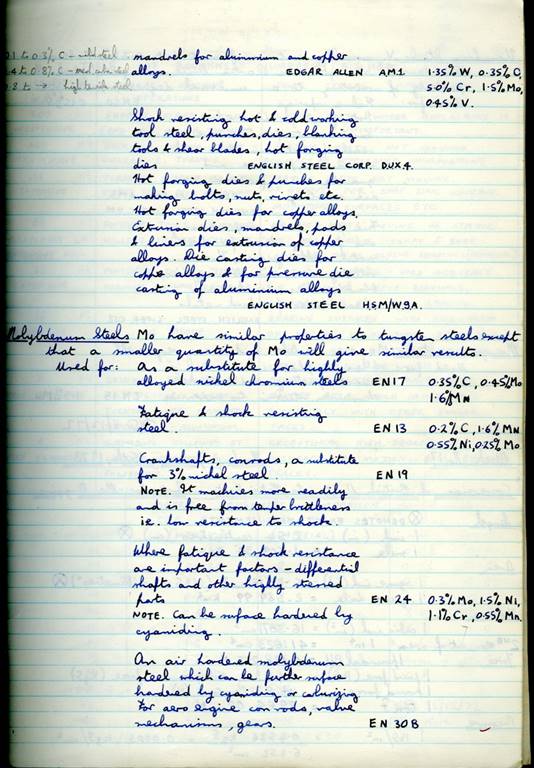

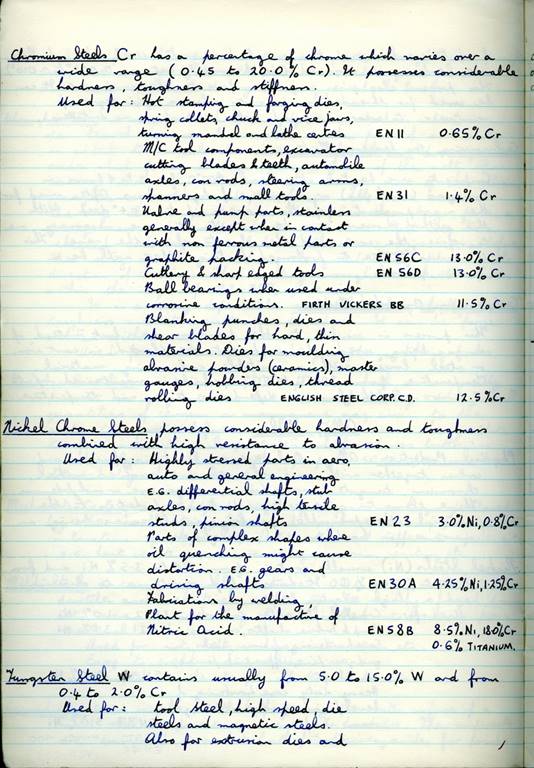

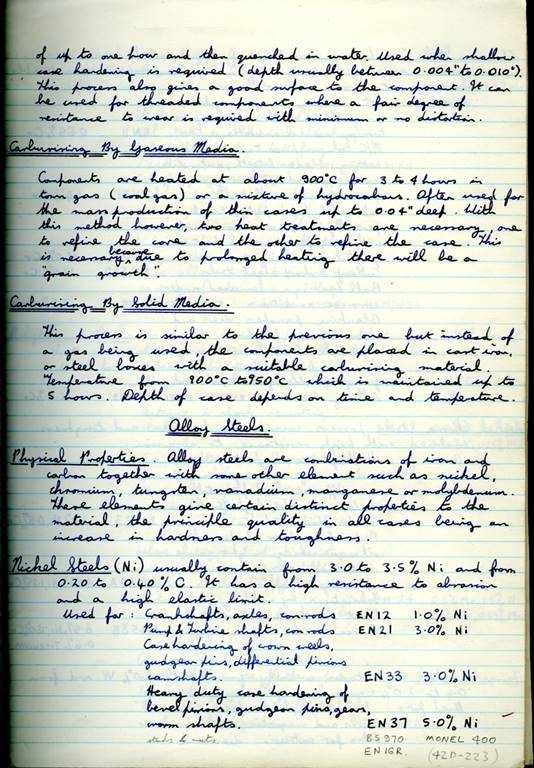

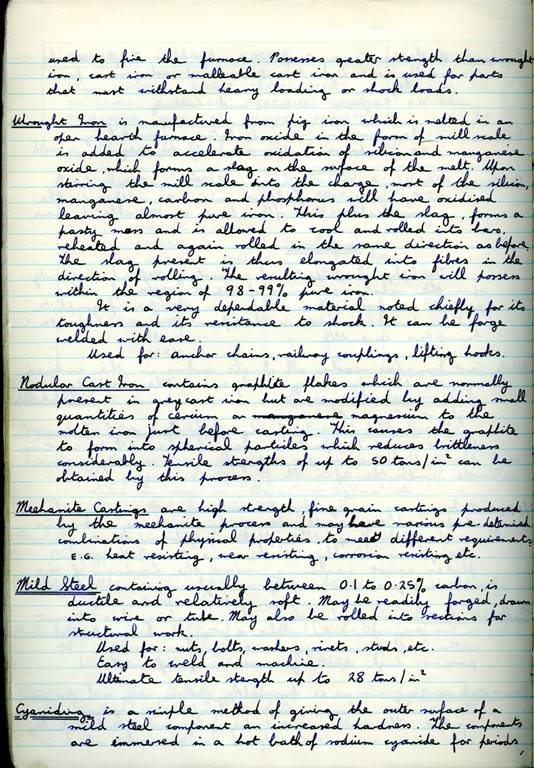

| 32 | 12 Physical Properties of Metals |

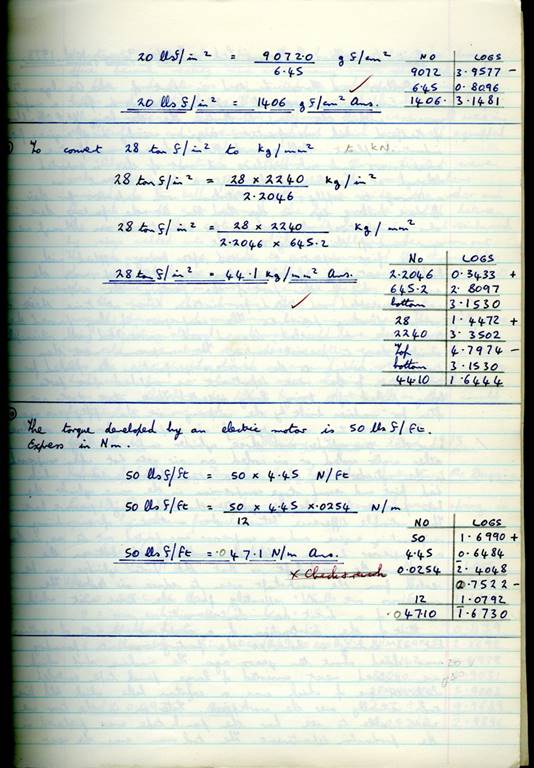

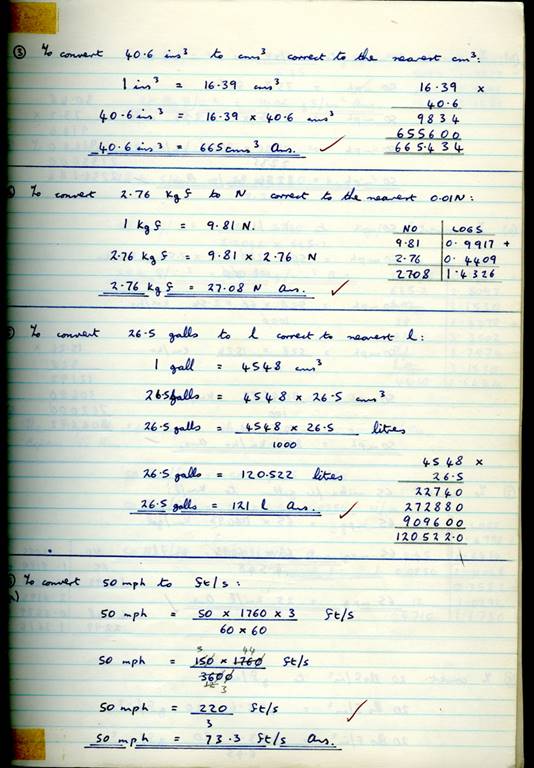

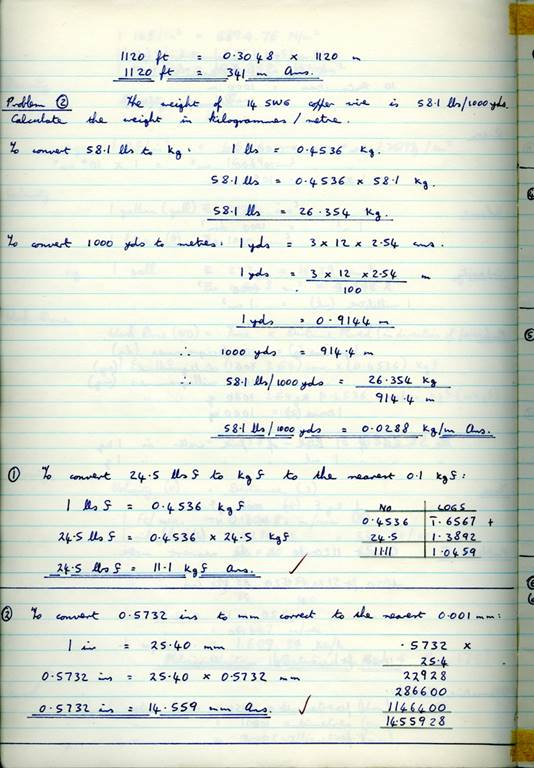

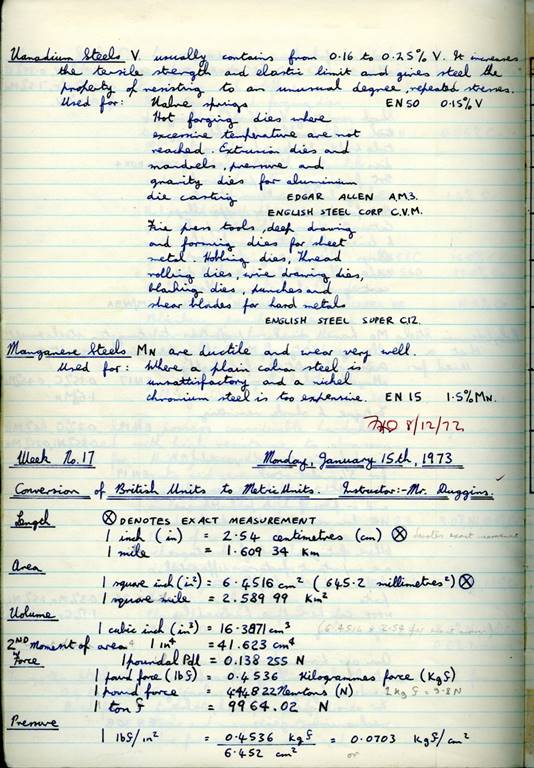

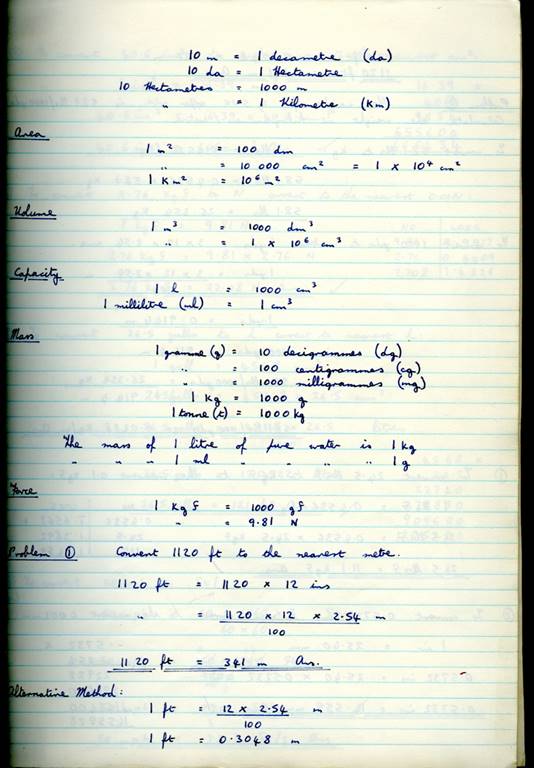

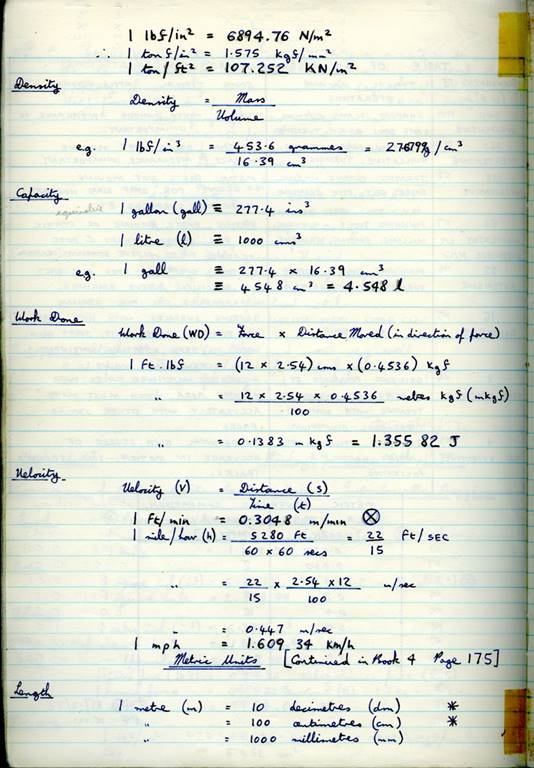

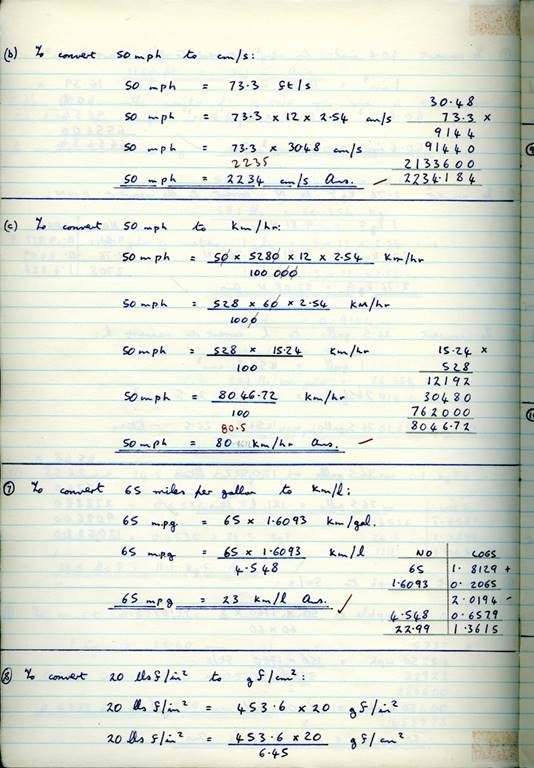

| 38 | 17 Converting Imperial to Metric Units |

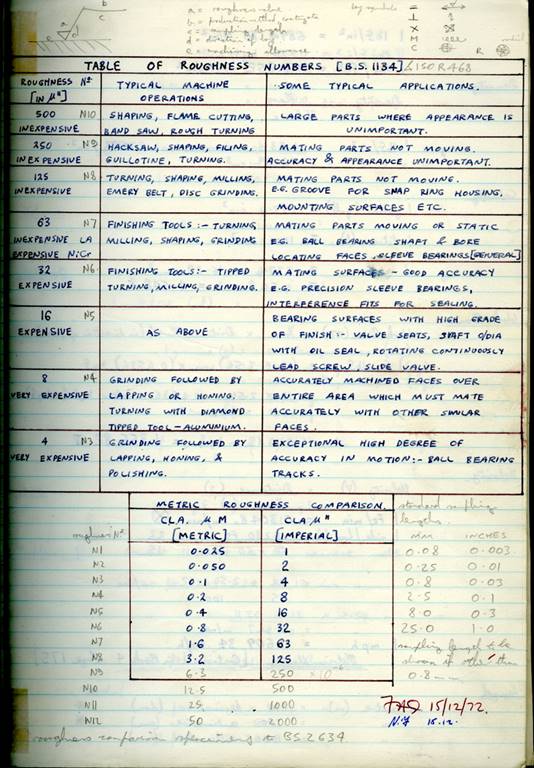

| 40 | Table of Roughness Numbers BS 1134 & ISO R468 |
| 41 | Converting Imperial to Metric Units Continued |

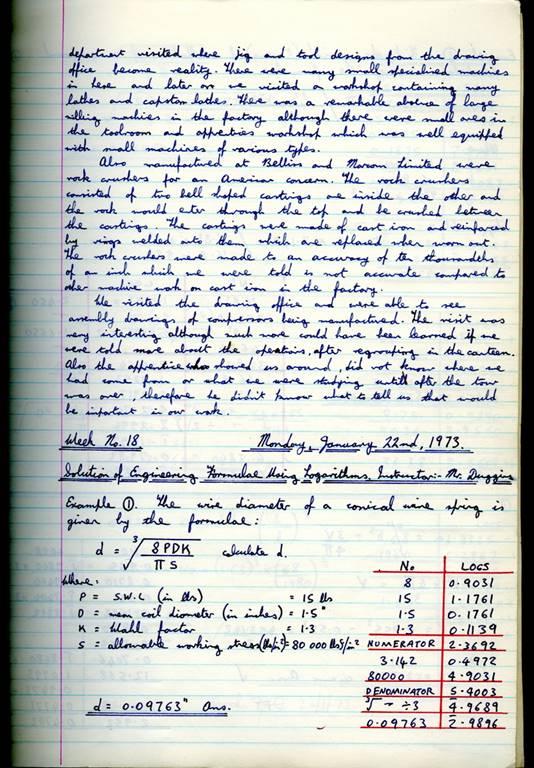

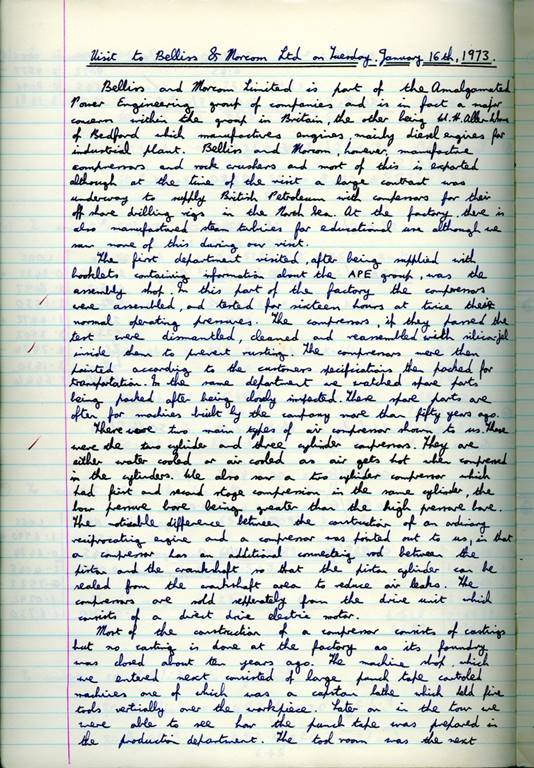

| 46 | Visit to Bellis & Morcom Ltd. Makes Compressors & Rock Crushers |

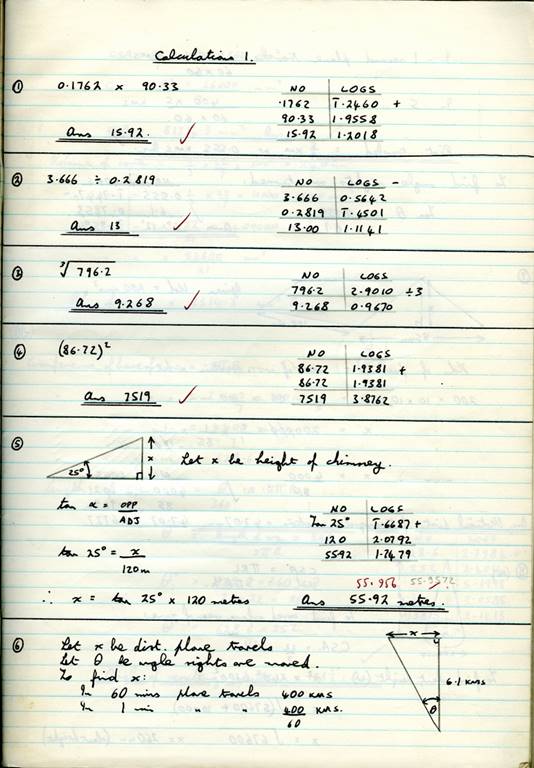

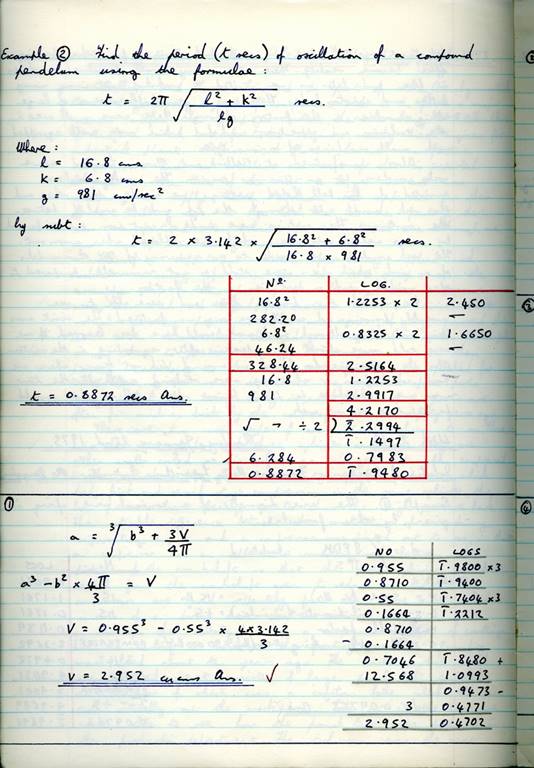

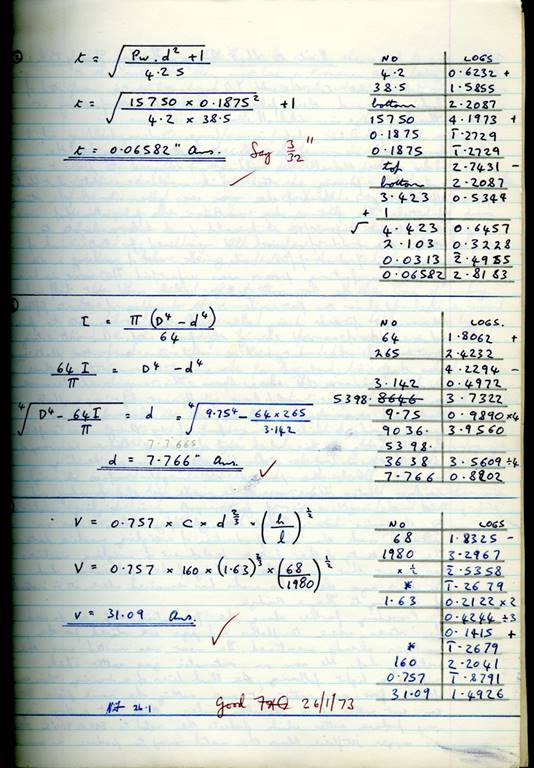

| 47 | 18 Calculations Using Logarithms |

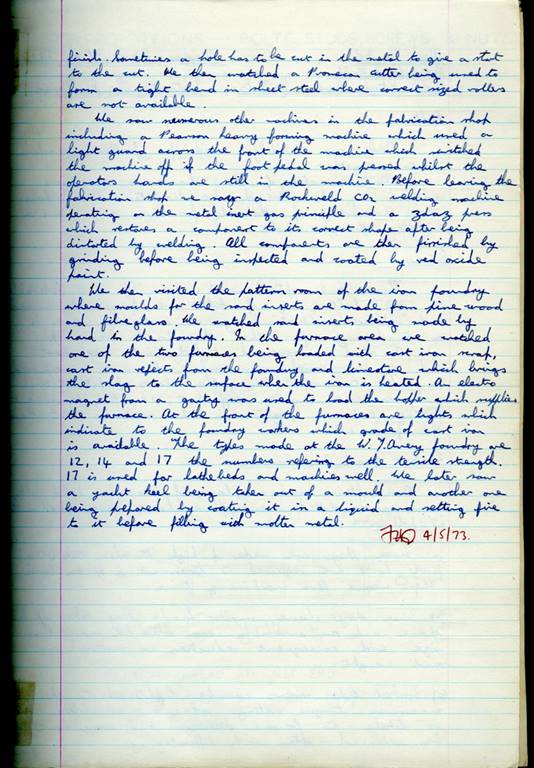

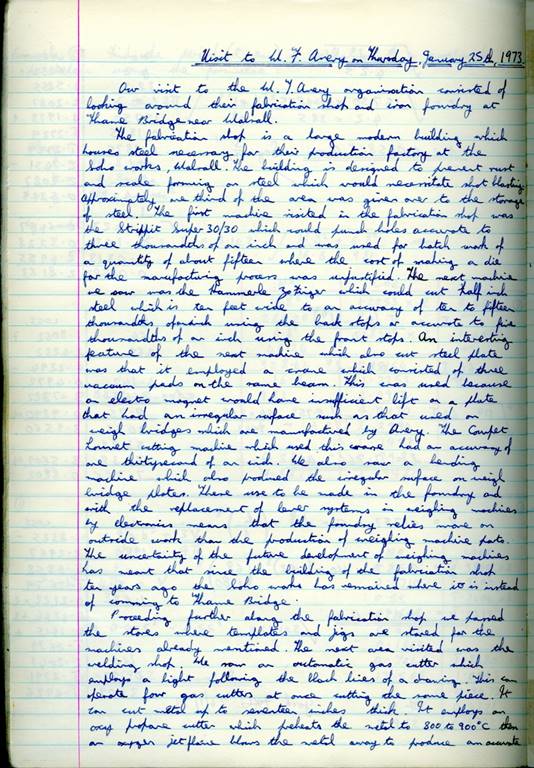

| 50 | Visit to WF Avery Ltd. Makes Weigh Bridges |

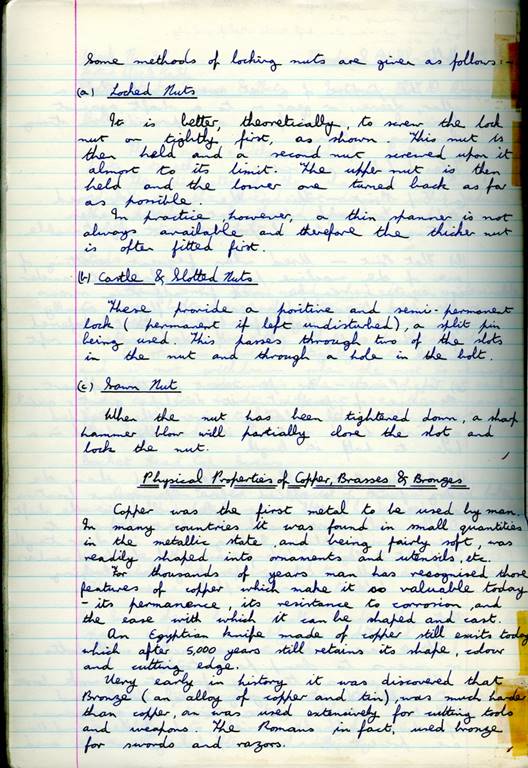

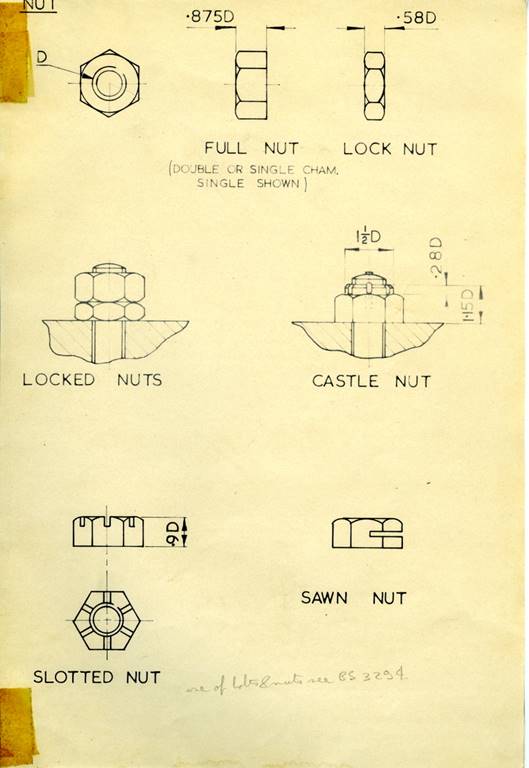

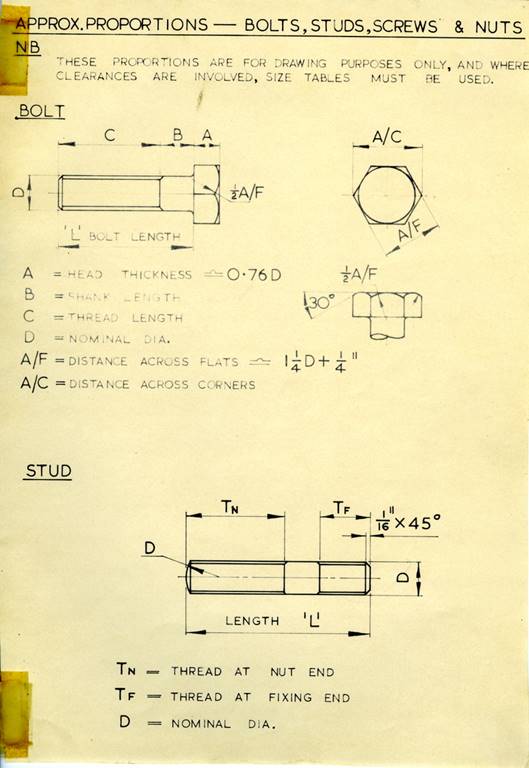

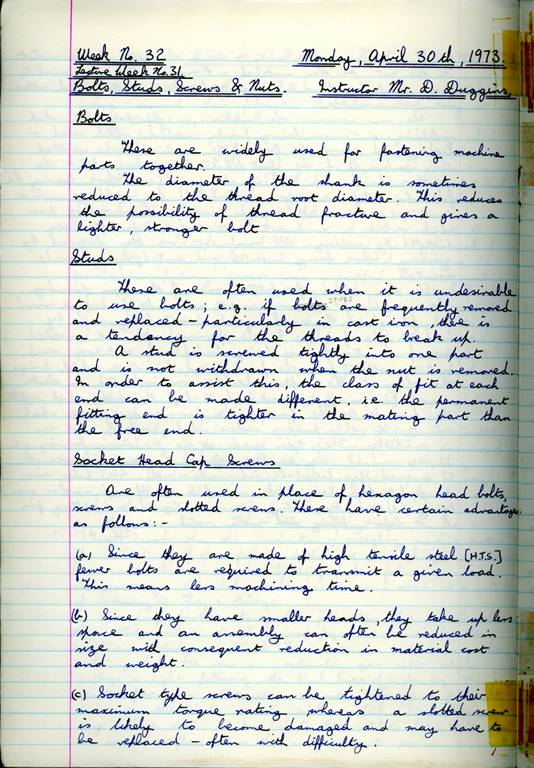

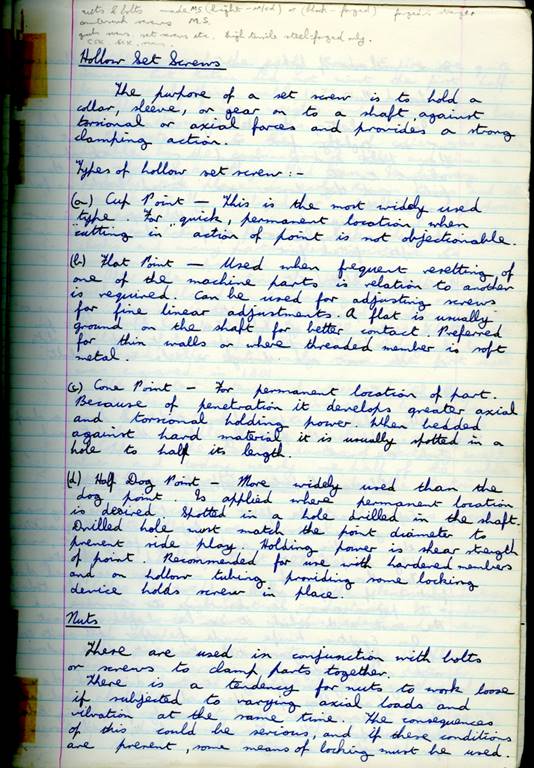

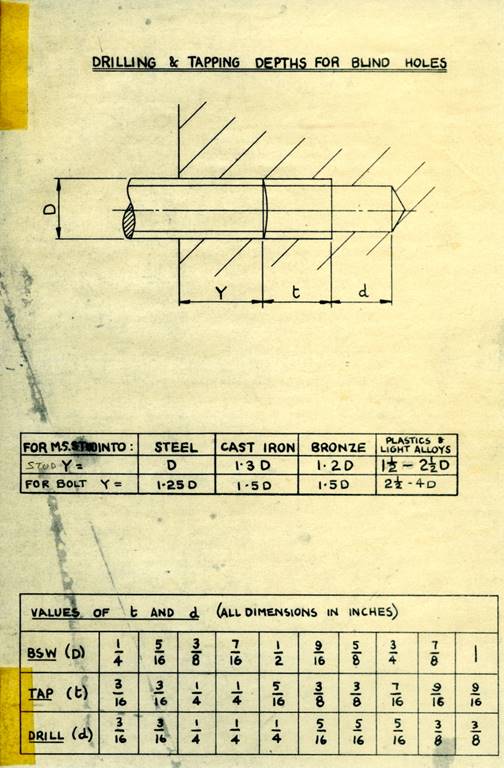

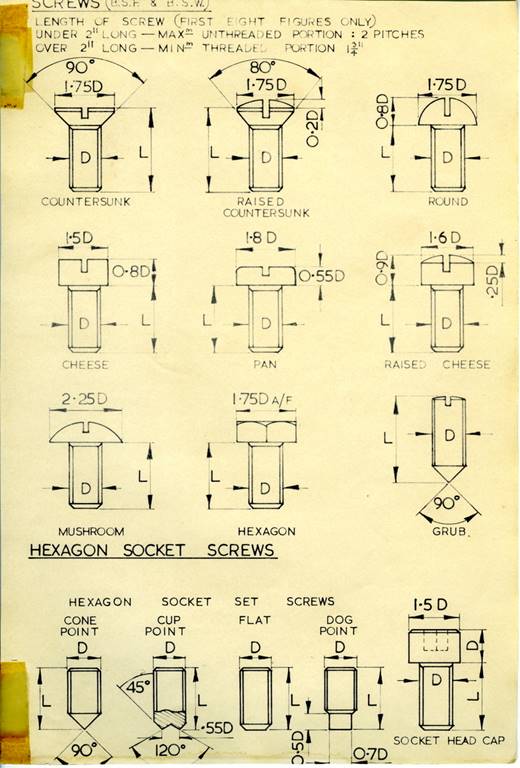

| 52 | 32 Bolts, Studs, Screws & Nuts |

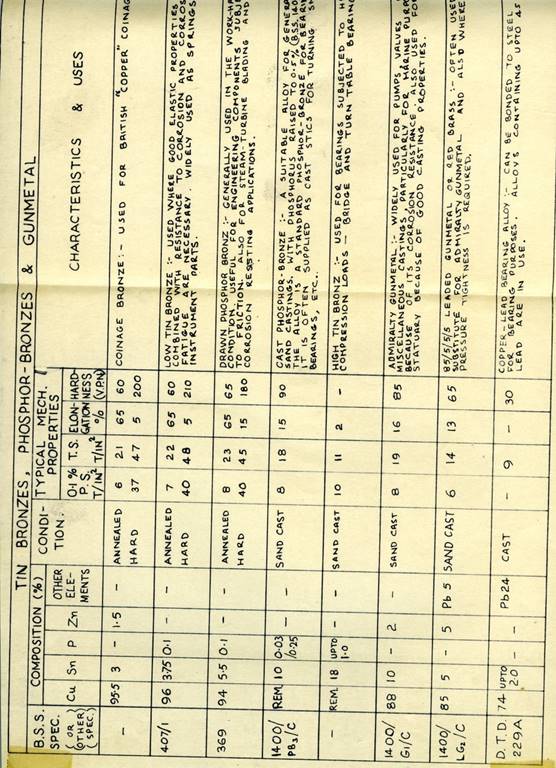

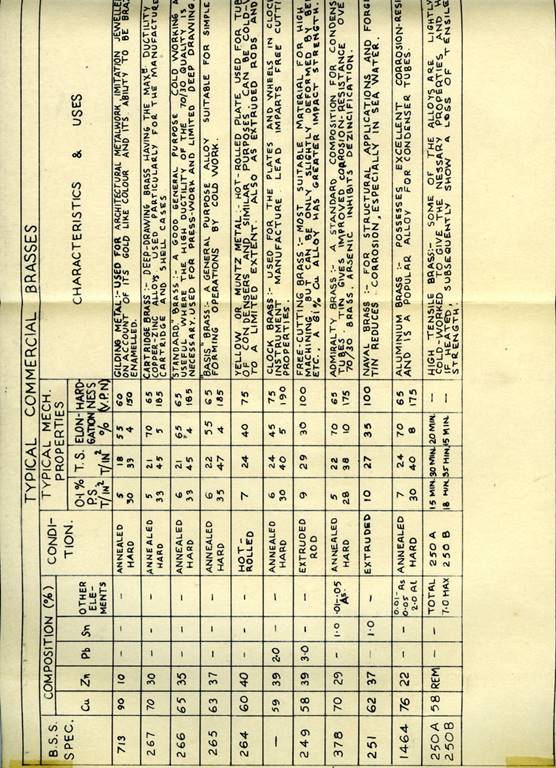

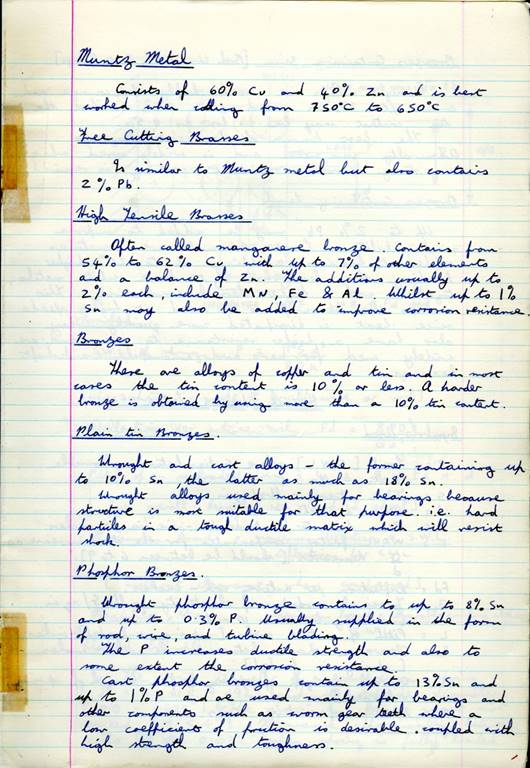

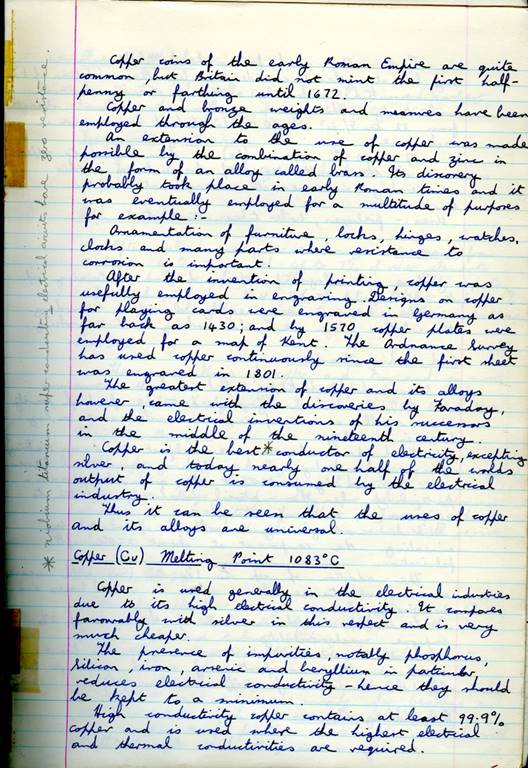

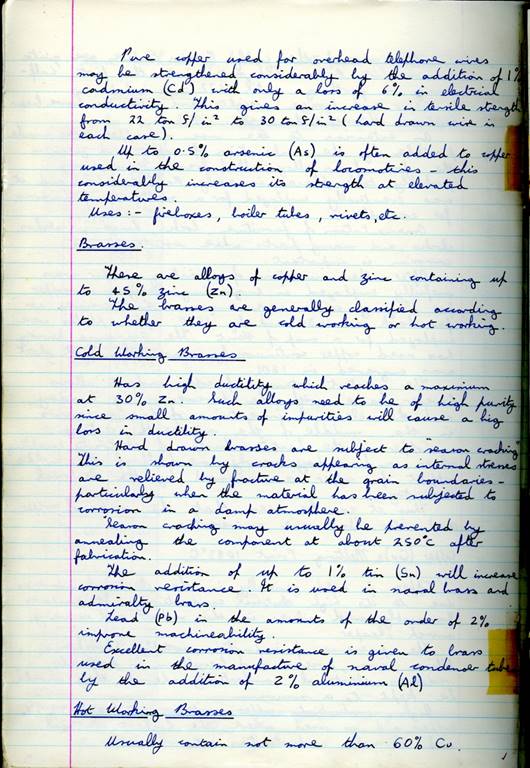

| 57 | Physical Properties of copper, Brass & Bronze |

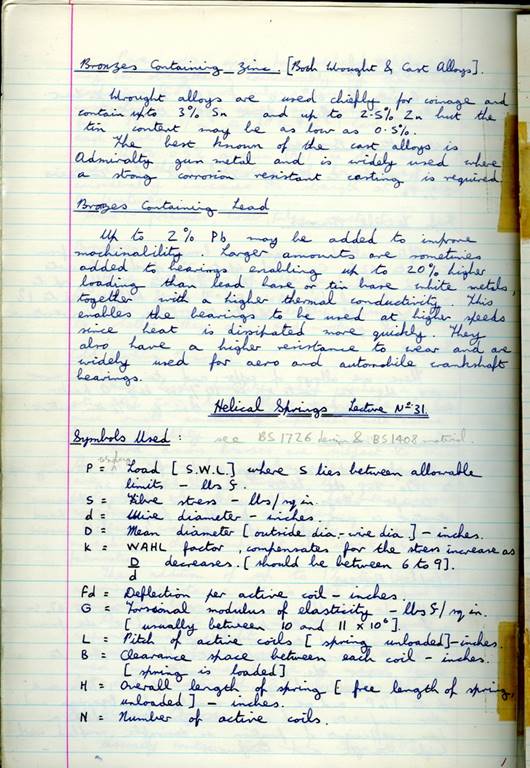

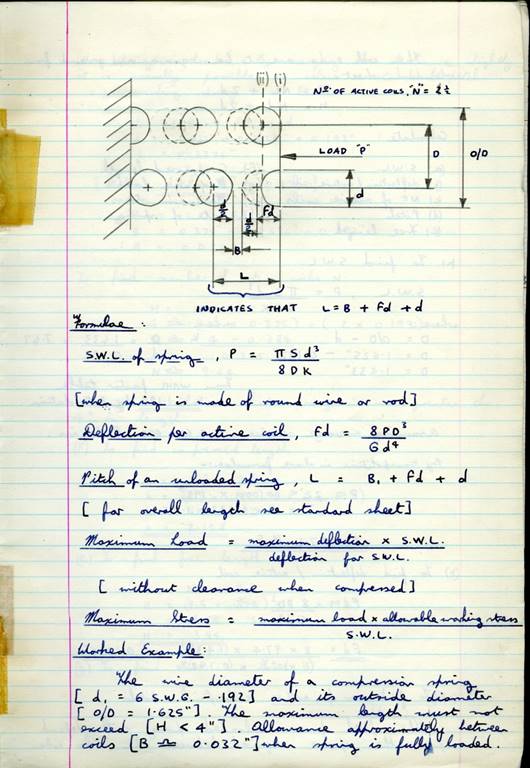

| 63 | Helical Springs |
| 63 | Spring Symbols & Formulae |

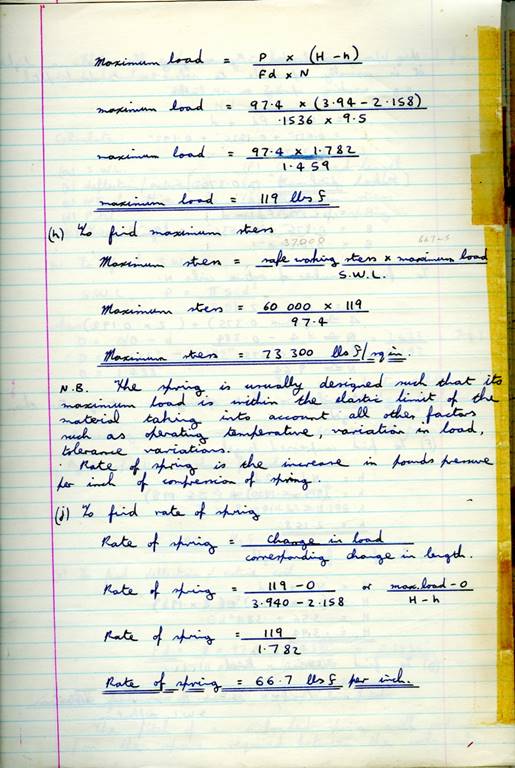

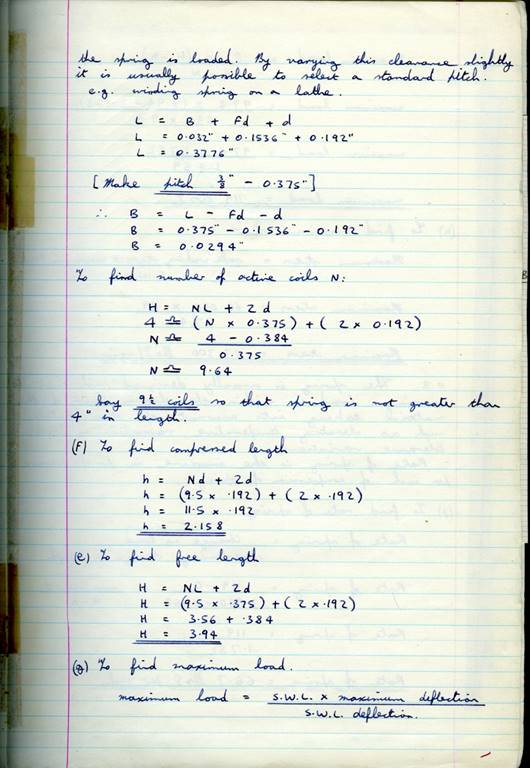

| 64 | Spring Calculations |

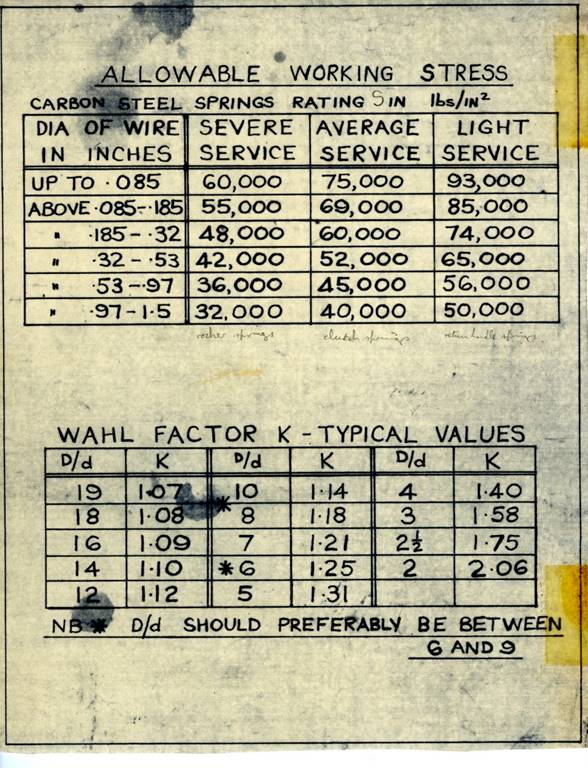

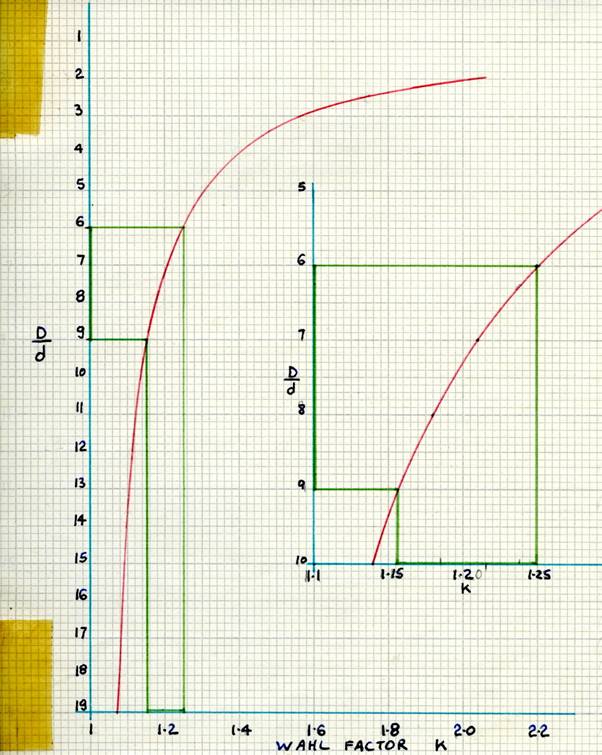

| 67 | Wahl Factor on Graph |

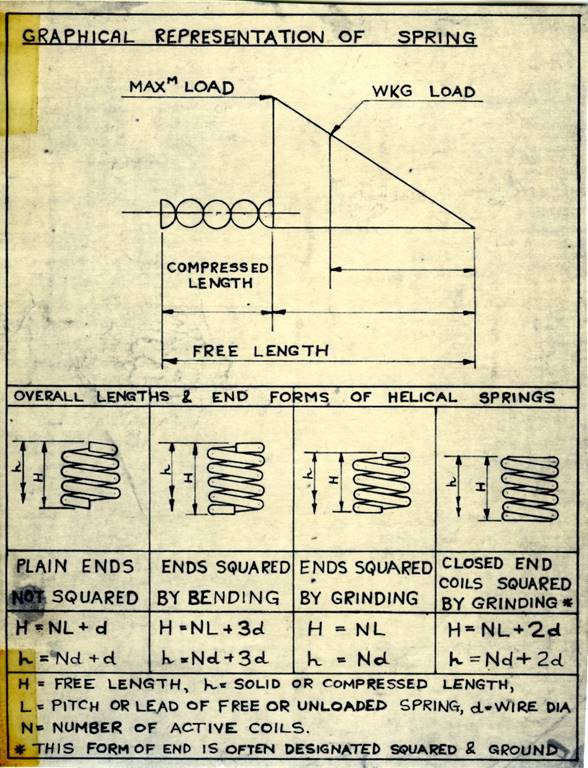

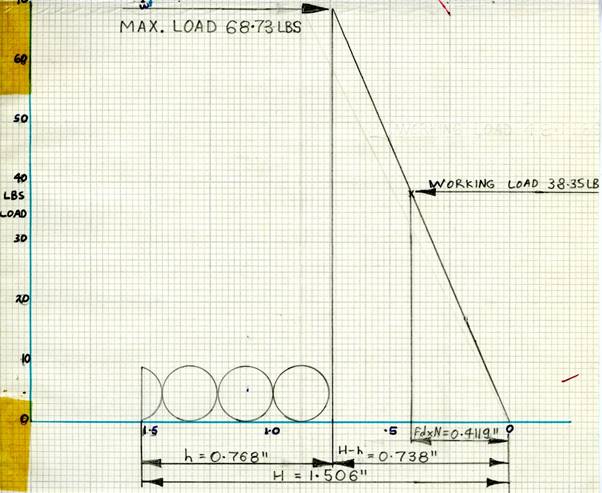

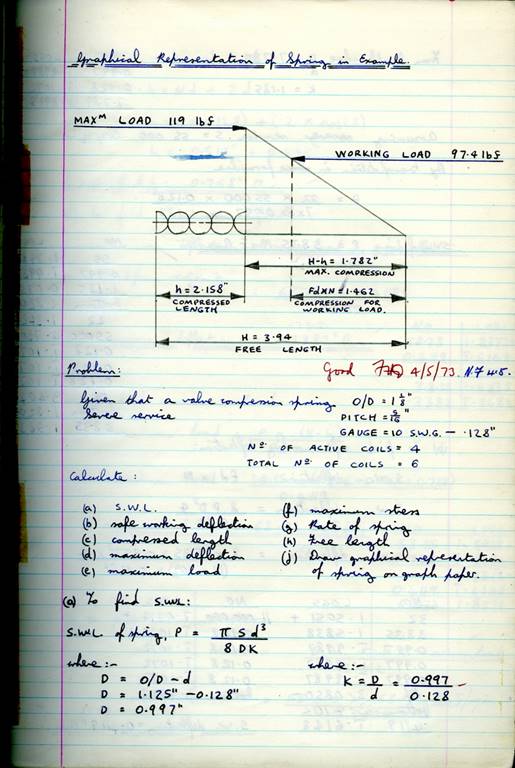

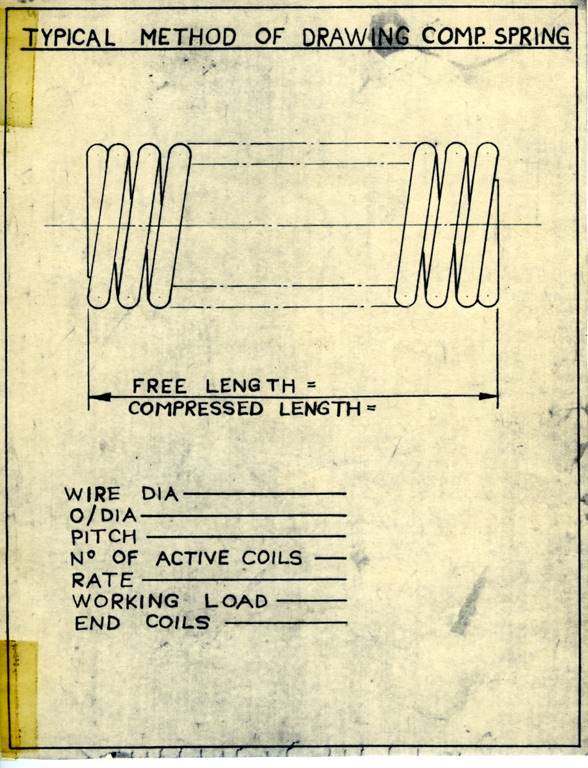

| 69 | Graphical Representation of Spring |

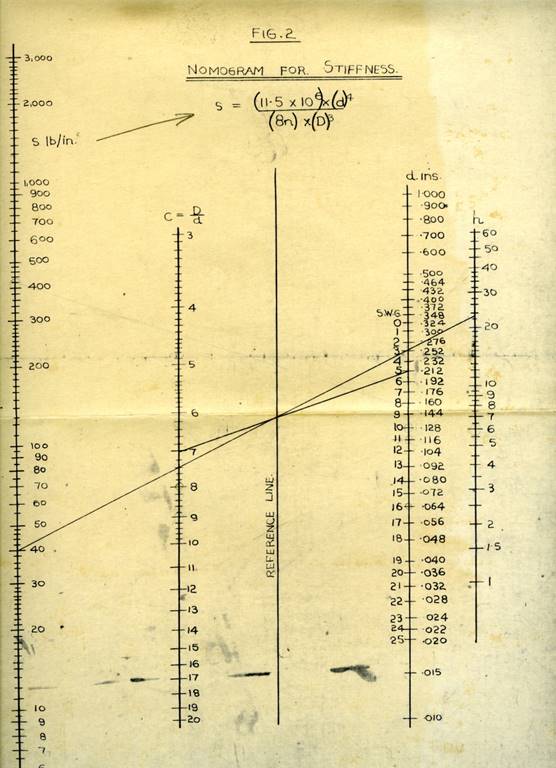

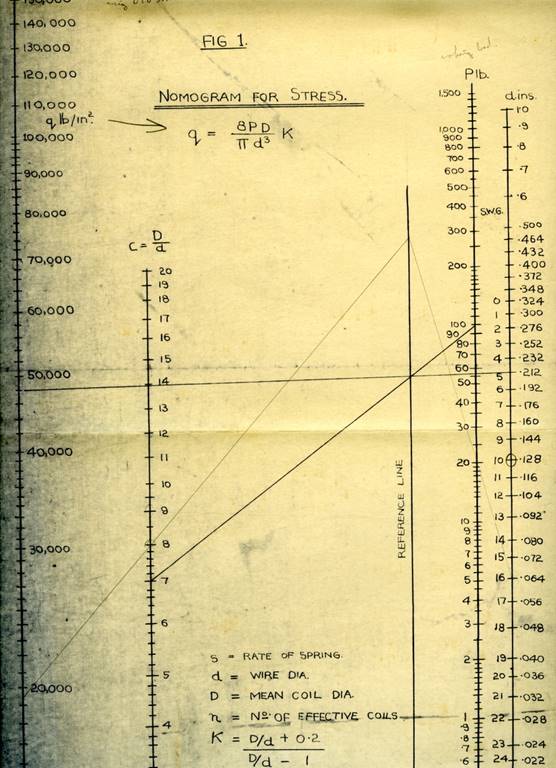

| 72 | Spring Monogram for Stress |

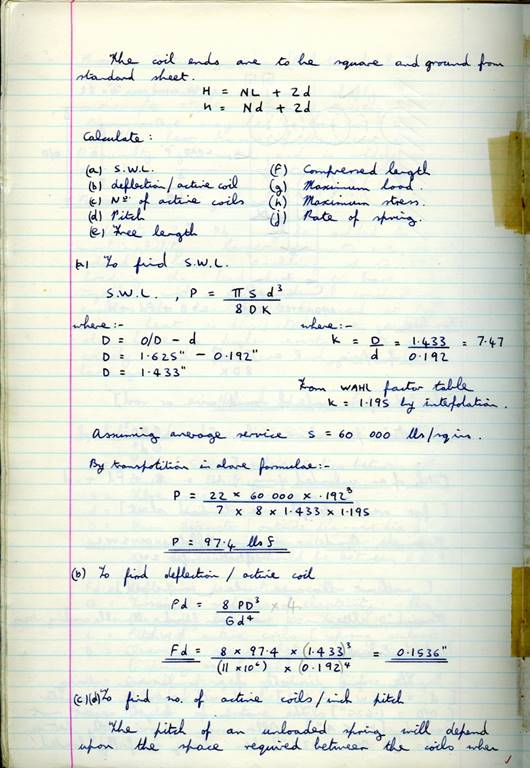

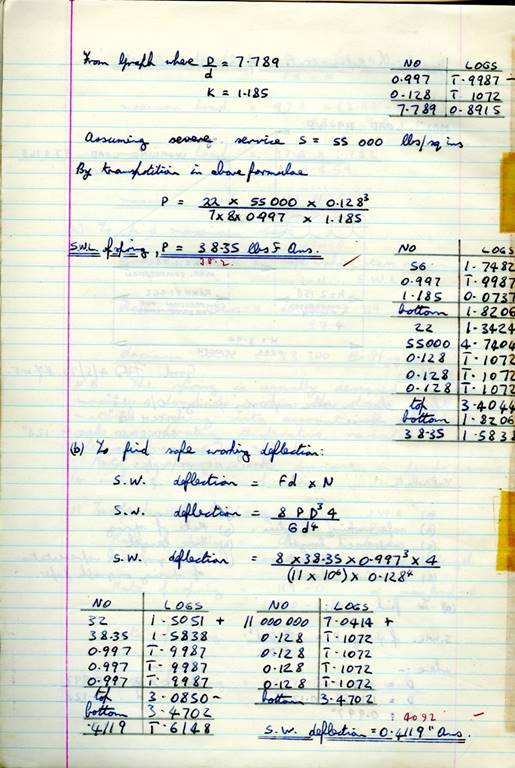

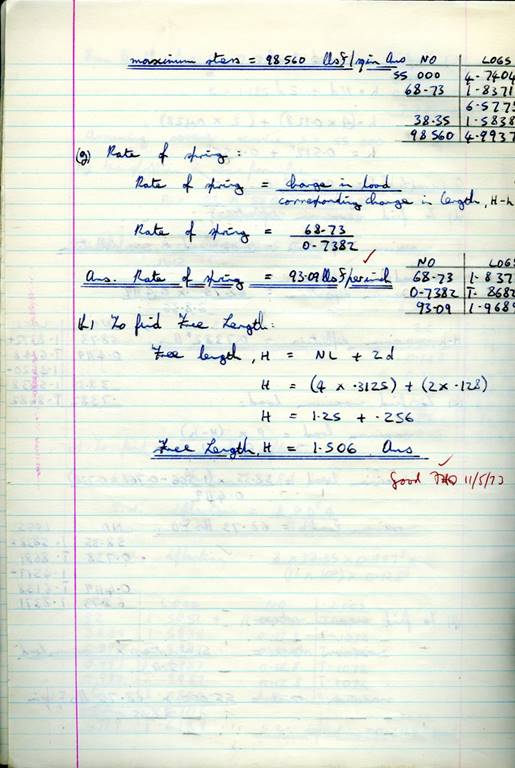

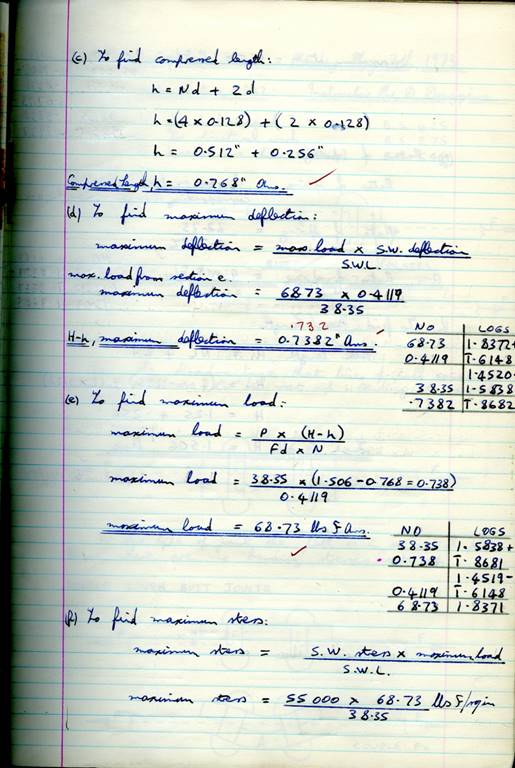

| 74 | Spring Calculations |

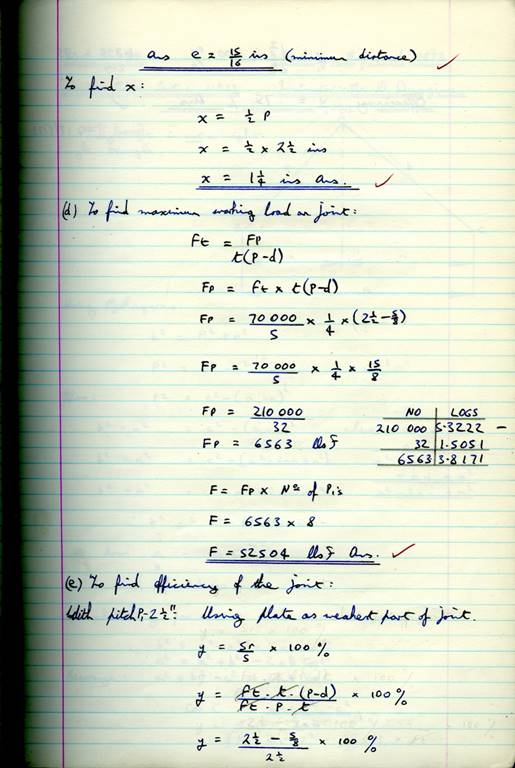

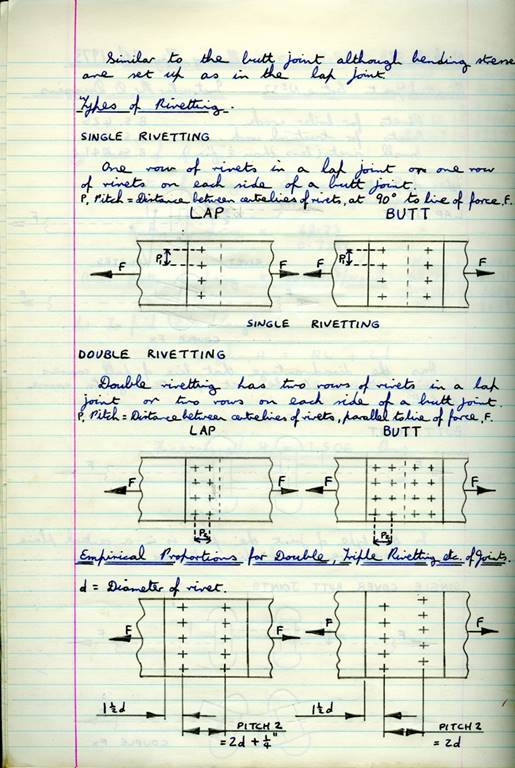

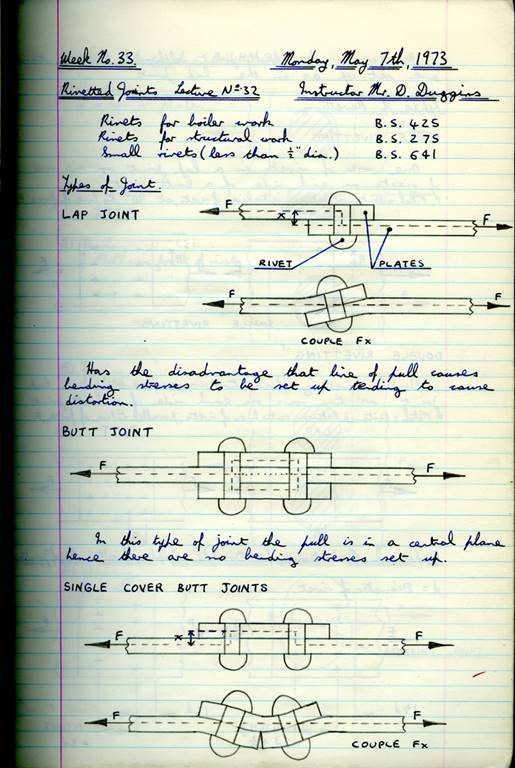

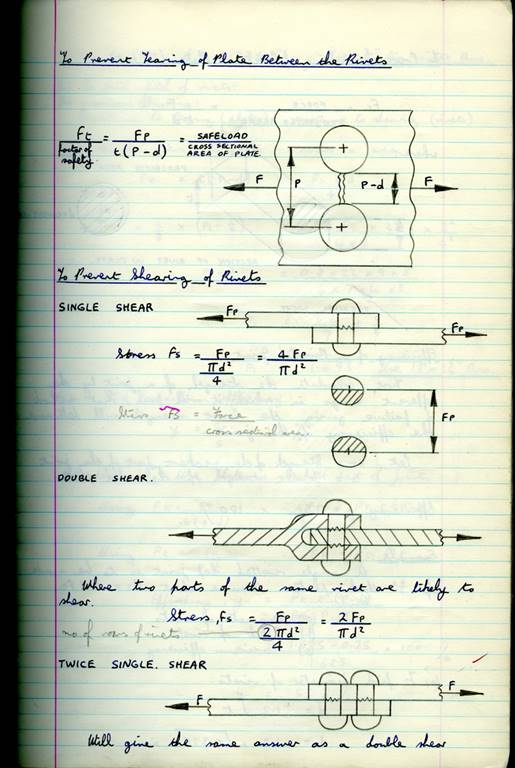

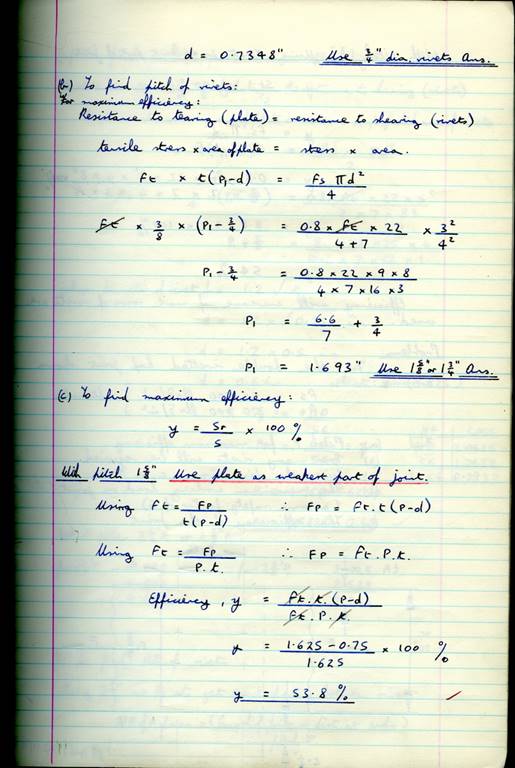

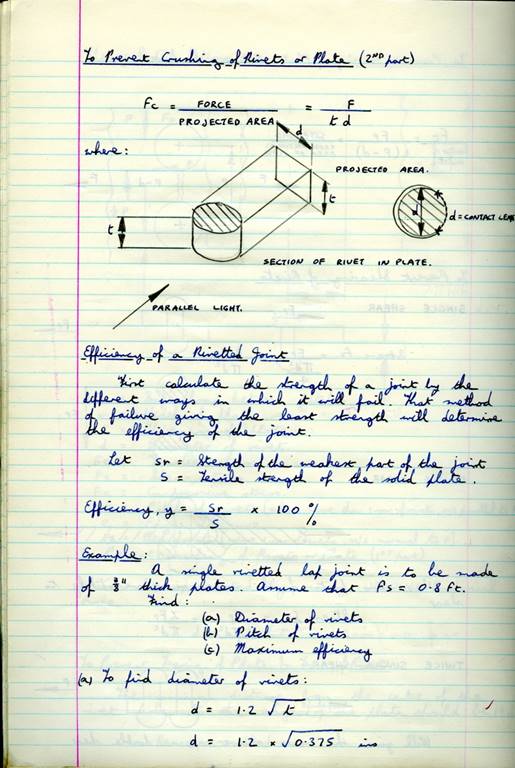

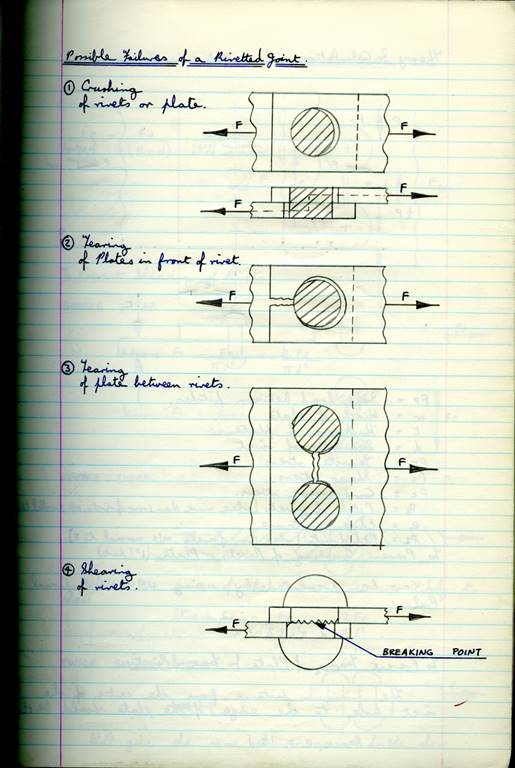

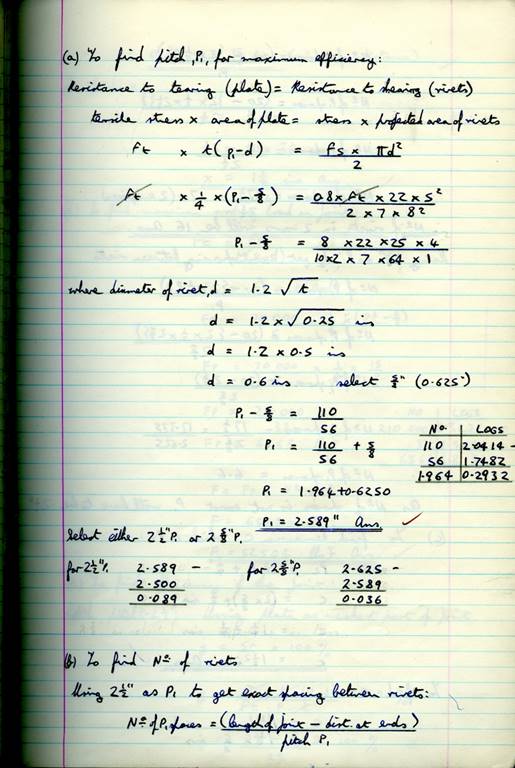

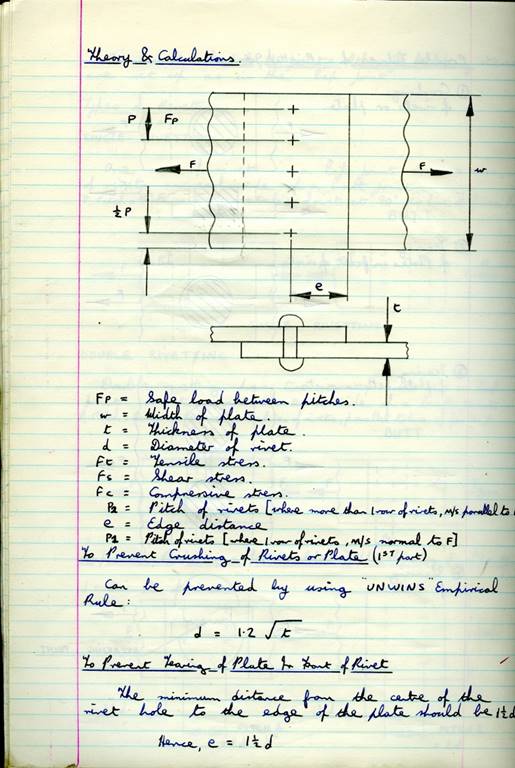

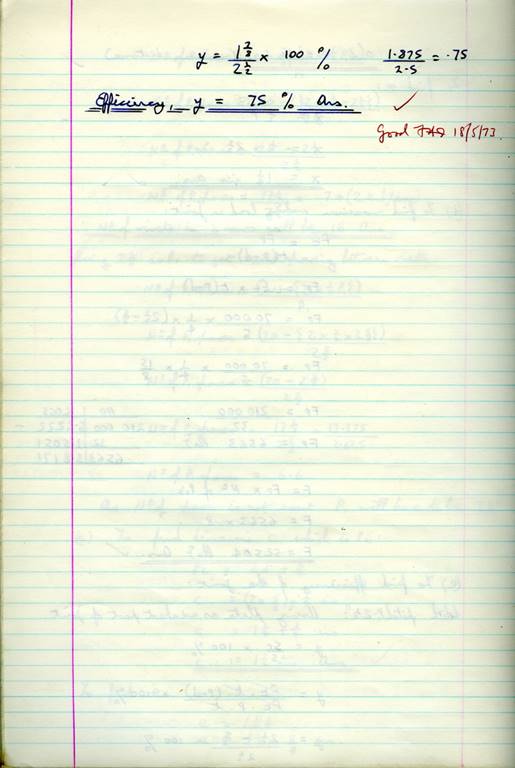

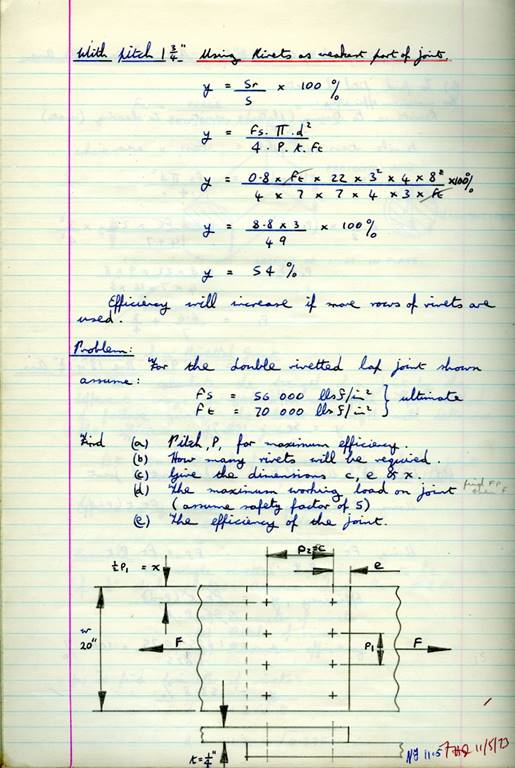

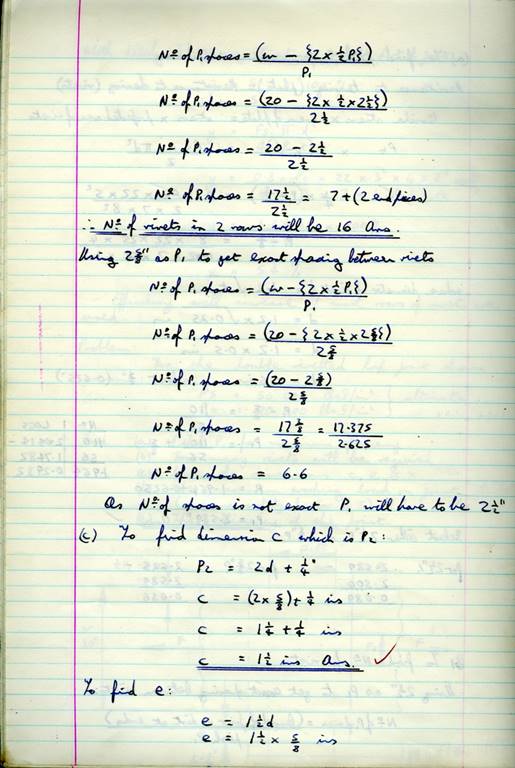

| 79 | 33 Rivetted Joints |

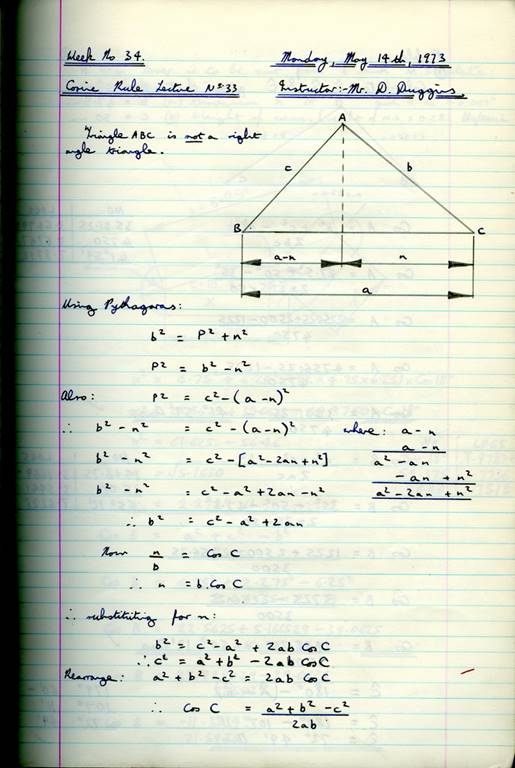

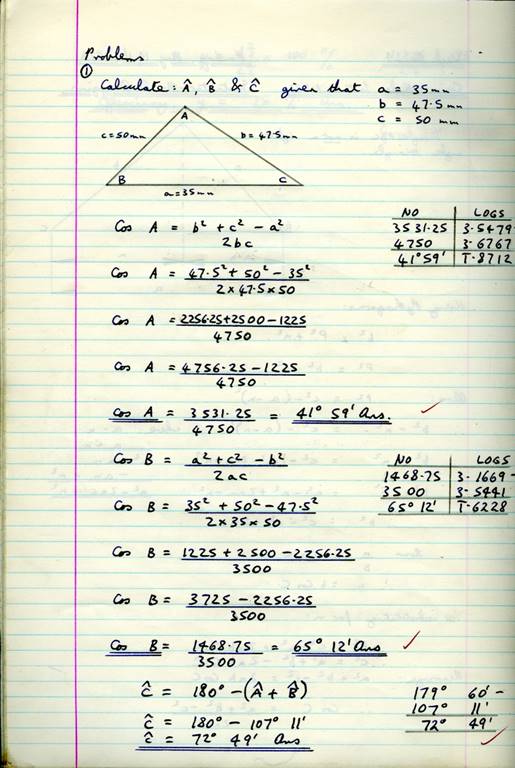

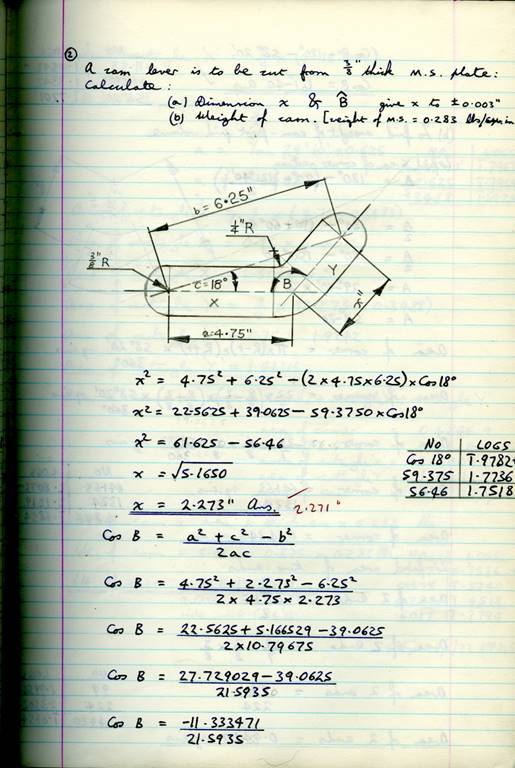

| 91 | 34 Cosine Rule |

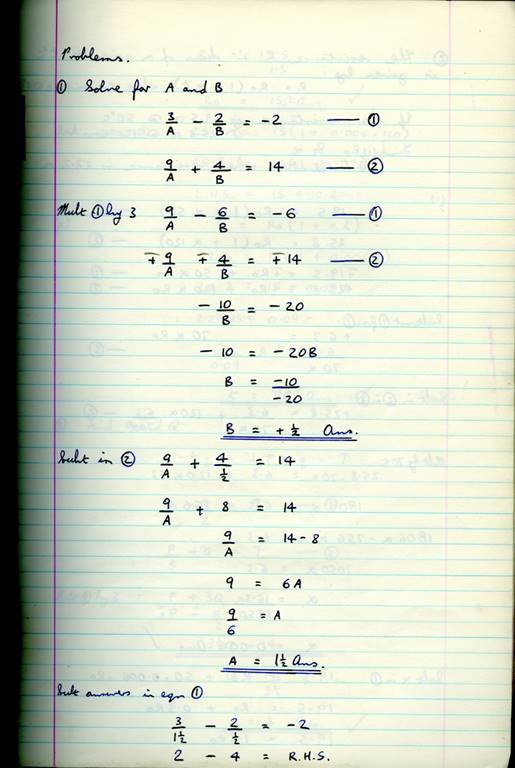

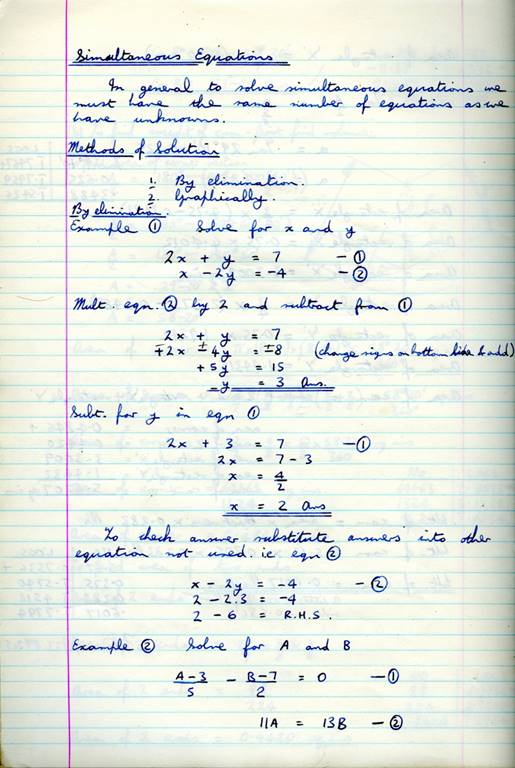

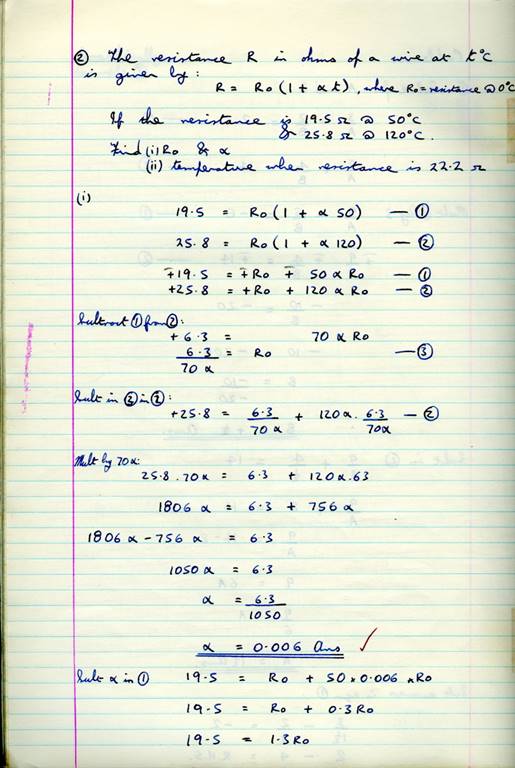

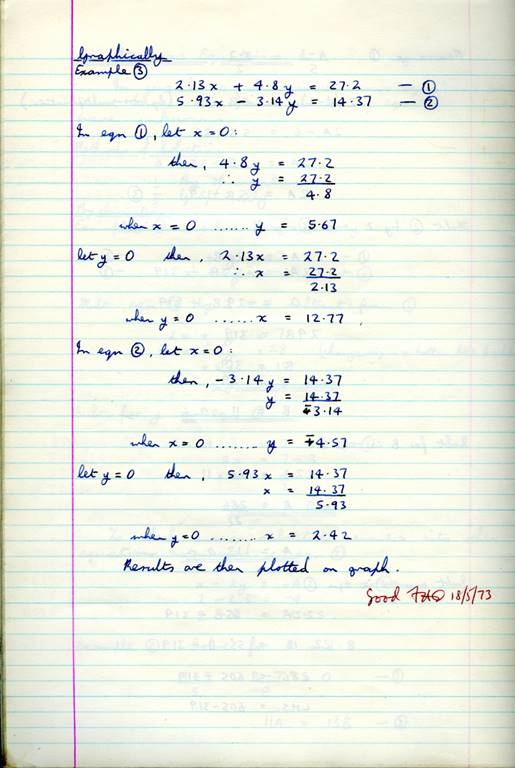

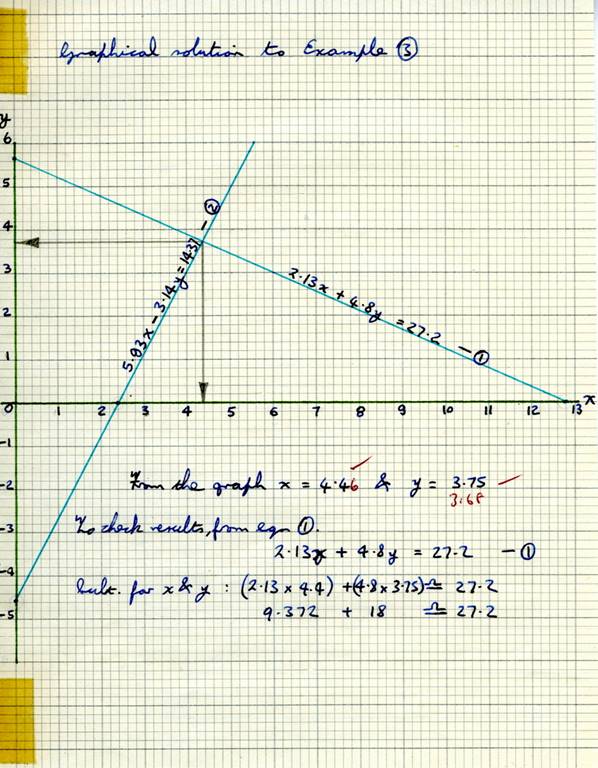

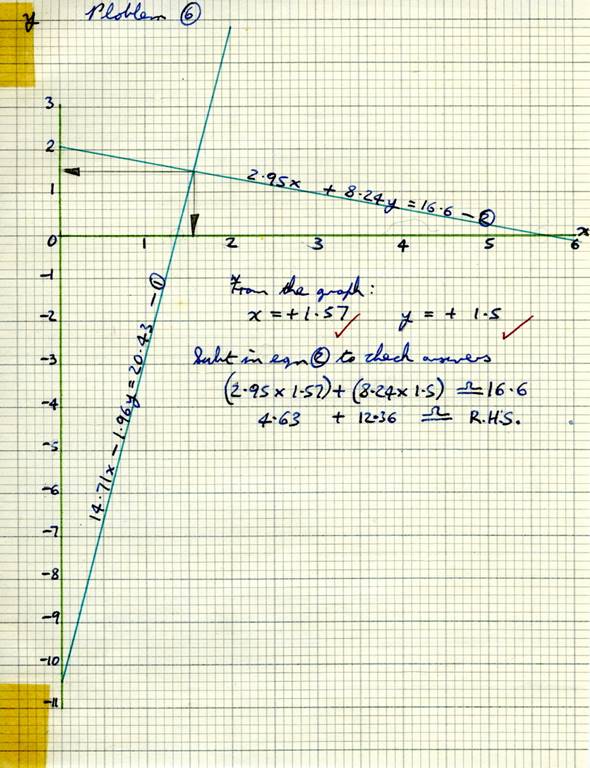

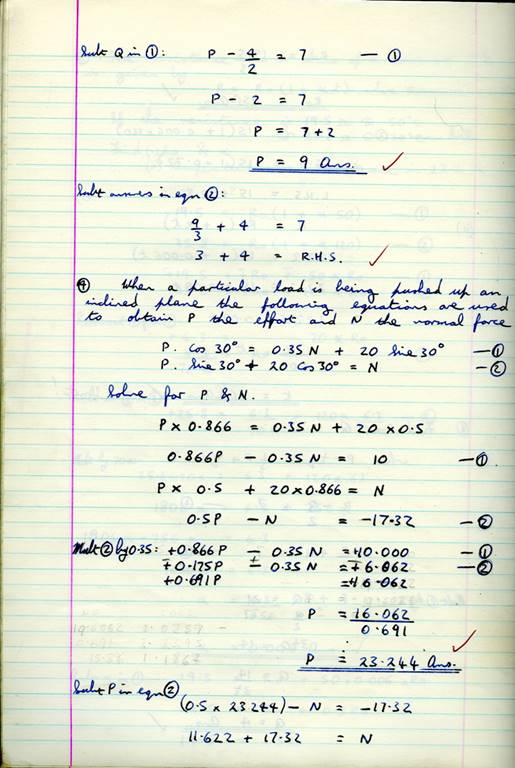

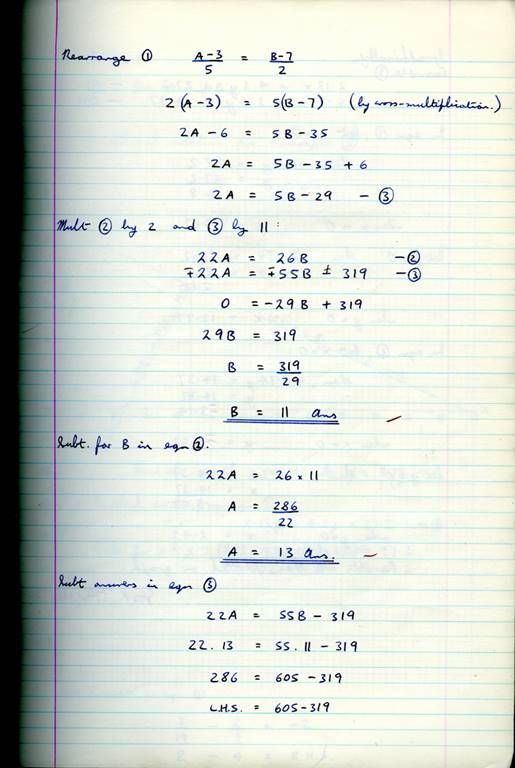

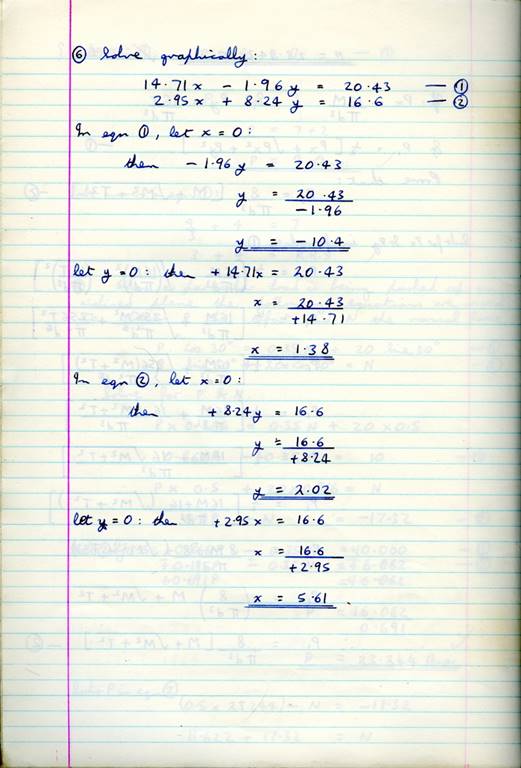

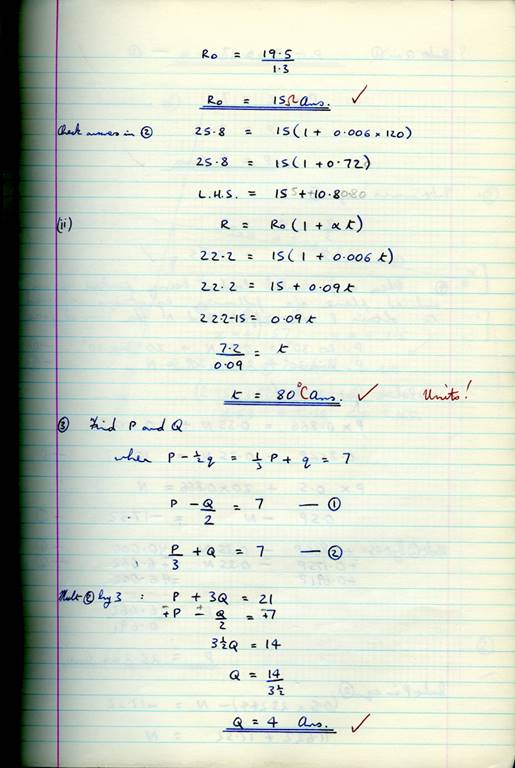

| 96 | Simultaneous Equations by Calculation & Graphs |

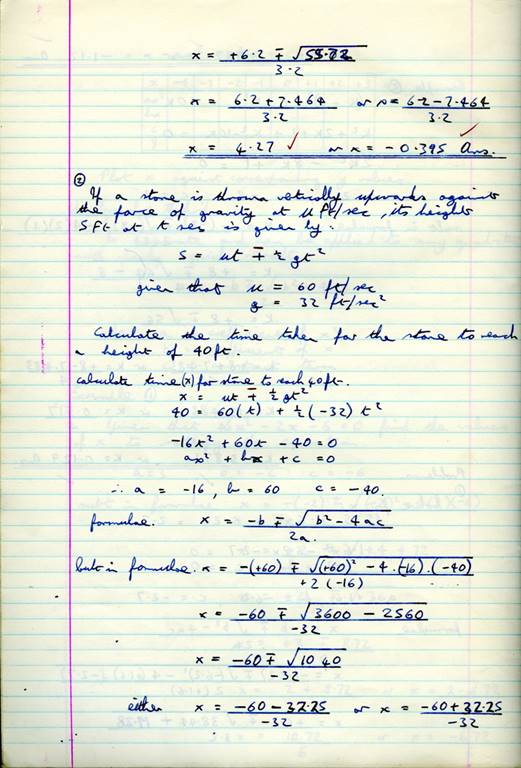

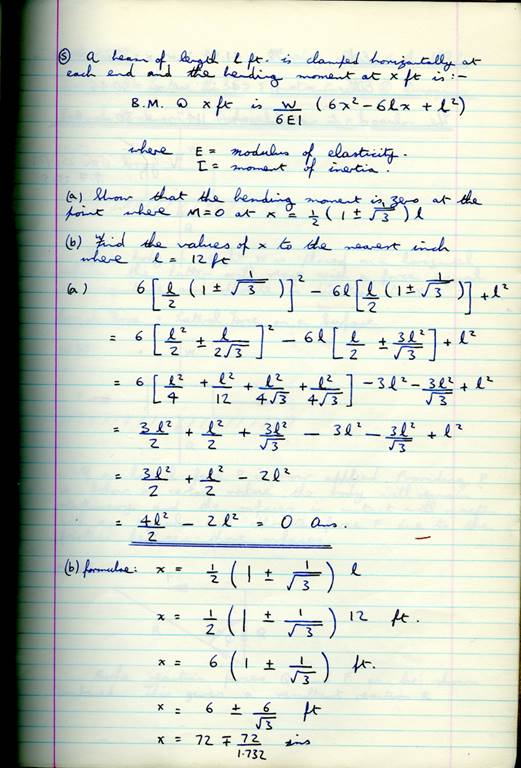

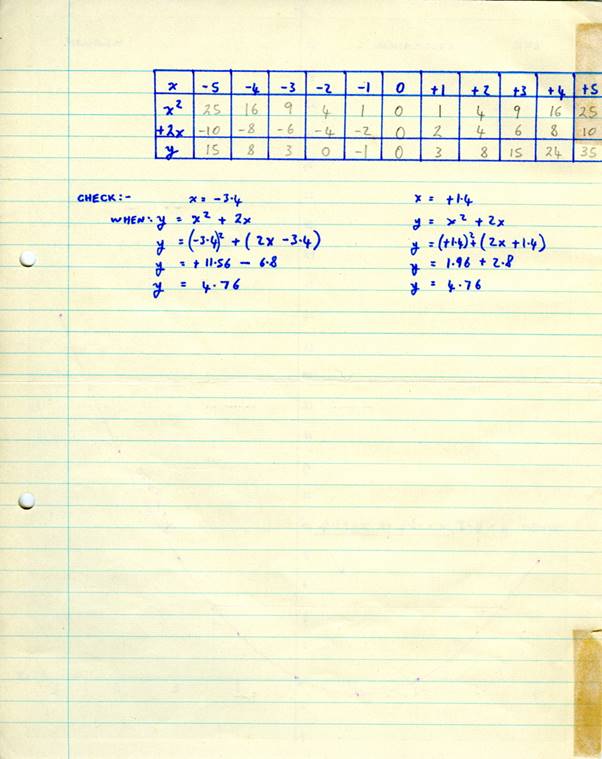

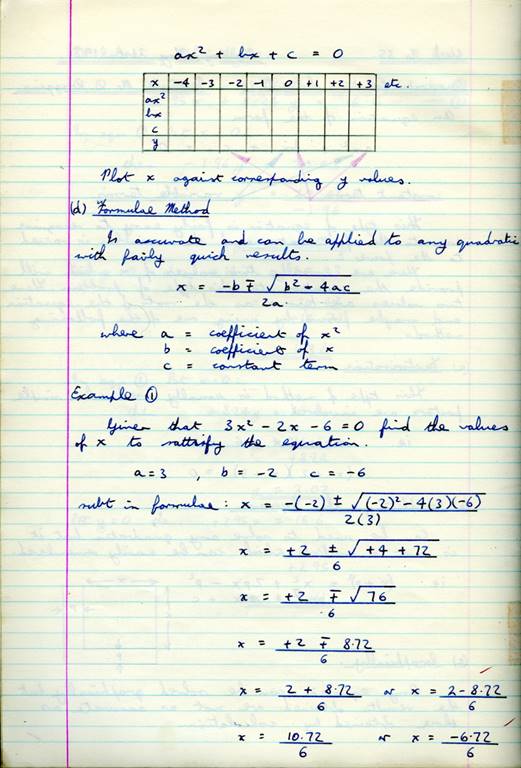

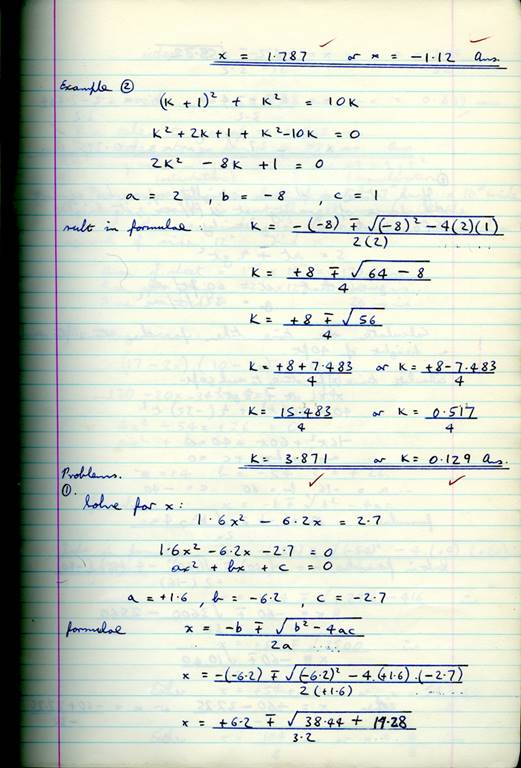

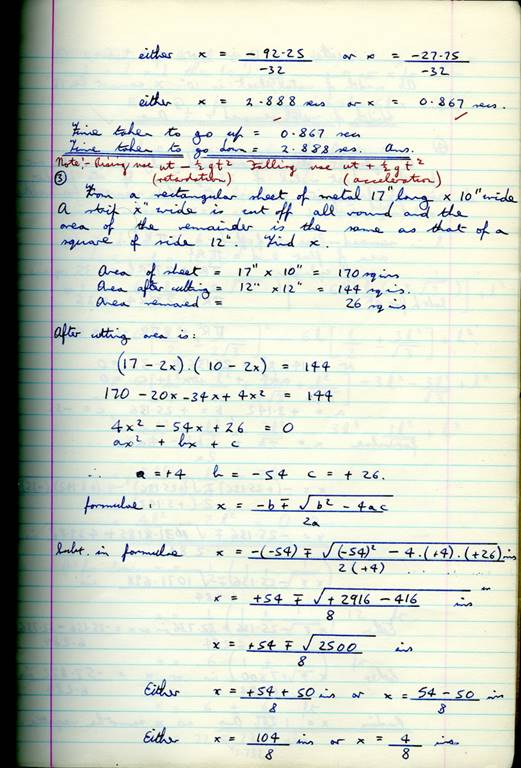

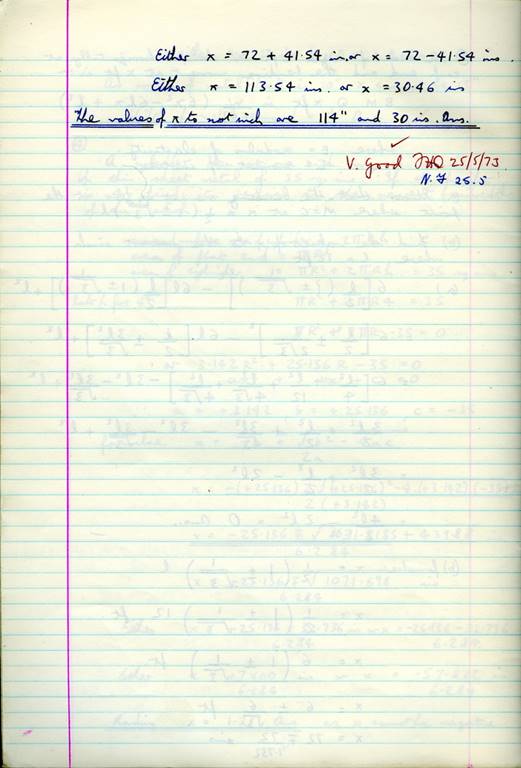

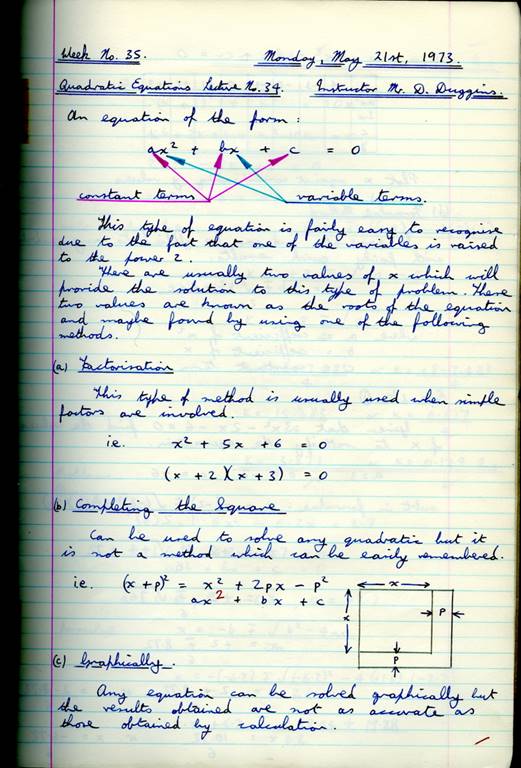

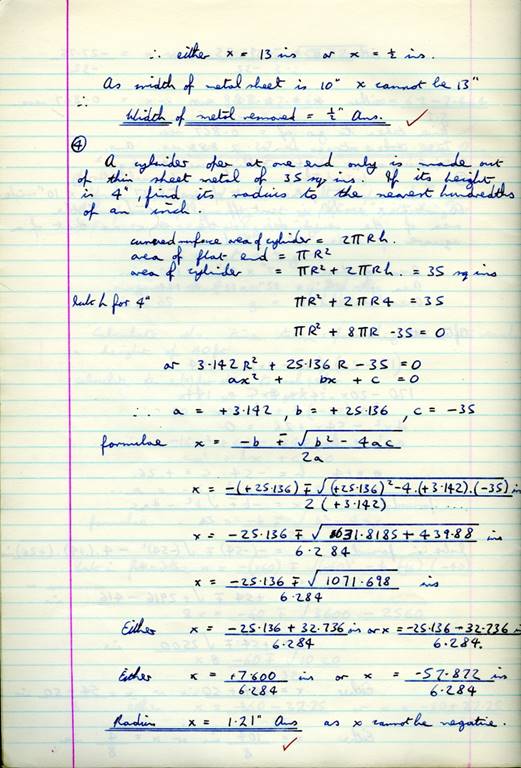

| 107 | 35 Quadratic Equations by Factorisation, Complete Square, Graphical & Formulae Method |

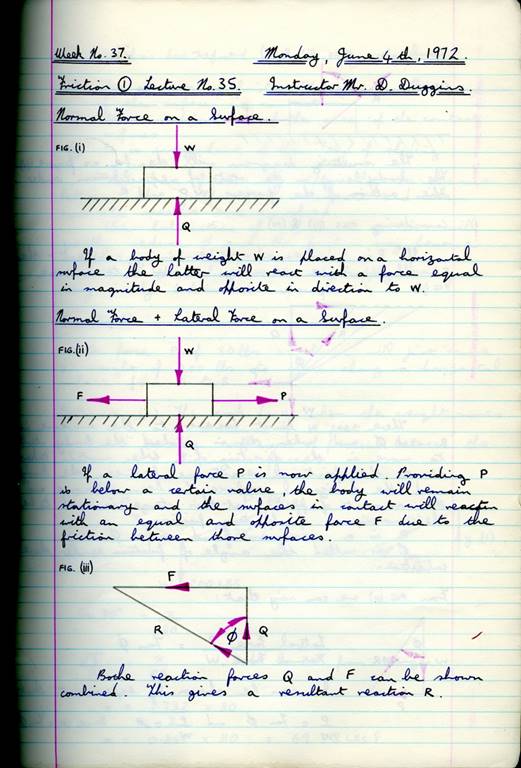

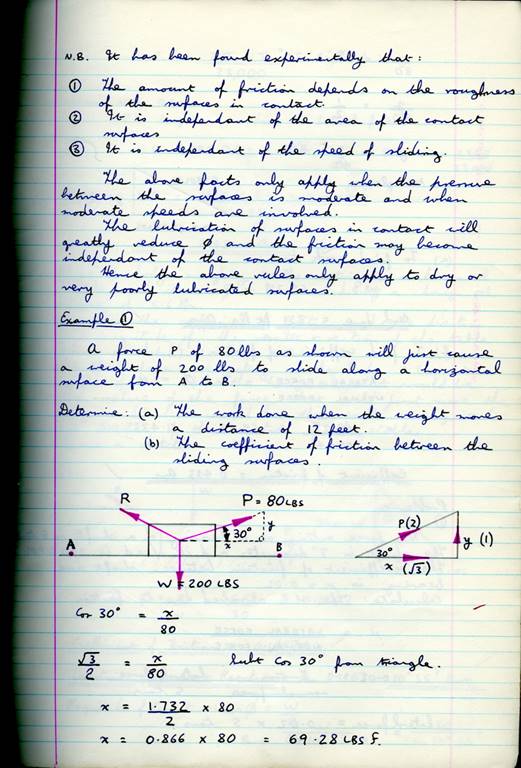

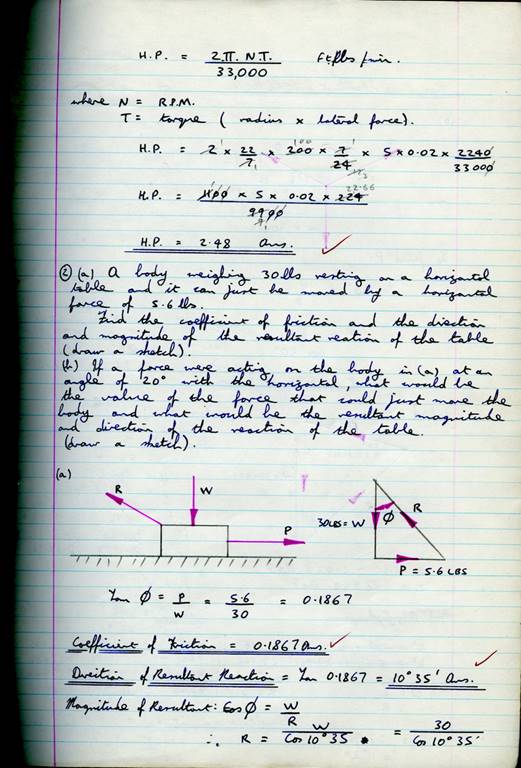

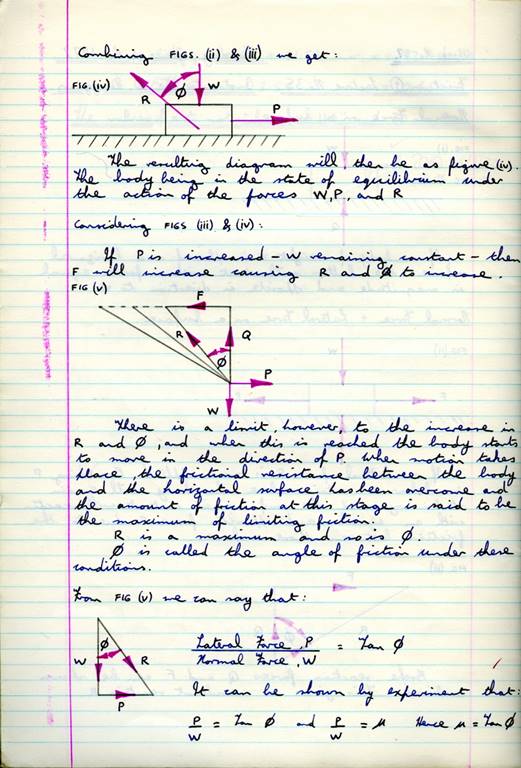

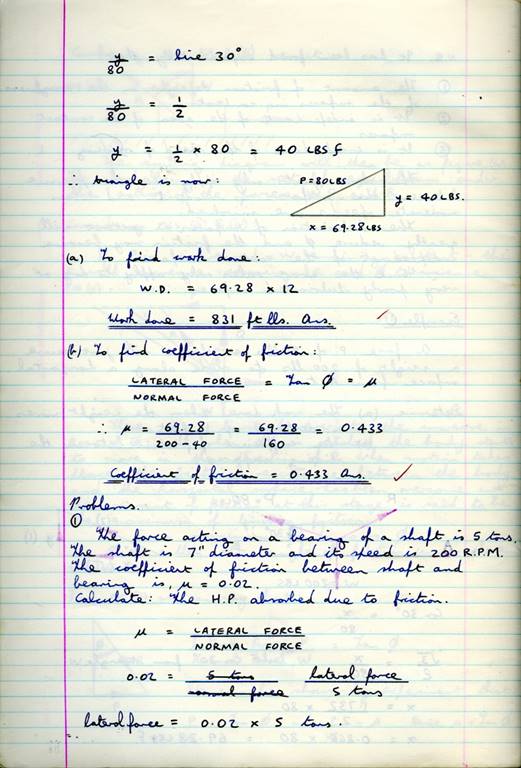

| 115 | 37 Friction 1 Calculations |
