I have included copies of my higher education notes on this website, that amount to ten years of my life approximately, for the following reasons. They prove that in a world of over population and hence competition, incomplete and out of date courses, the inablity to find out where the job vacancies are and then know how to apply for them, plus too much automation, education beyond the three R's is for most people a complete waste of time, money and effort. Only a technocracy, that is government by highly intelligent, qualified and trained technocrats, supported by artificial intelligence, can put this matter right, providing purpose, an identity, mental well being and hence loyalty to the state. Such a system can only come about through a technocracy. A world technocracy can lead to greater benefits, the obvious one being the directing of finance for war towards finance for scientific research.
Education 1973 GTC Draughtsmanship Book 4
Index
Page No.
Subject
1

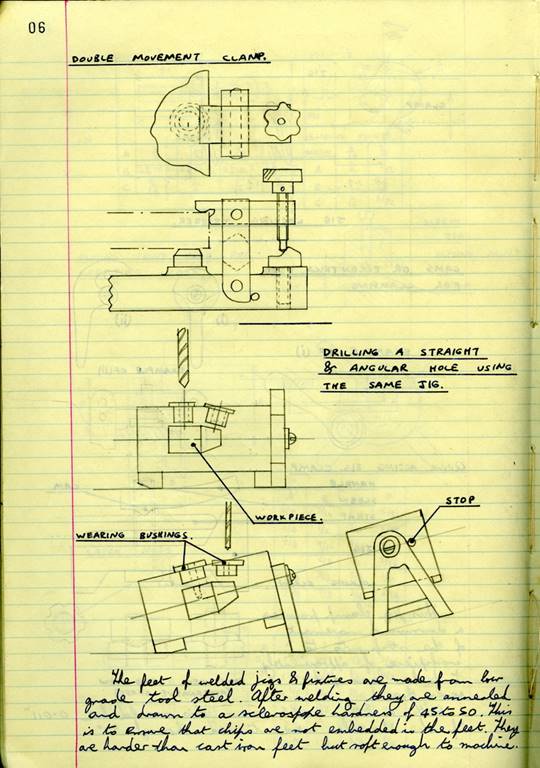

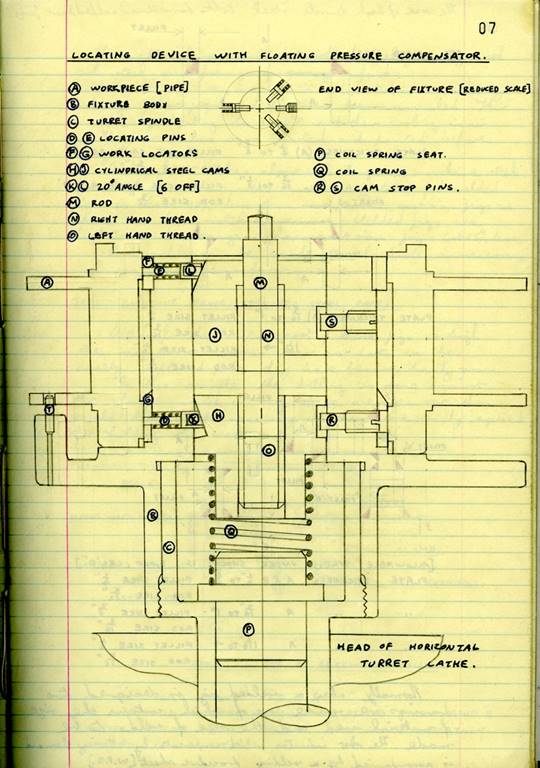

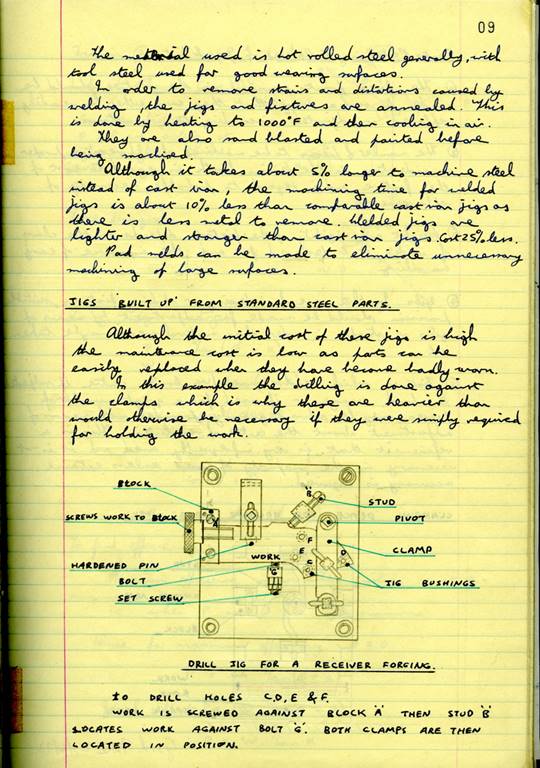

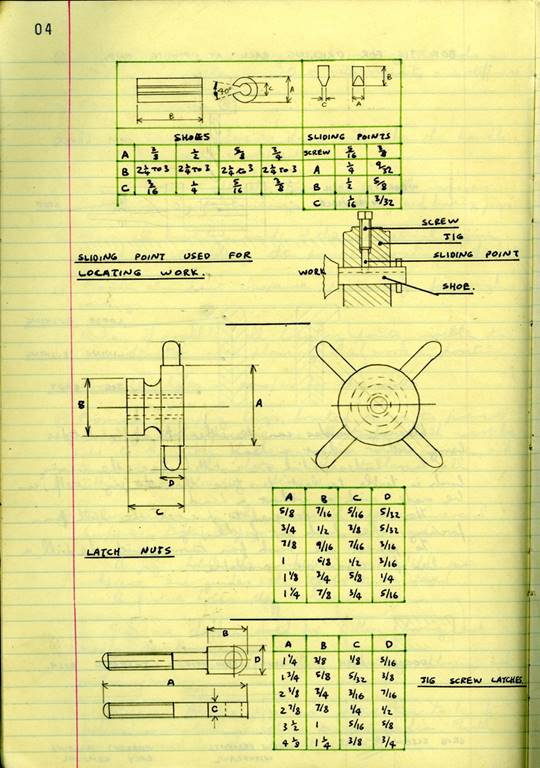

37 Jig & Fixture Design
11
Friction 2
16

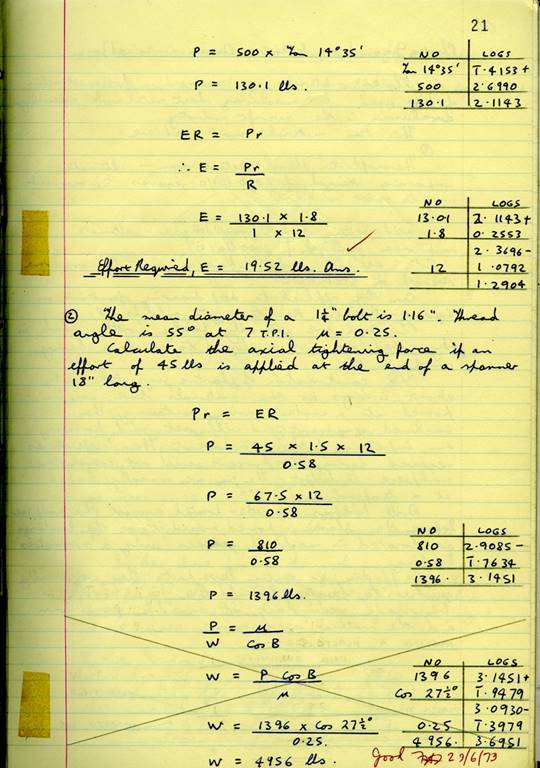

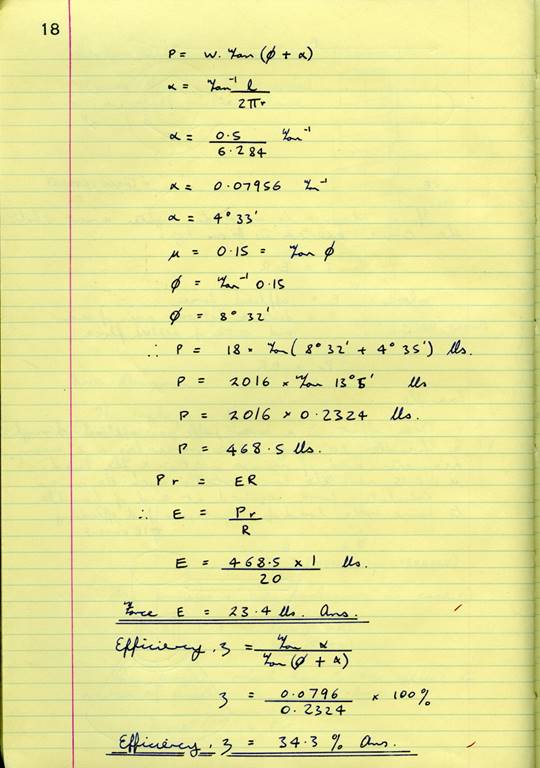

Friction Applied to Screw Threads
22
Plastic Jigs
25

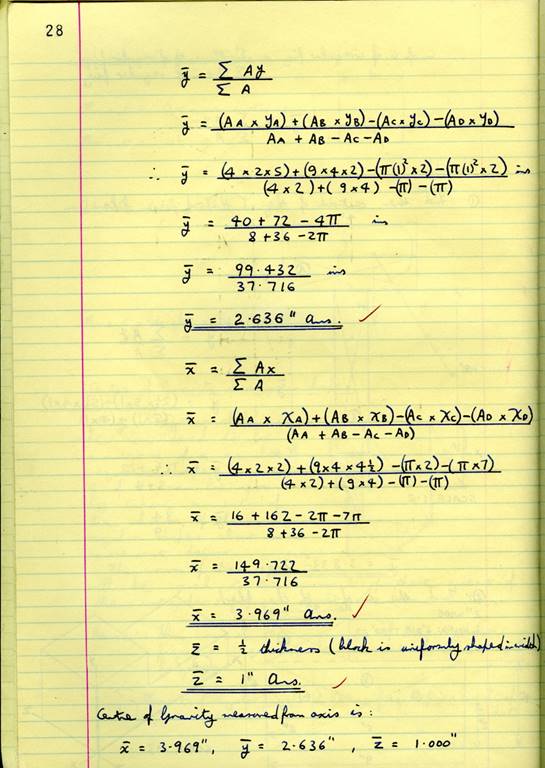

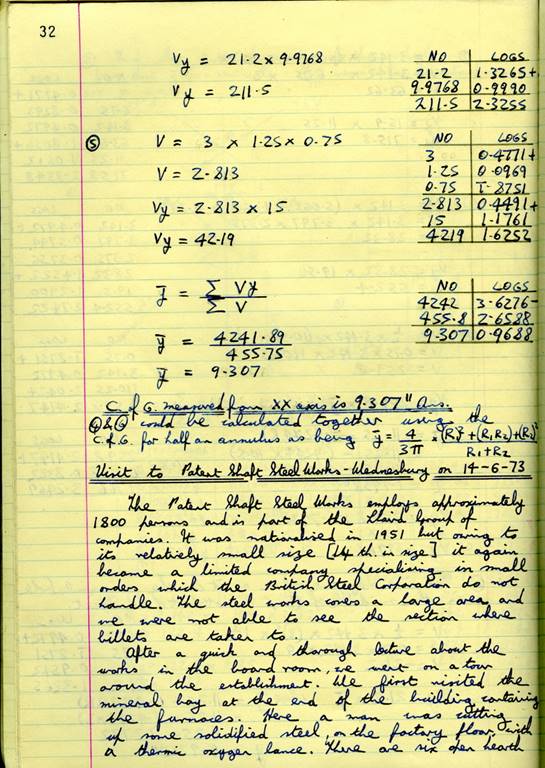

38 Centre of Gravity
34
Visit to Patent Shaft Steelworks
37

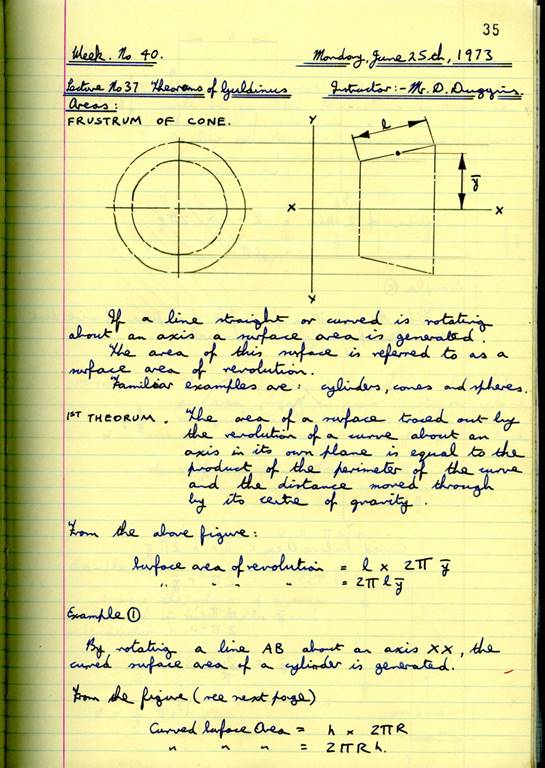

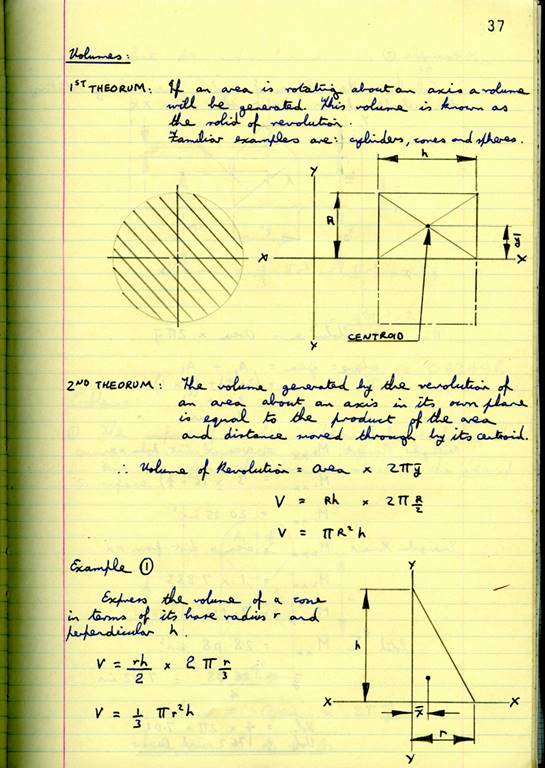

40 Theorems of Guldinus
46

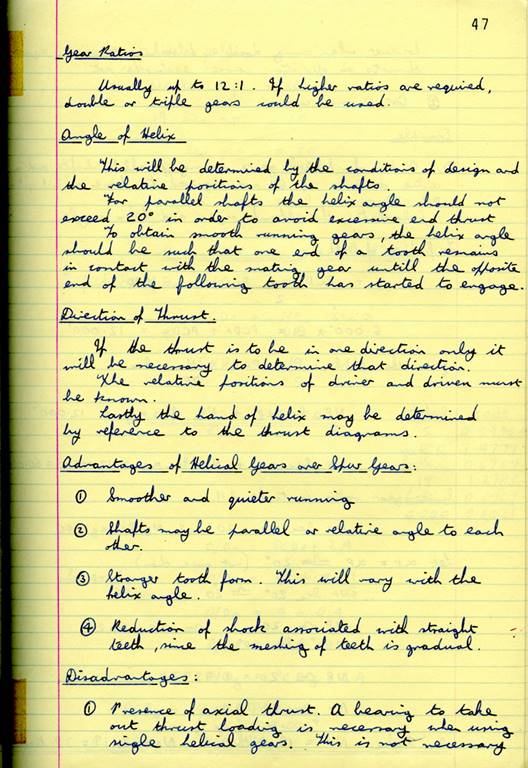

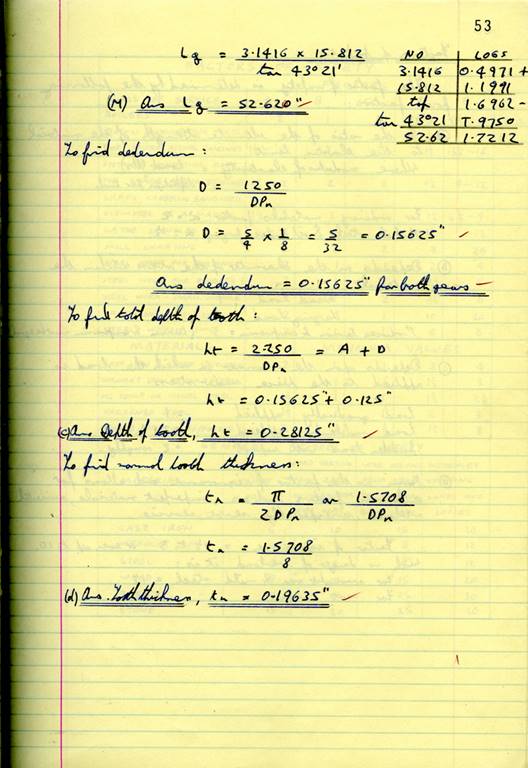

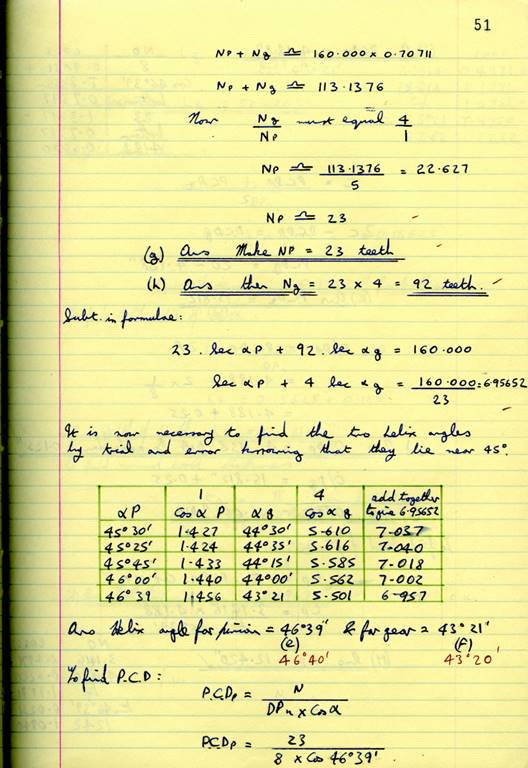

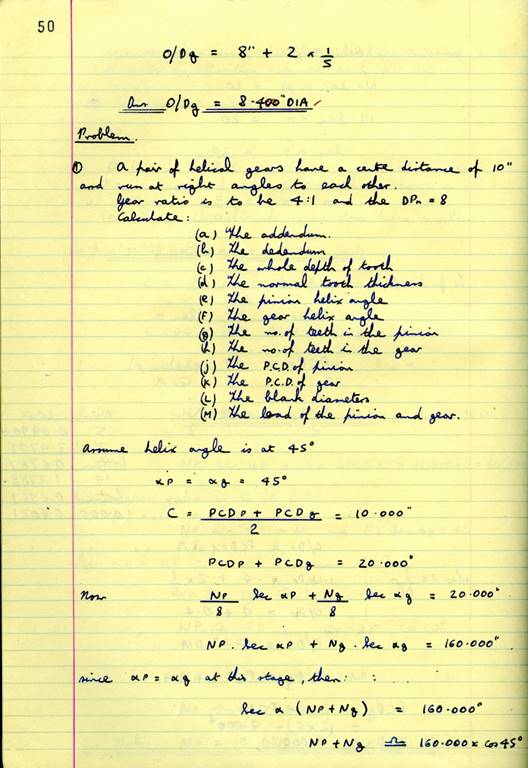

41 Helical Gears
57

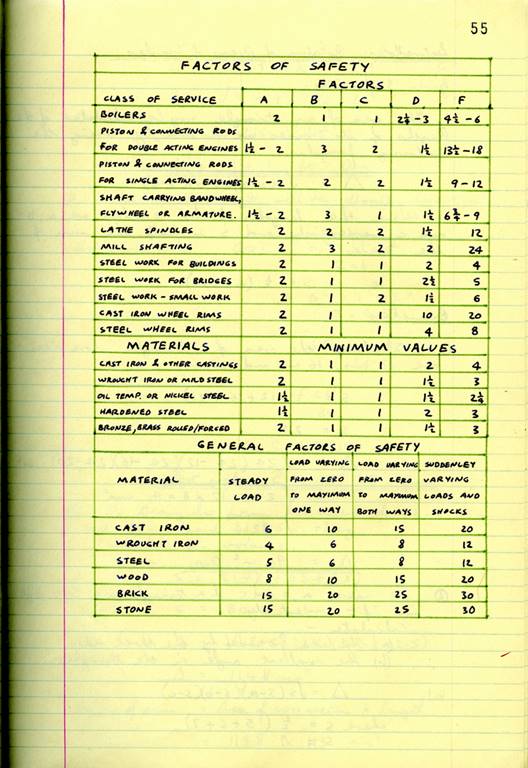

Factors of Safety
59
Solution to Areas of triangles
61

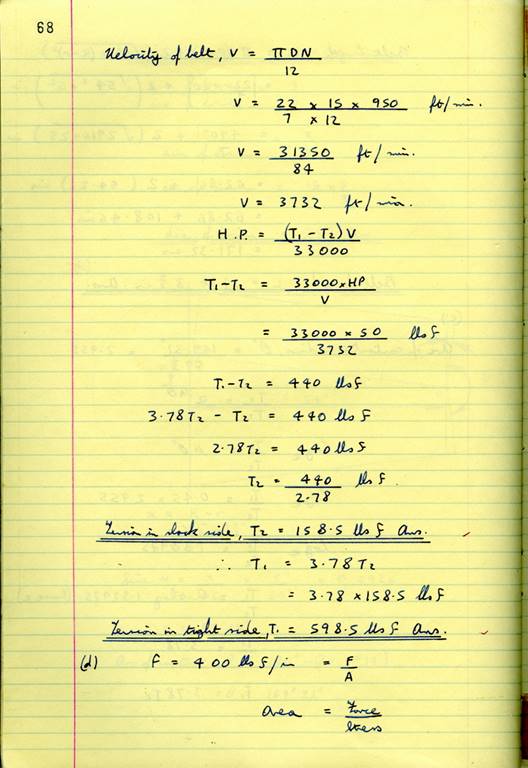

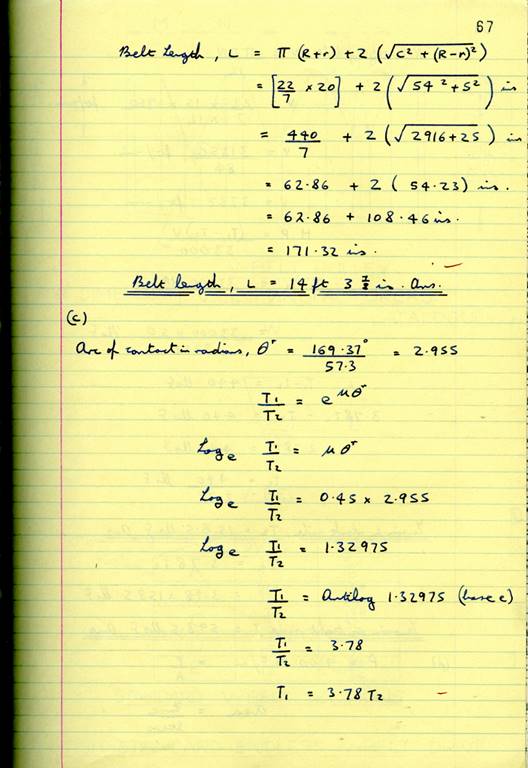

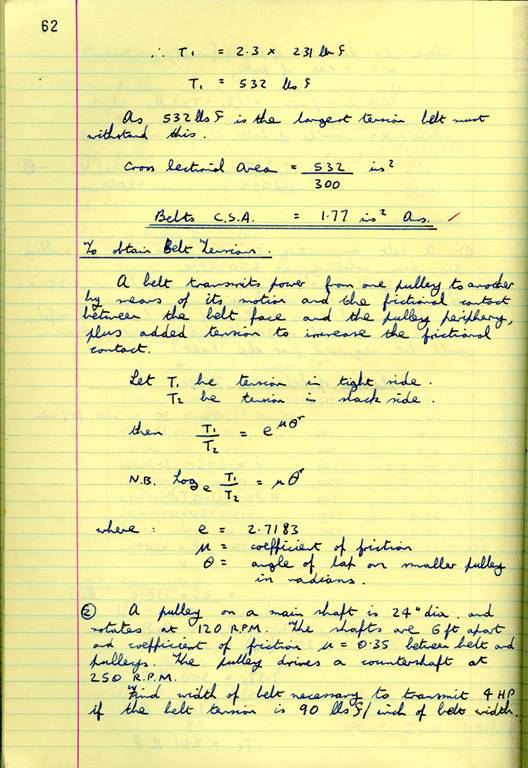

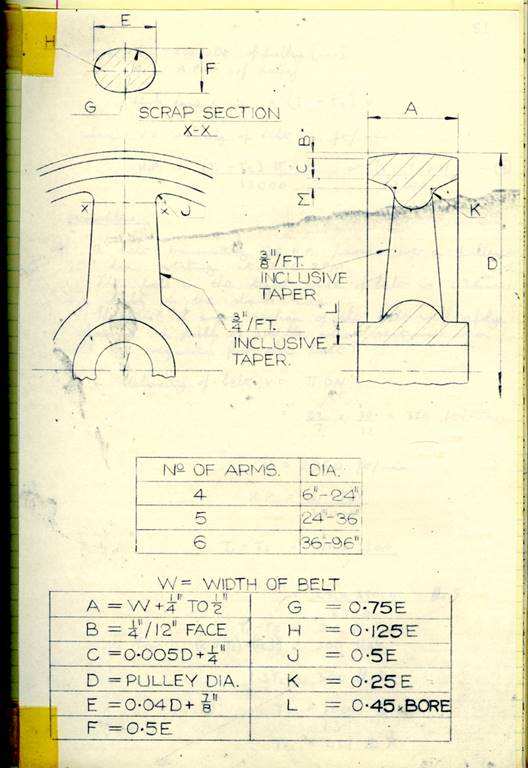

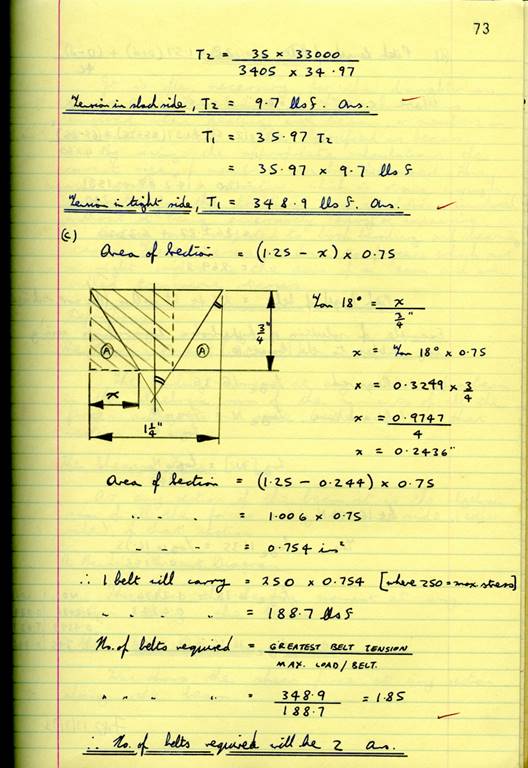

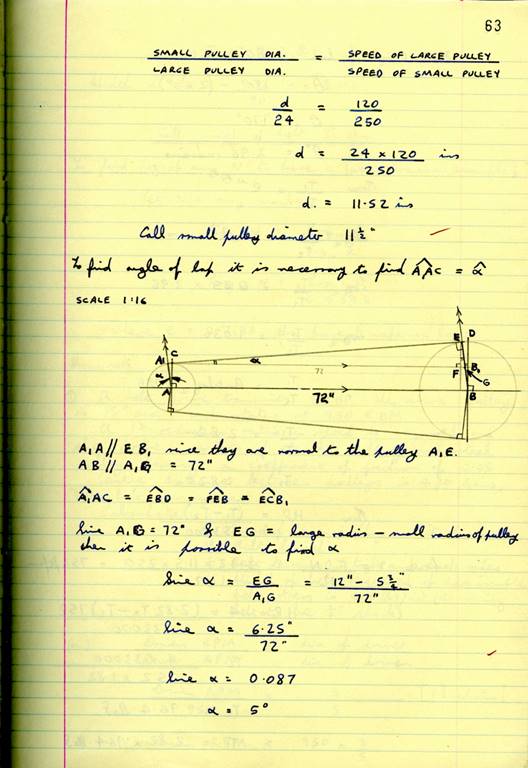

Transmission of Power by Belts
74
Vee Belt Drives BS1440
81

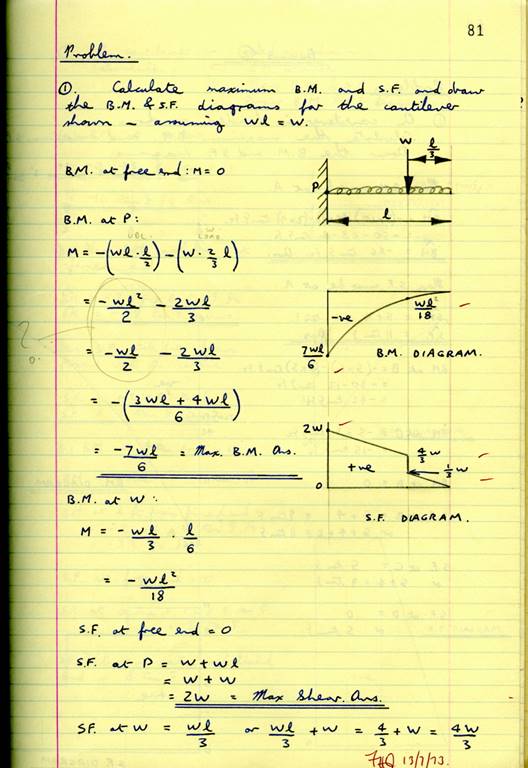

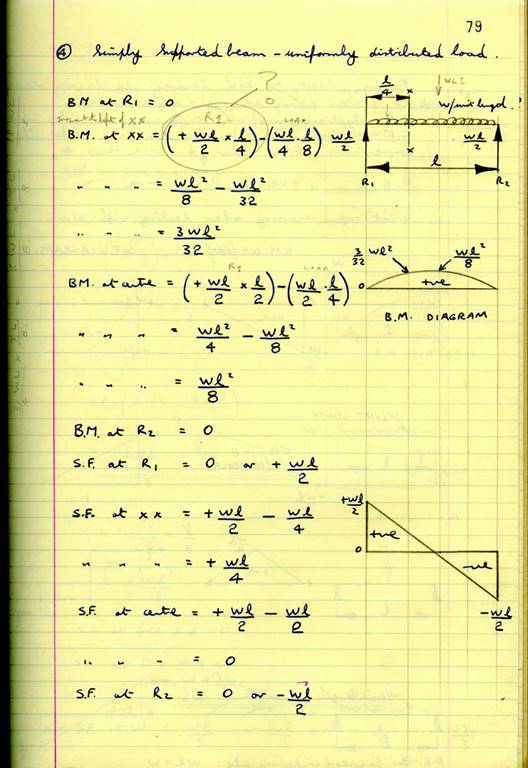

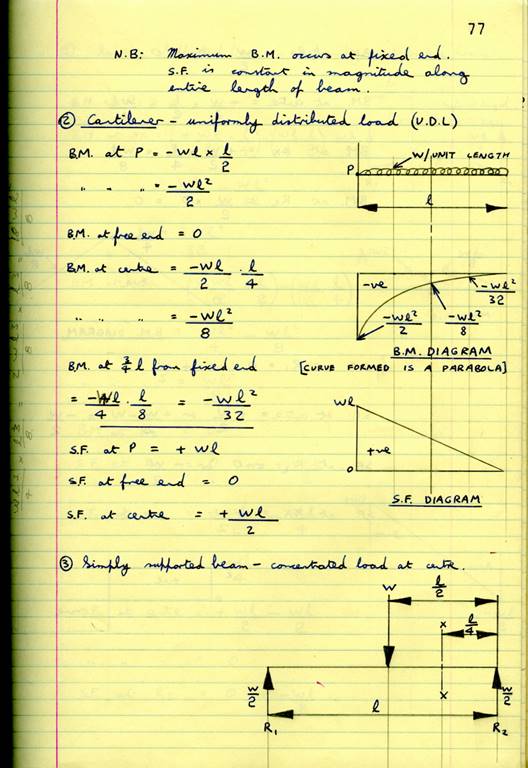

Beams 1
88

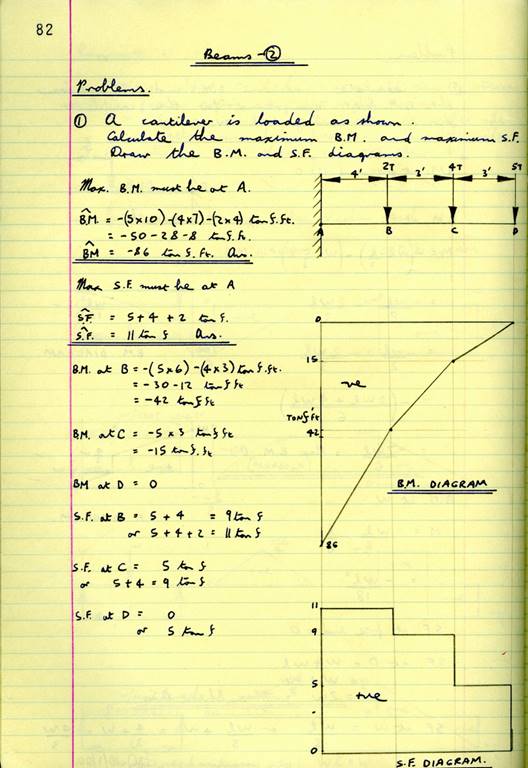

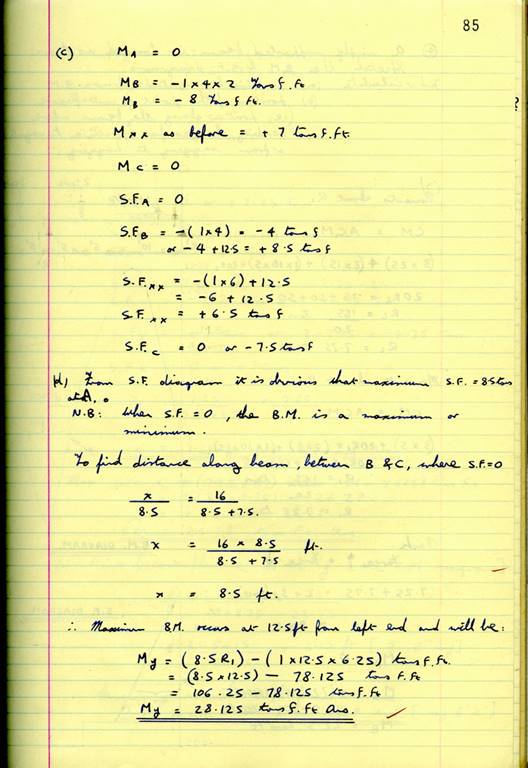

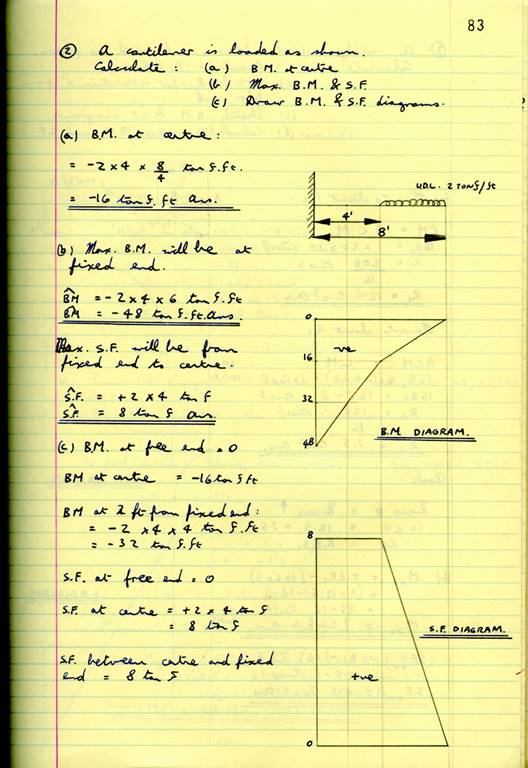

Beams 2
96

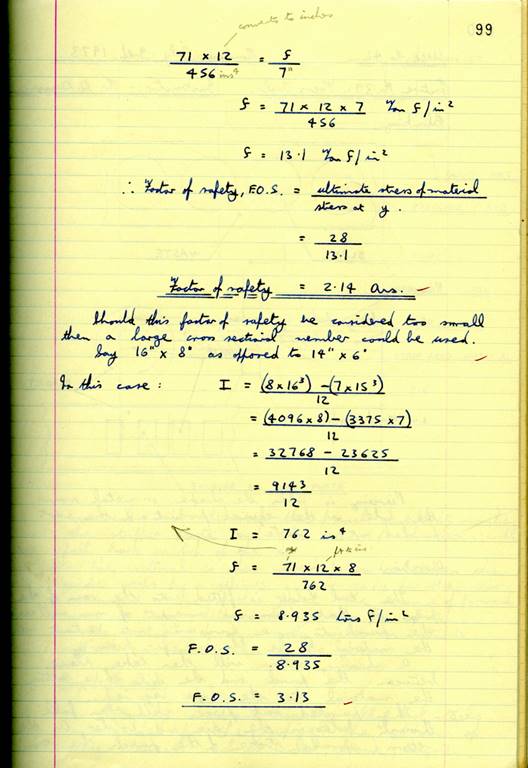

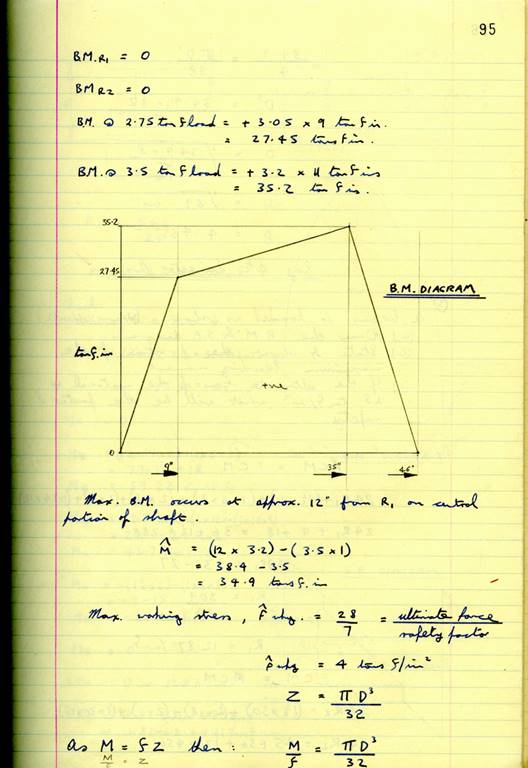

Beams 3
106

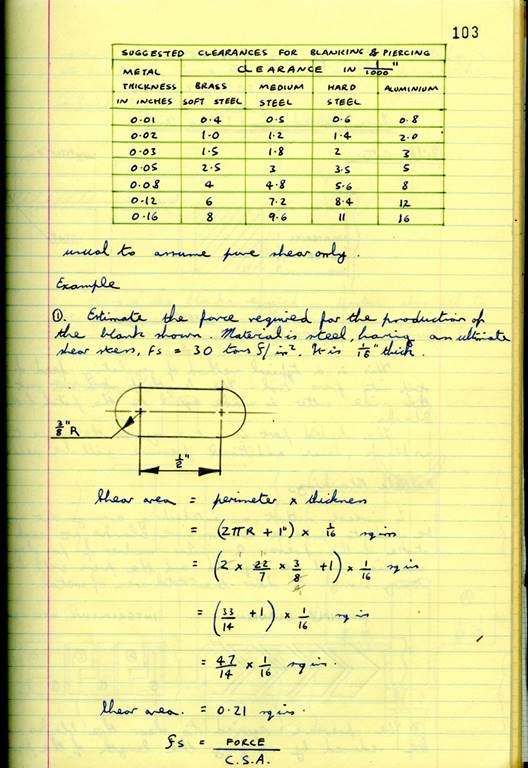

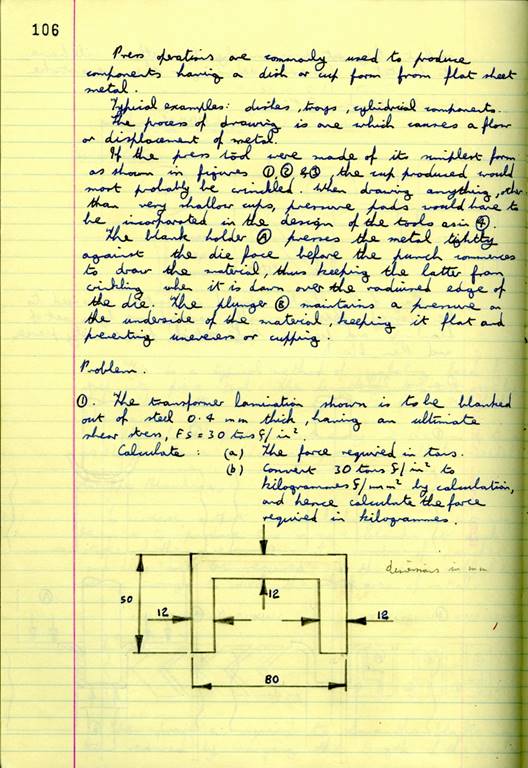

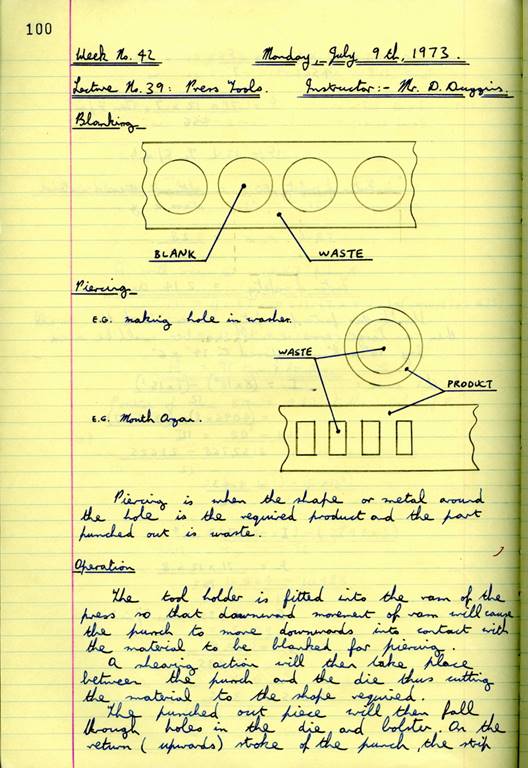

42 Press Tools
114

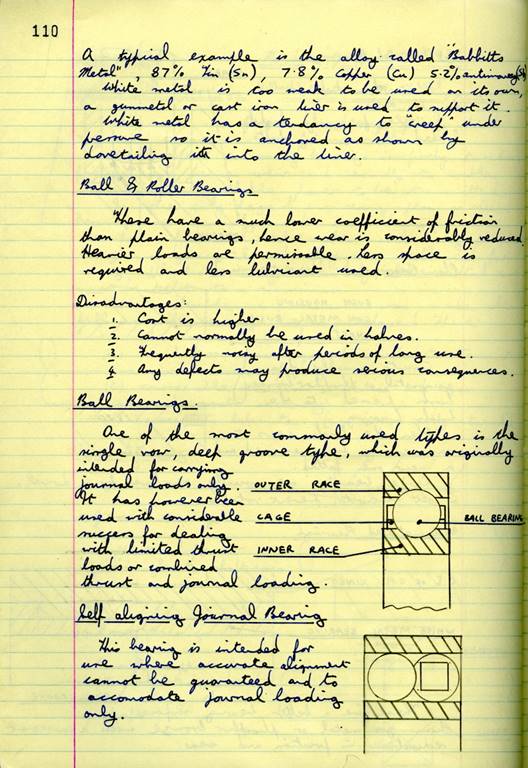

43 Bearings
119
The Lever
132

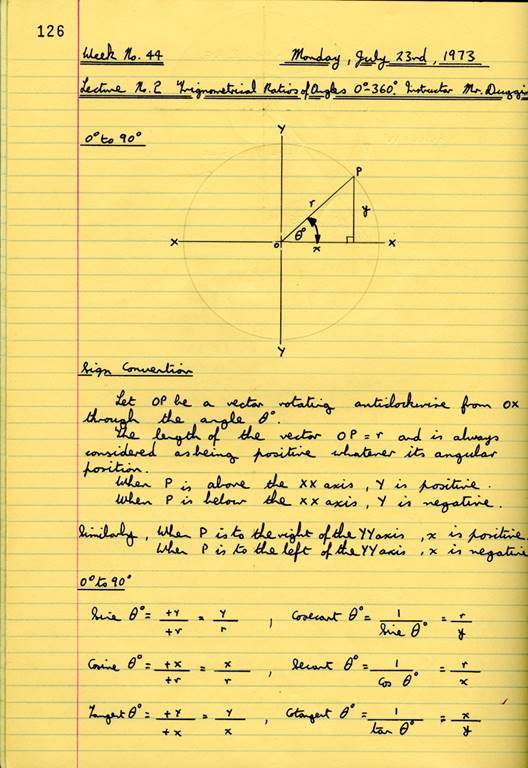

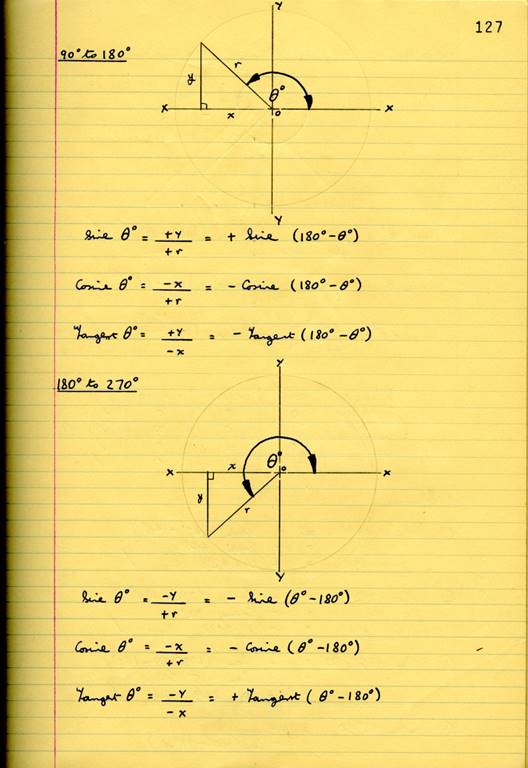

44 Trignometrical Ratio of Angles
0 to 360 Degrees
136
Trigonometry Sine Rule
142
Mechanical Transmission of Power 1
146
Bending Allowances
150
Modifications to Calculated Bend Lengths
152

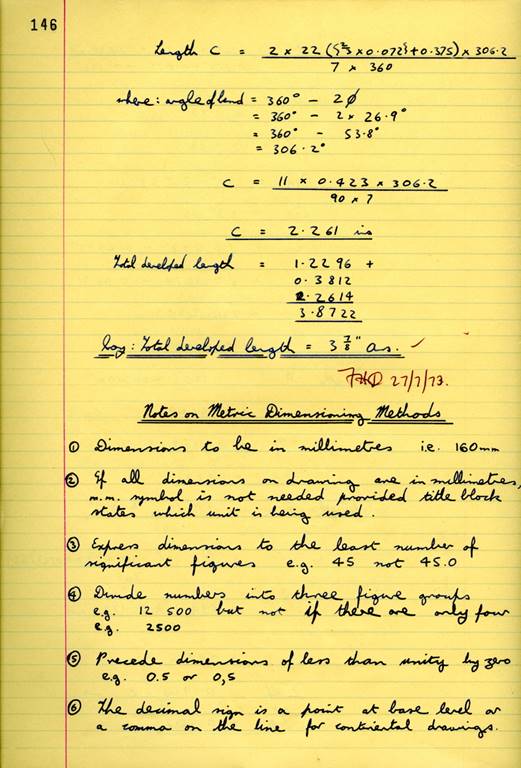

Notes on Metric Dimensioning Methods
154

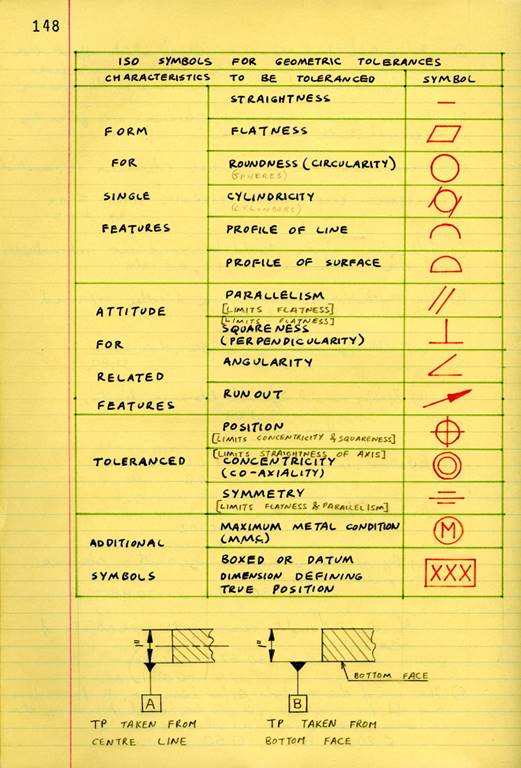

ISO Geometric Tolerance Symbols
157

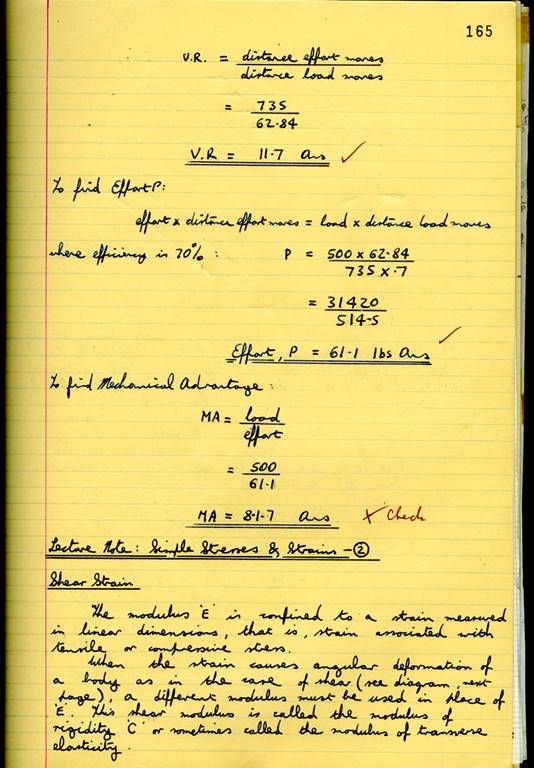

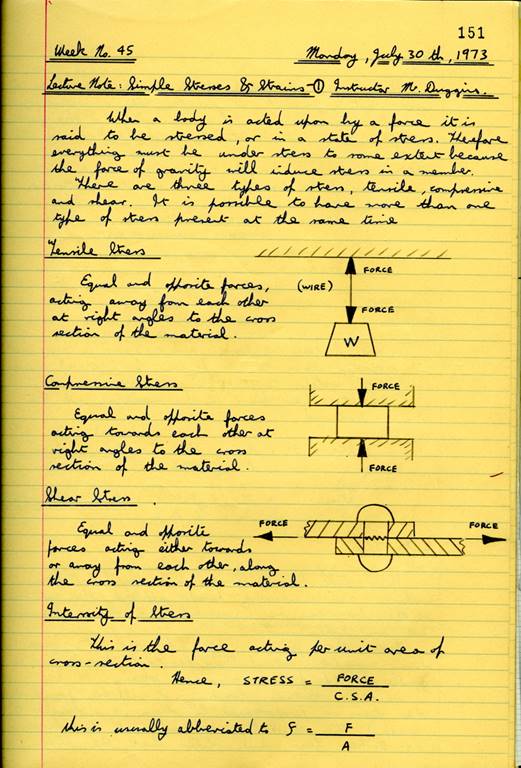

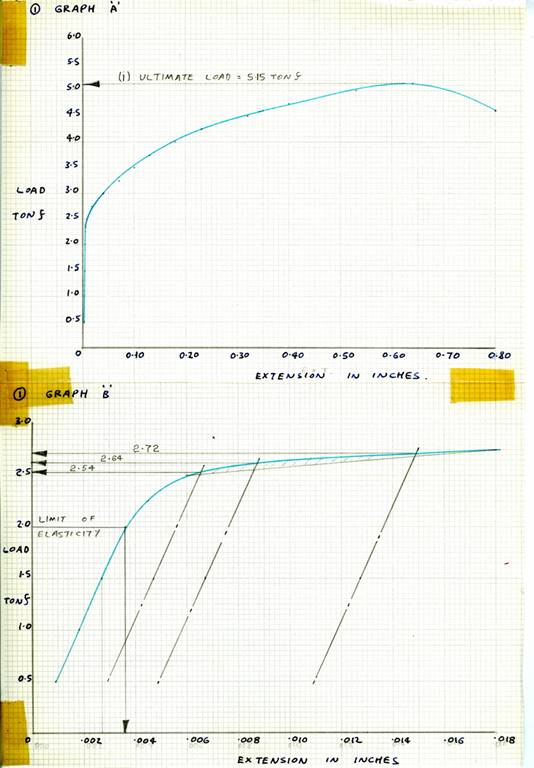

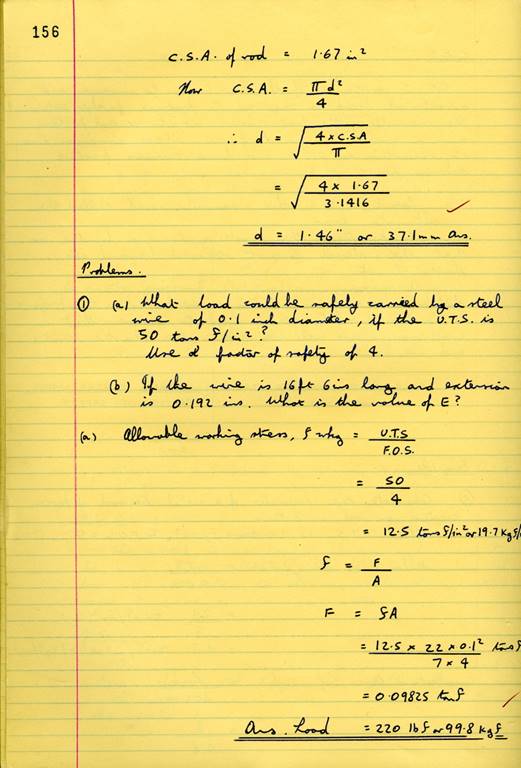

45 Simple Stresss & Strains 1
166

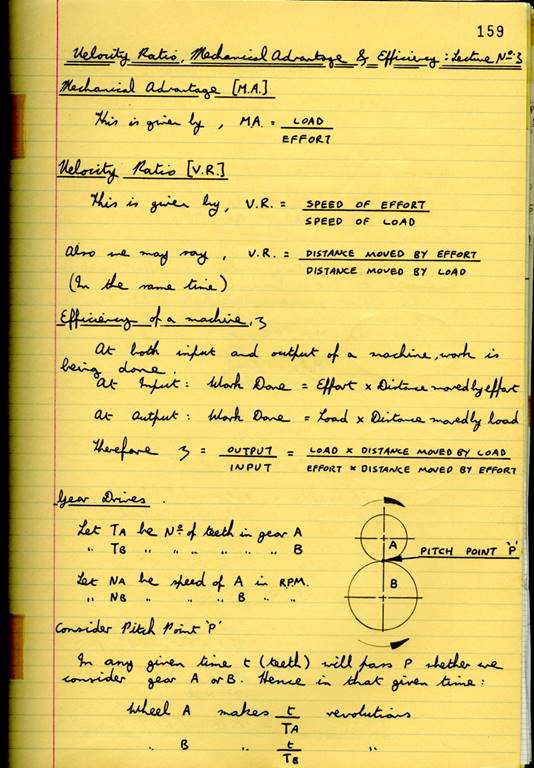

Velocity Ratio, Mechanical Advantage & Efficiency
172
Simple Stresses & Strains 2
176

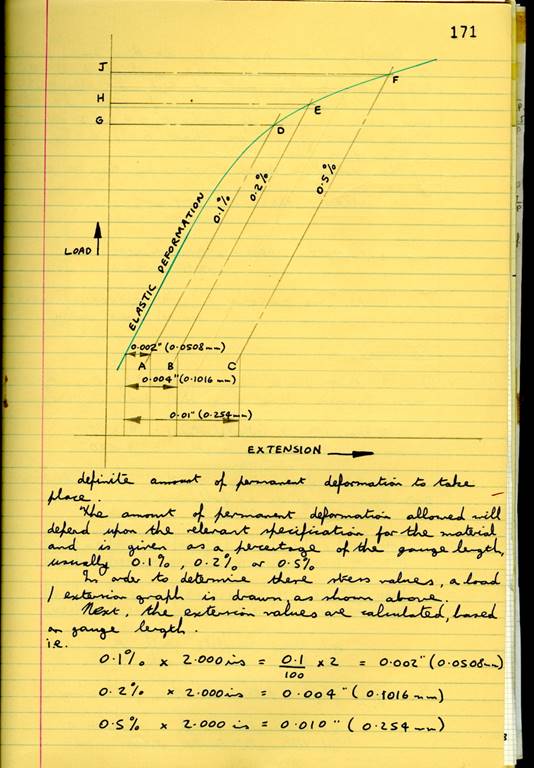

Simple Stresses & Strains 3
183

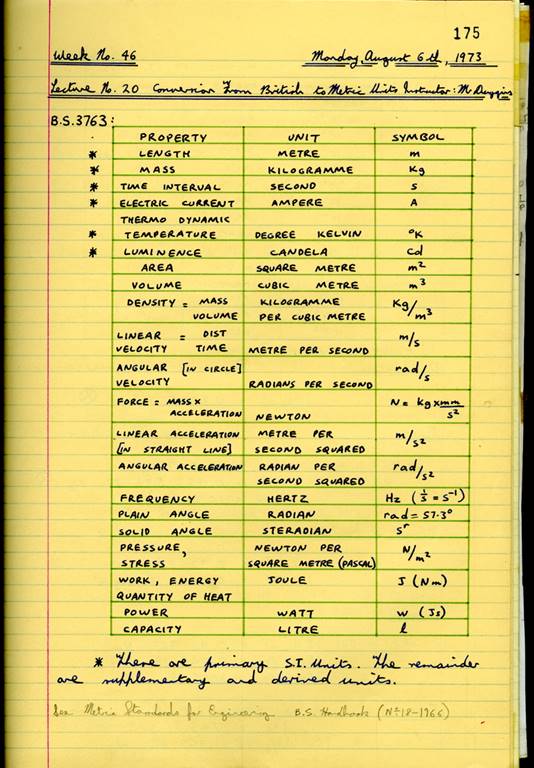

46 Conversion from Imperial to Metric Units
186

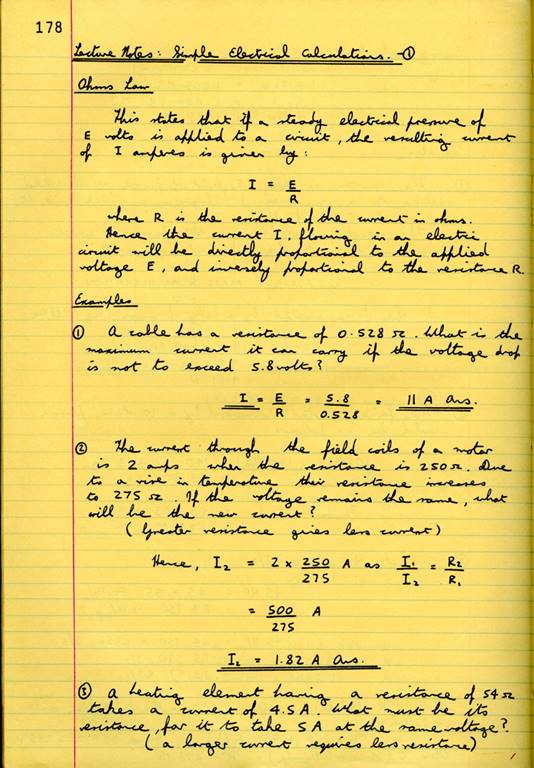

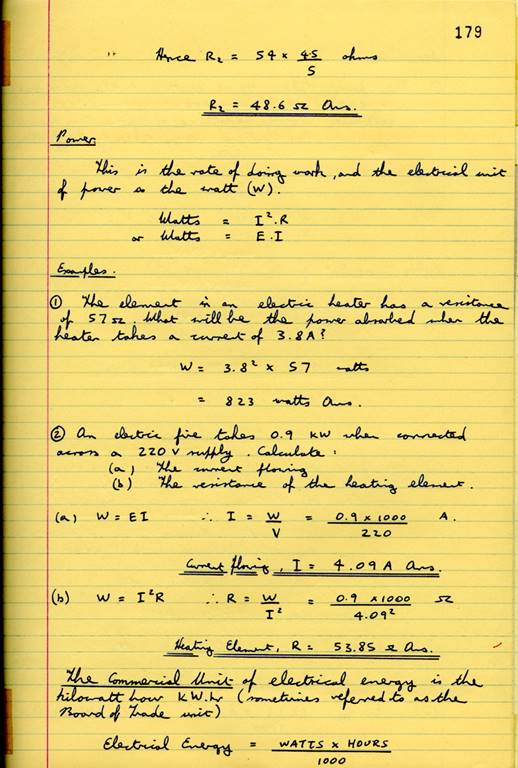

Simple Electrical Calculations 1
187

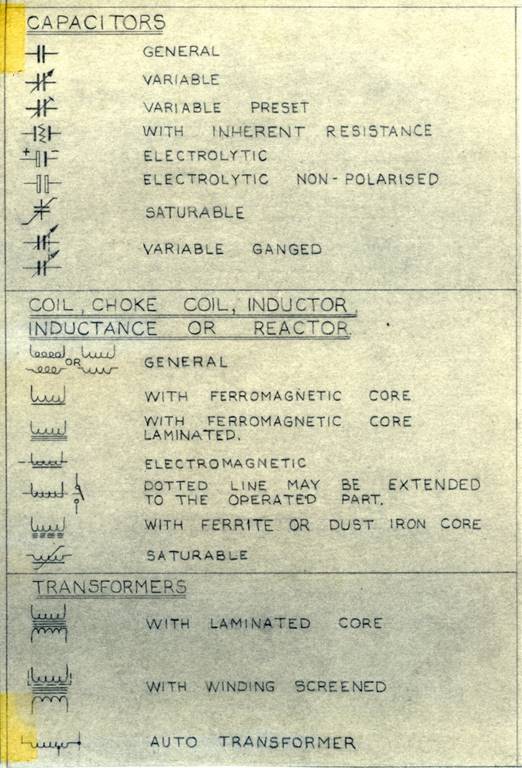

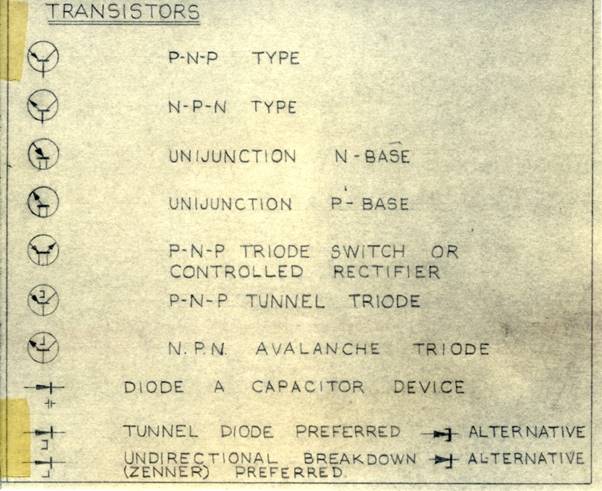

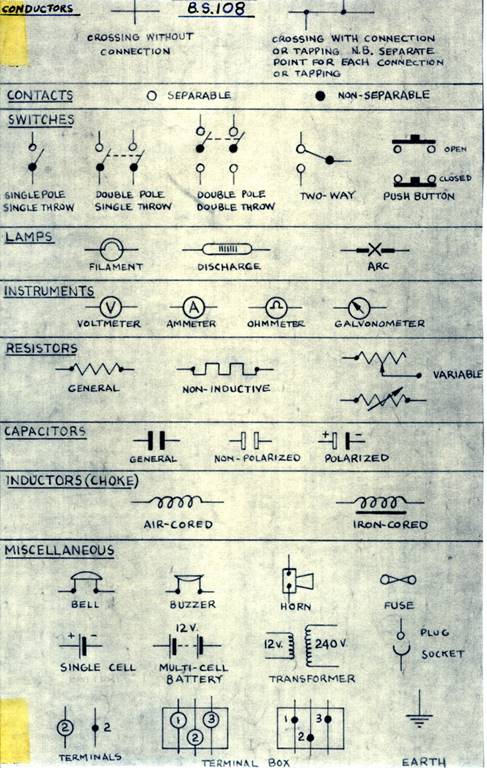

Electrical Symbols
193
Electrical Calculations
196

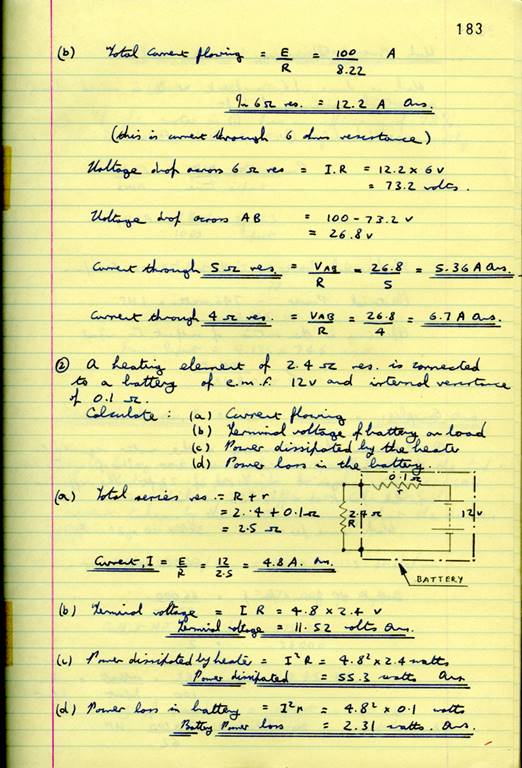

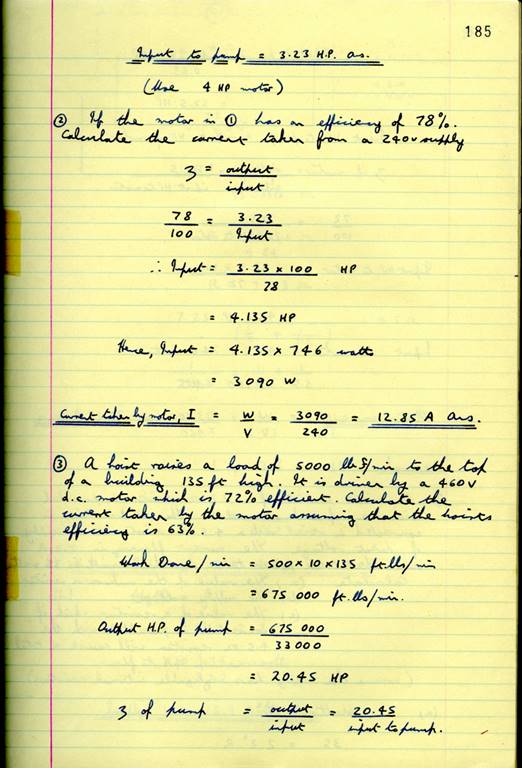

Simple Electrical Calculations 2
203
Table of Electrical Units
204

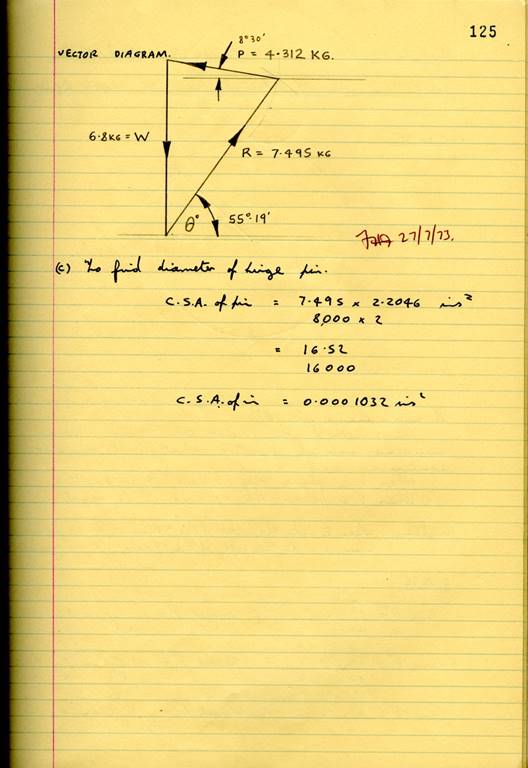

Parallelogram & Triangle of Forces
214

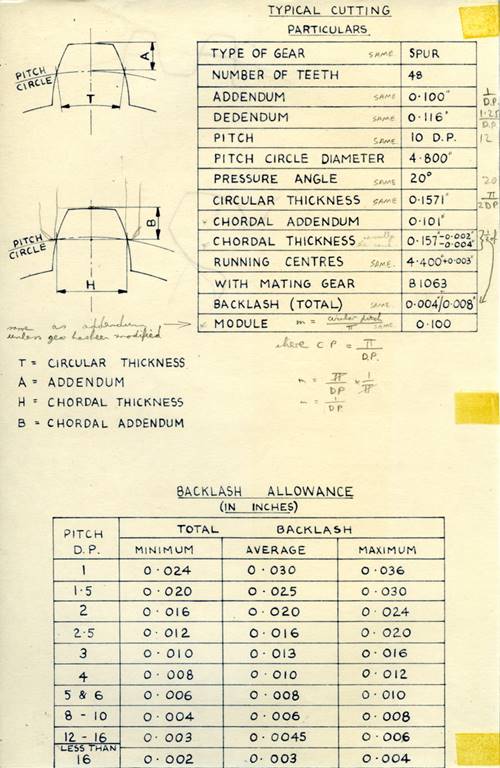

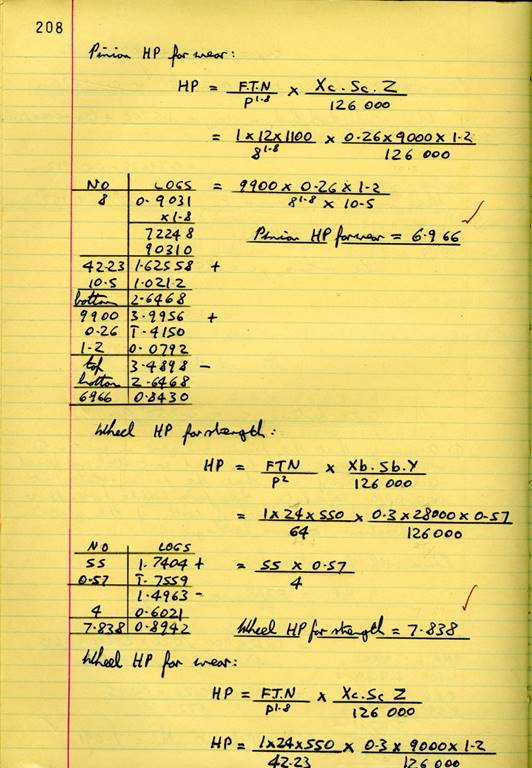

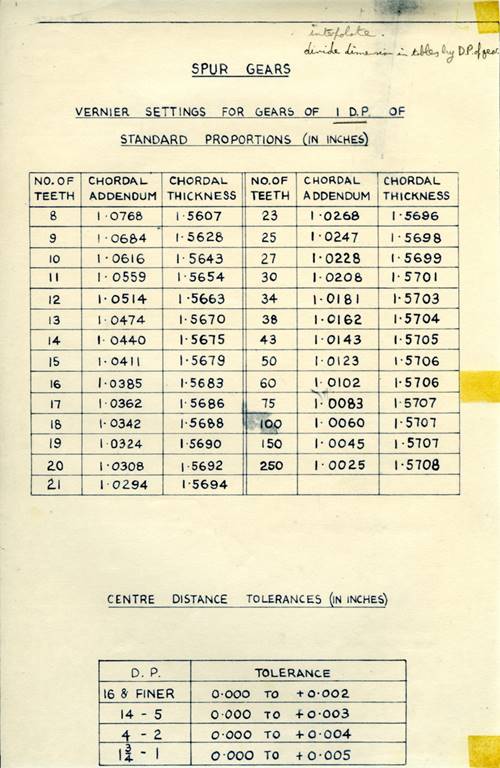

47 Spur Gears
Education 1973 GTC Draughtsmanship Book 4 Notes

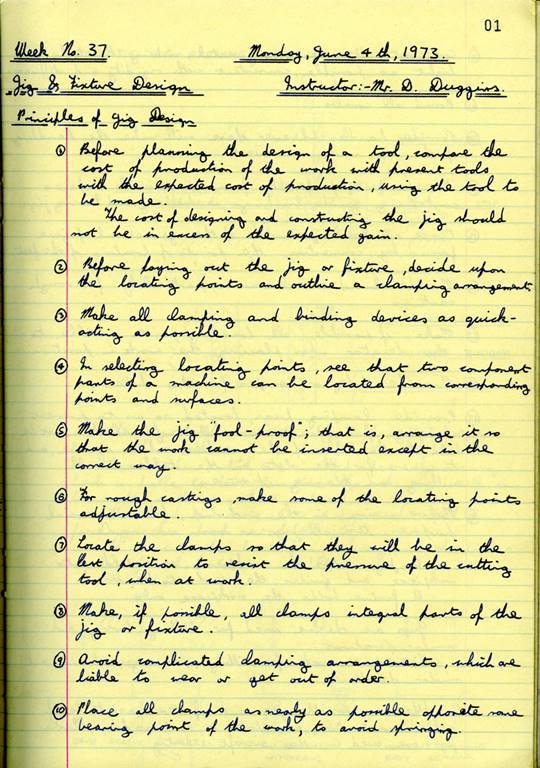

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 1

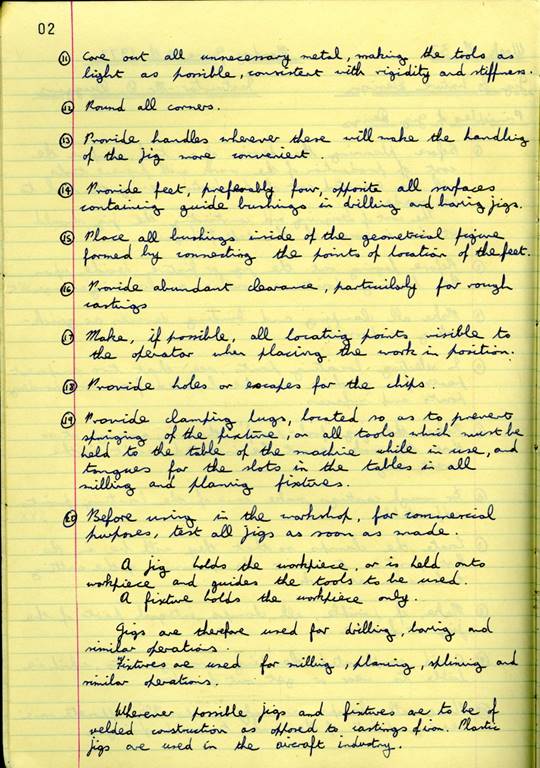

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 2

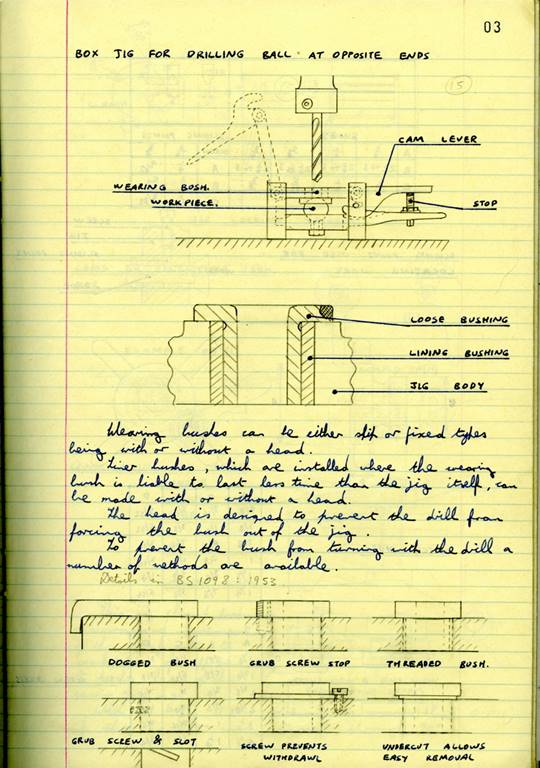

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 3
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 4
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 5
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 6
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 7

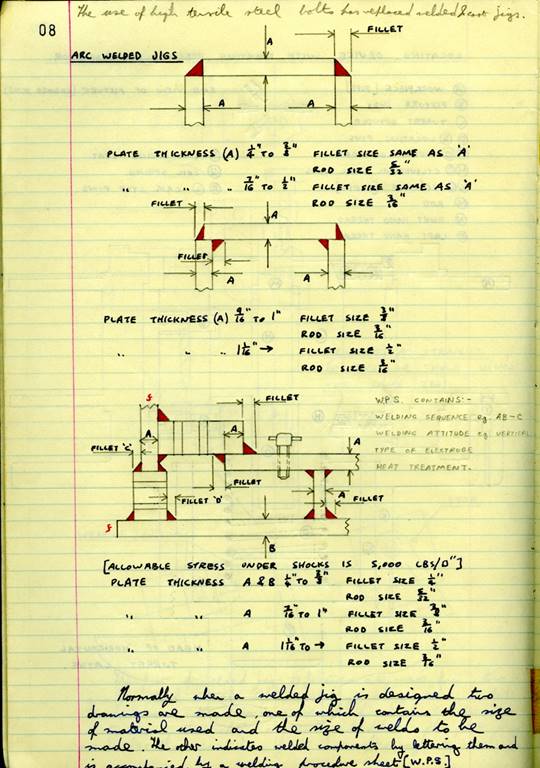

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 8
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 9
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 10
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 11
"1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 12

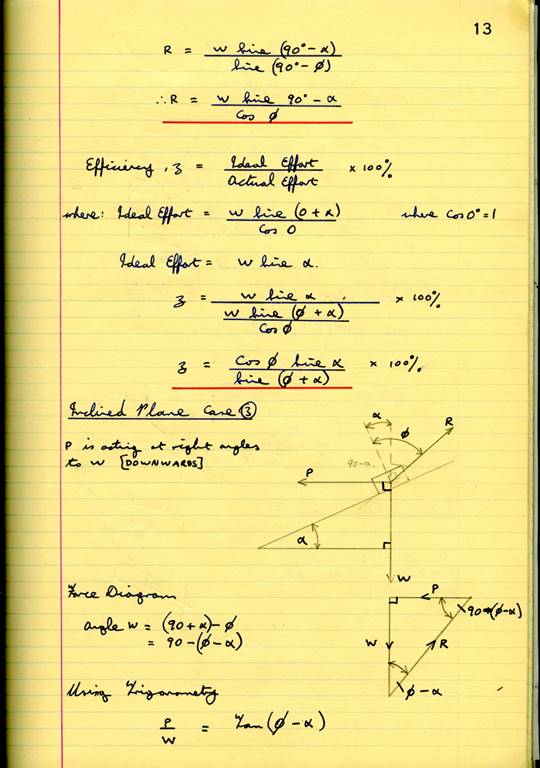

"1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 13
"1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 14
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 15
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 16
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 17
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 18
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 19
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 20
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 21

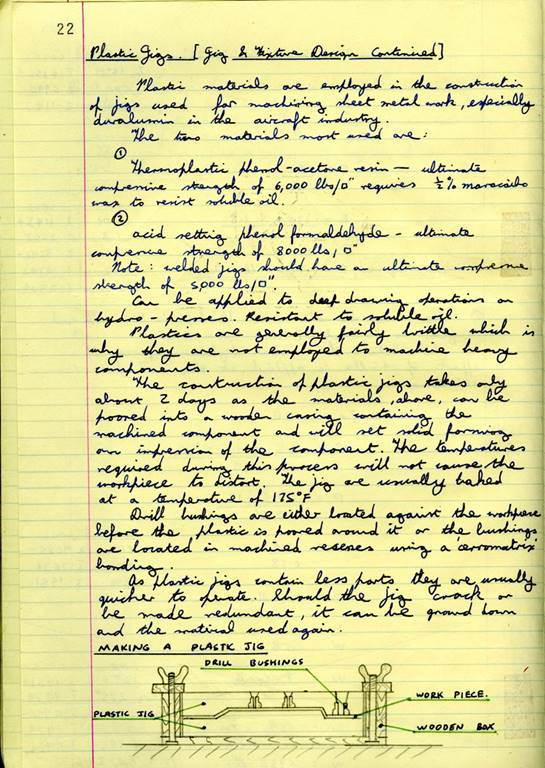

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 22

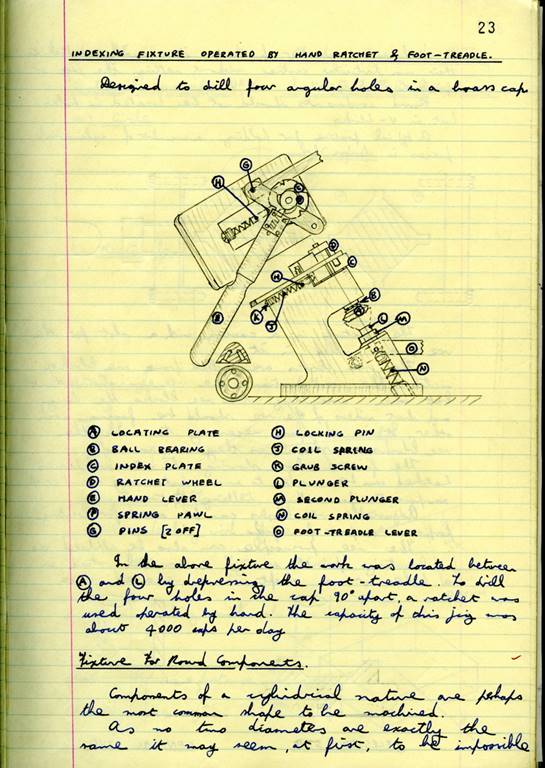

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 23
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 24
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 25

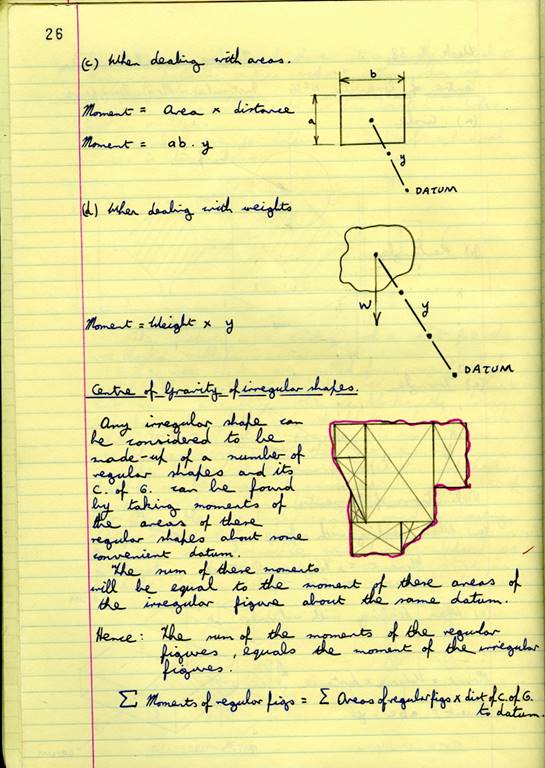

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 26
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 27
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 28

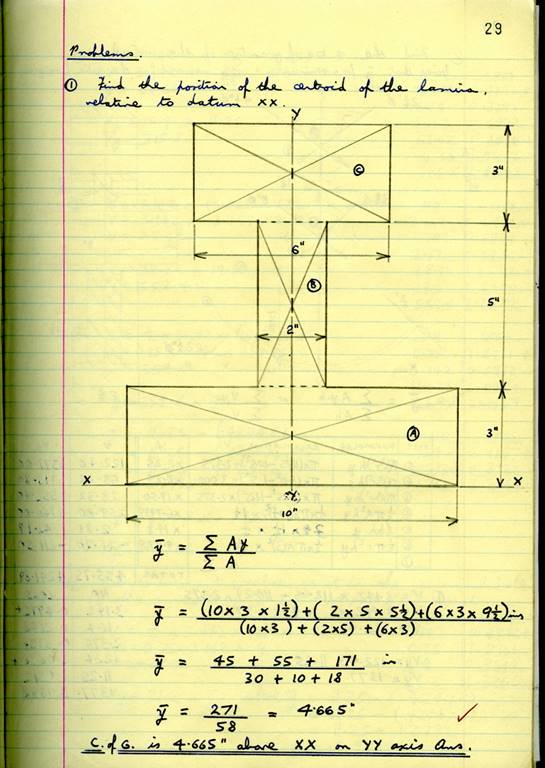

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 29
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 30

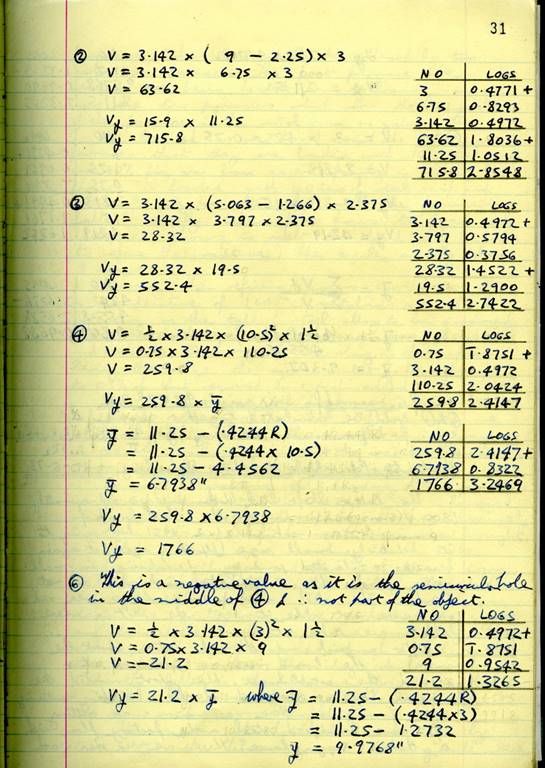

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 31
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 32

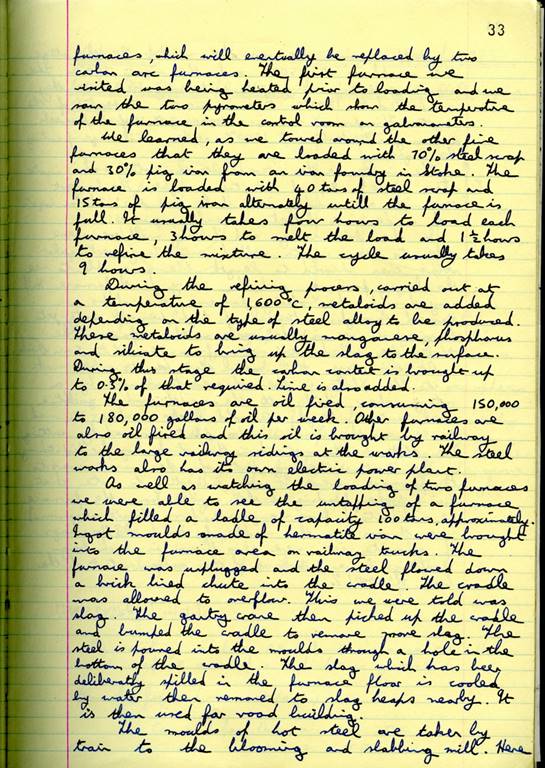

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 33
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 34
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 35

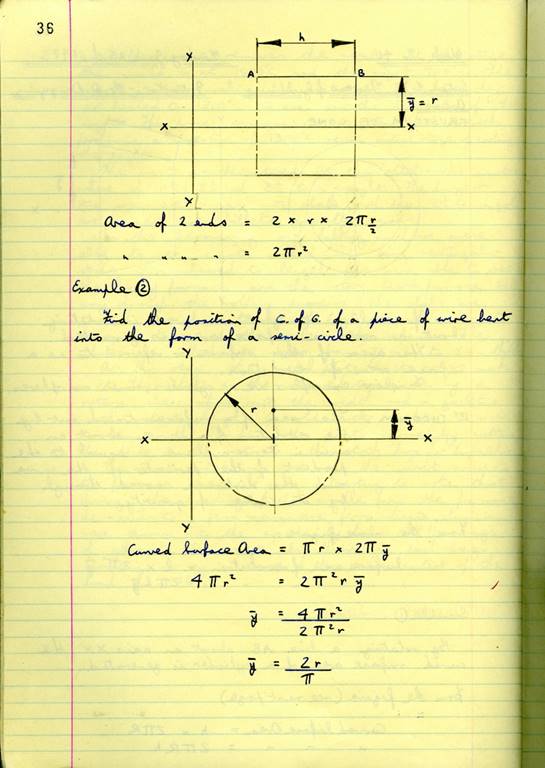

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 36
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 37

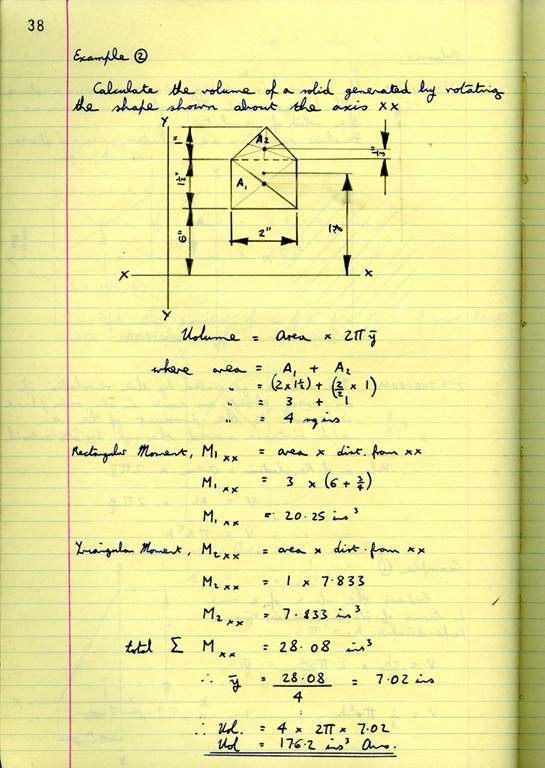

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 38

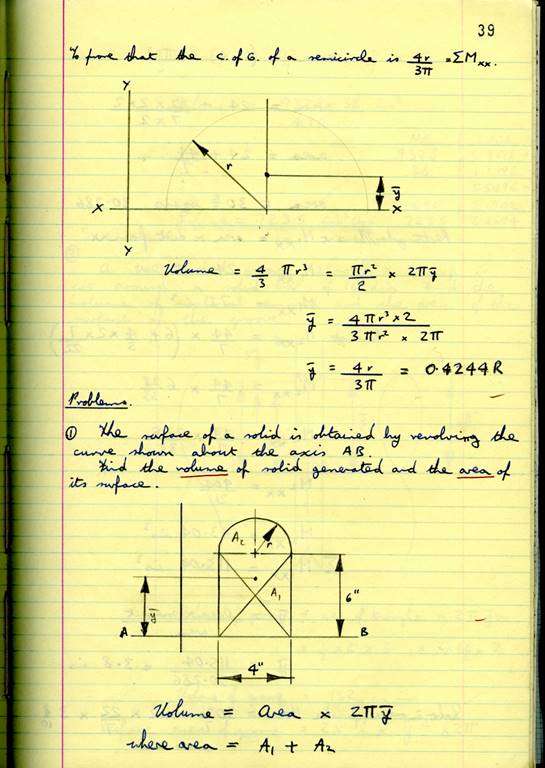

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 39

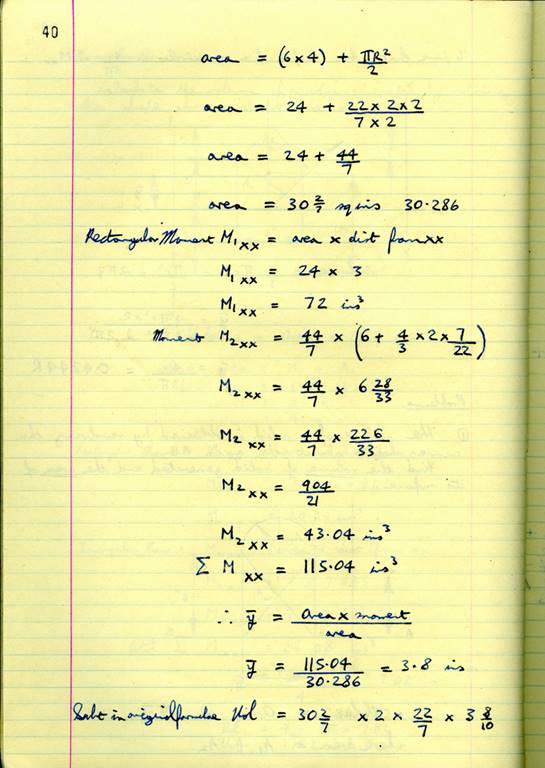

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 40
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 41
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 42
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 43
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 44
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 45
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 46
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 47

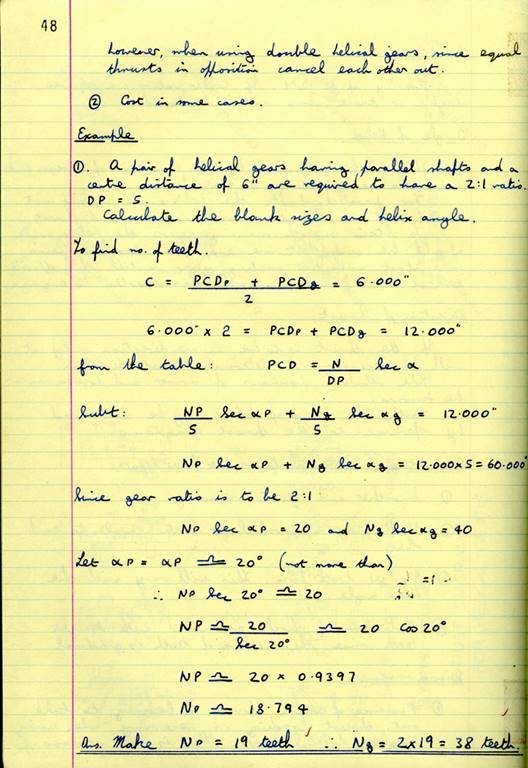

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 48
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 49
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 50
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 51
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 52
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 53
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 54
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 55

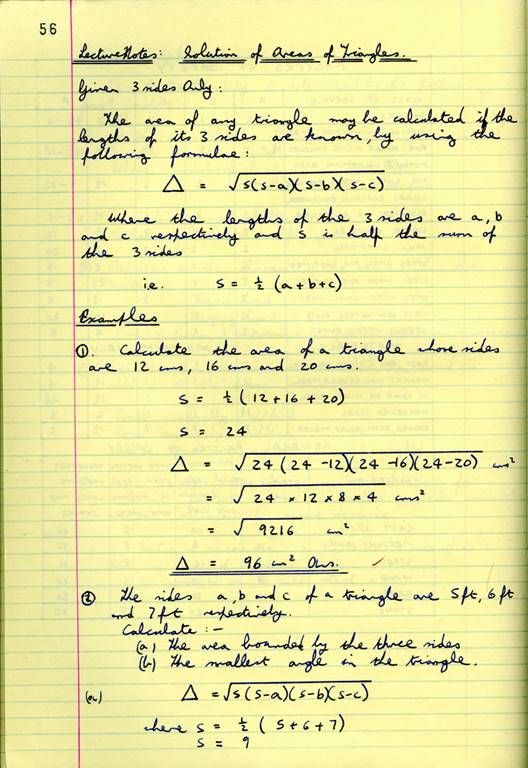

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 56
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 57
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 58
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 59
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 60
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 61
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 62
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 63
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 64
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 65
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 66
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 67
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 68
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 69
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 70

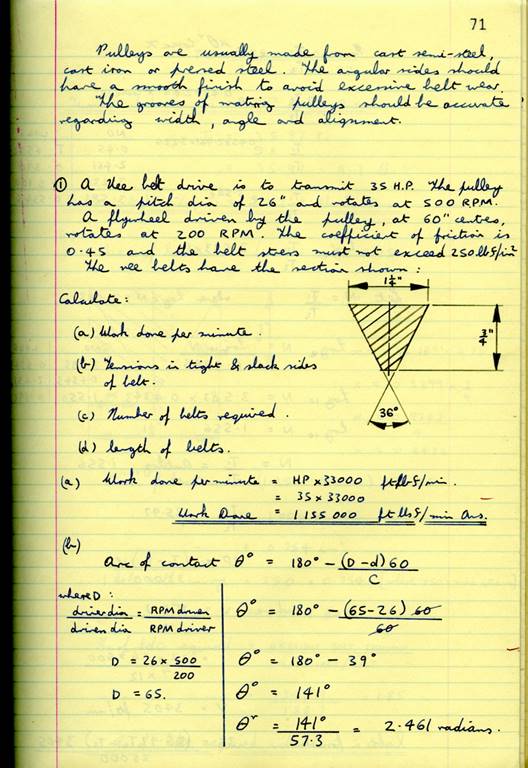

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 71

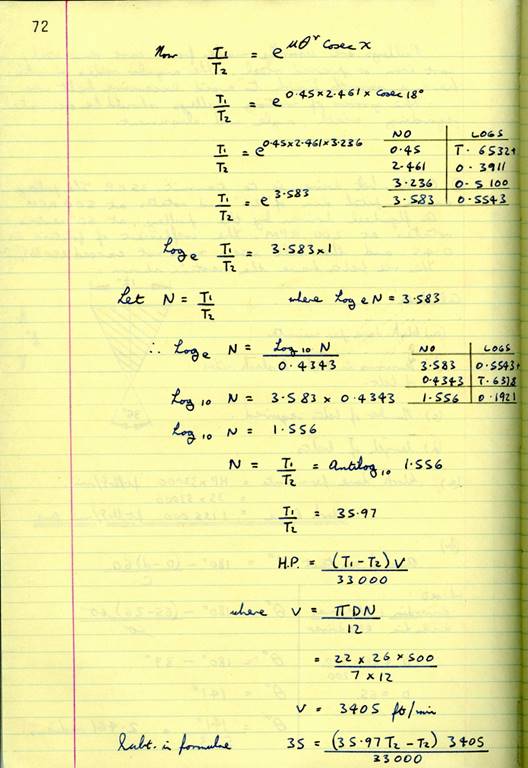

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 72
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 73
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 74
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 75

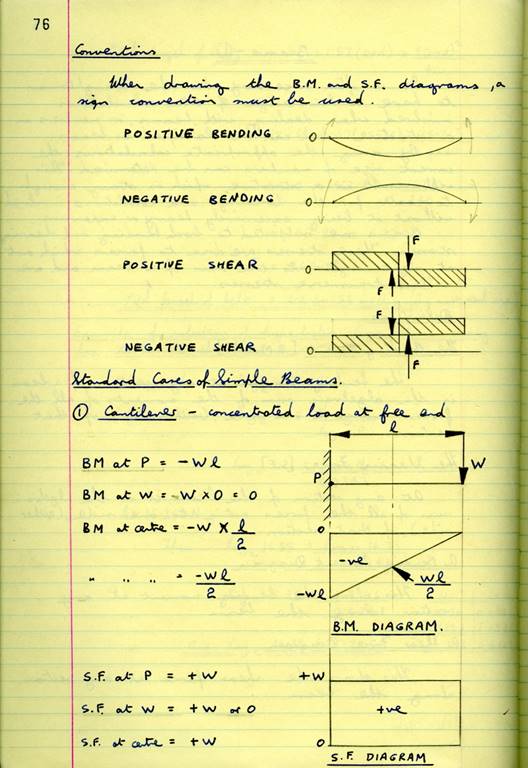

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 76
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 77
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 78
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 79
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 80
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 81
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 82
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 83
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 84
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 85

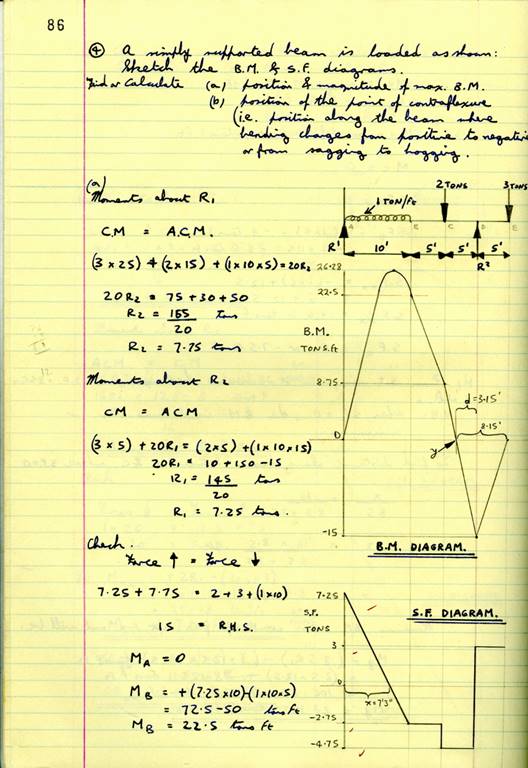

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 86
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 87
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 88

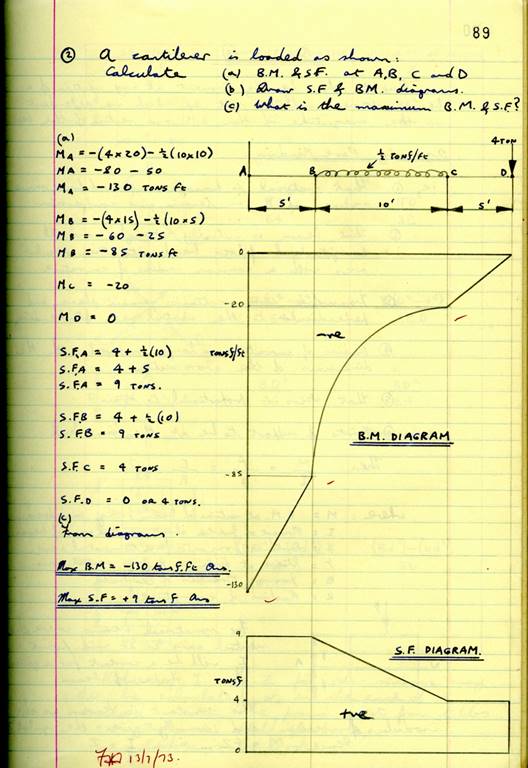

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 89
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 90

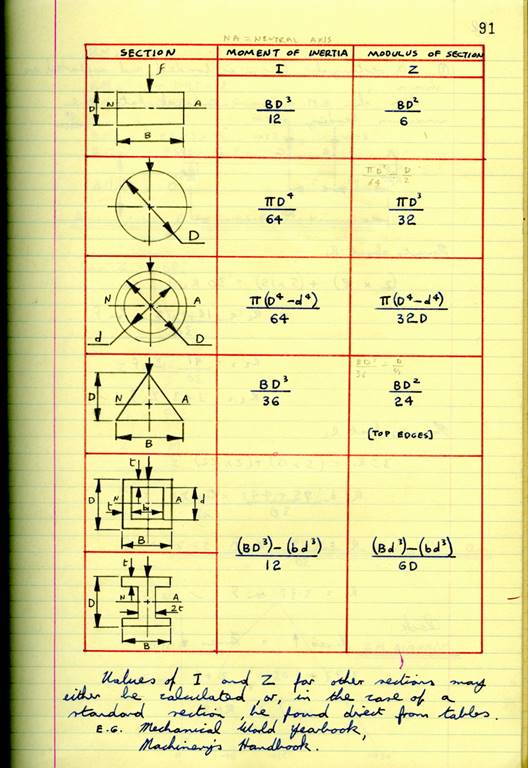

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 91
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 92
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 93

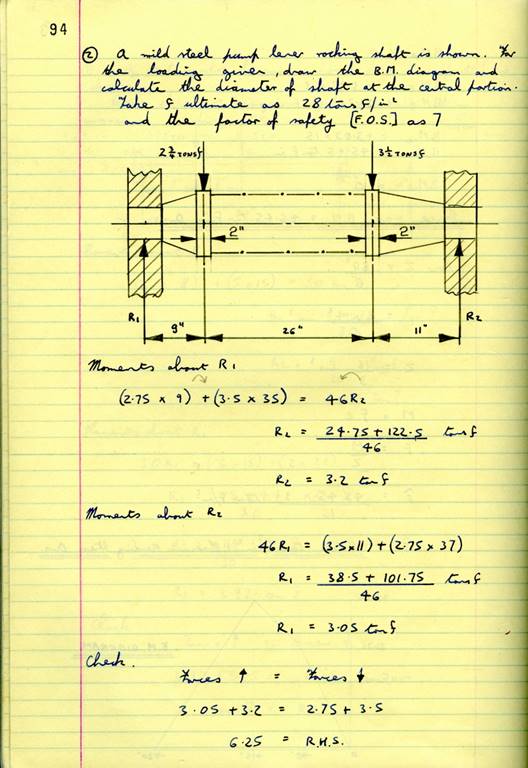

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 94
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 95
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 96

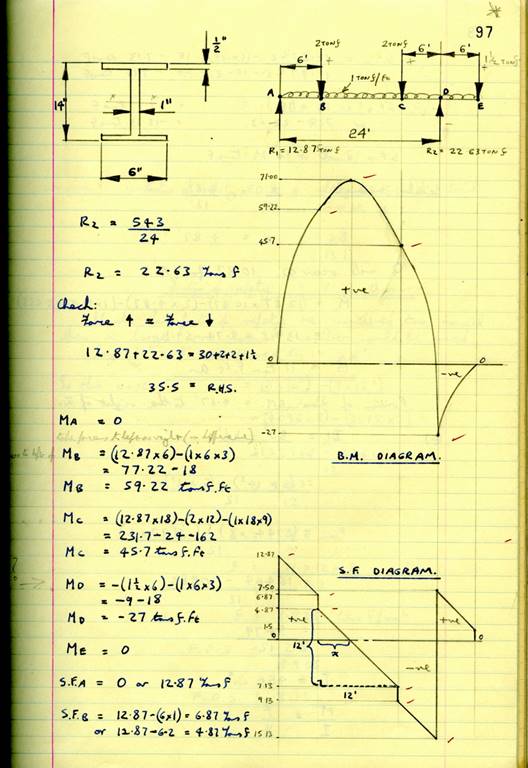

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 97

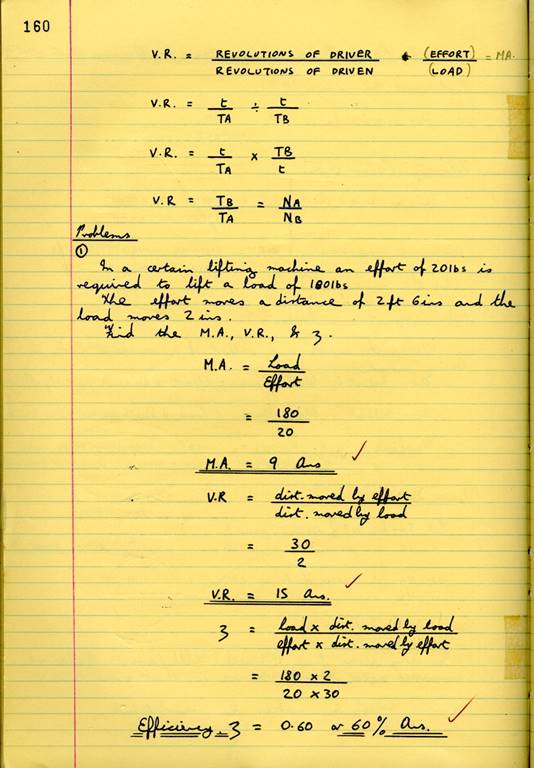

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 98
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 99
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 100

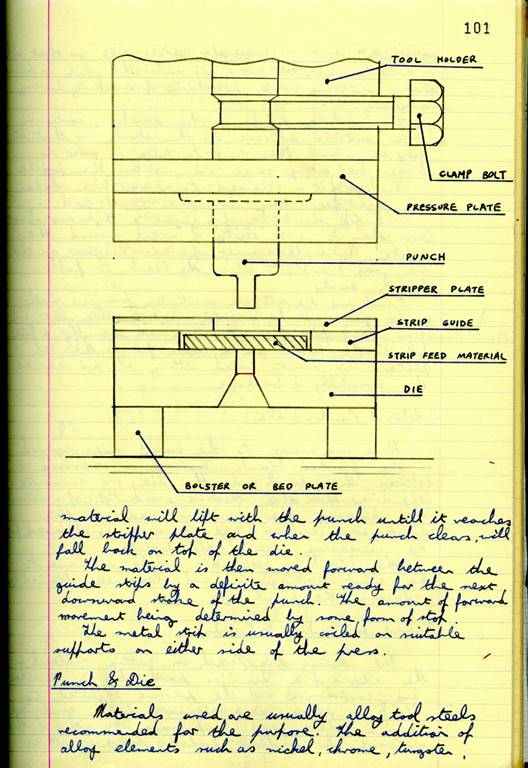

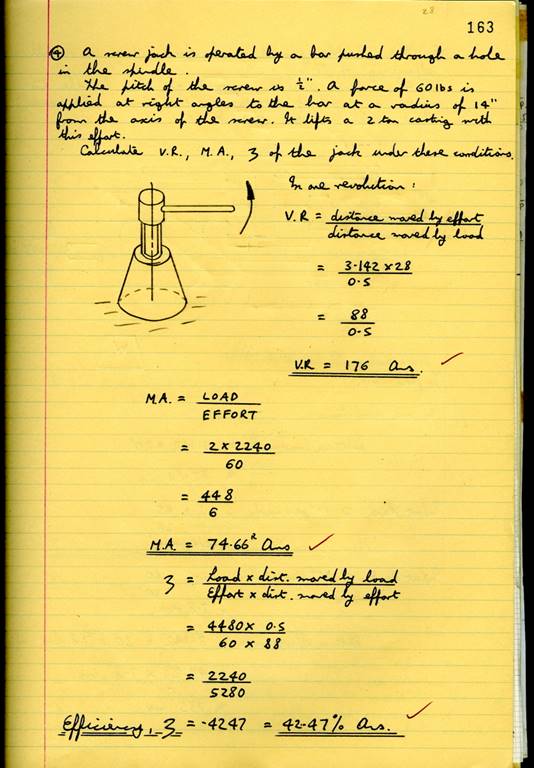

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 101

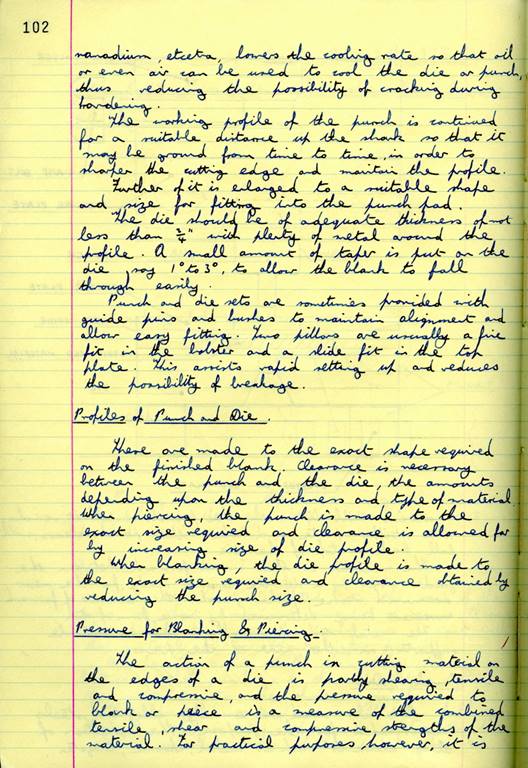

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 102
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 103
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 104
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 105
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 106
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 107

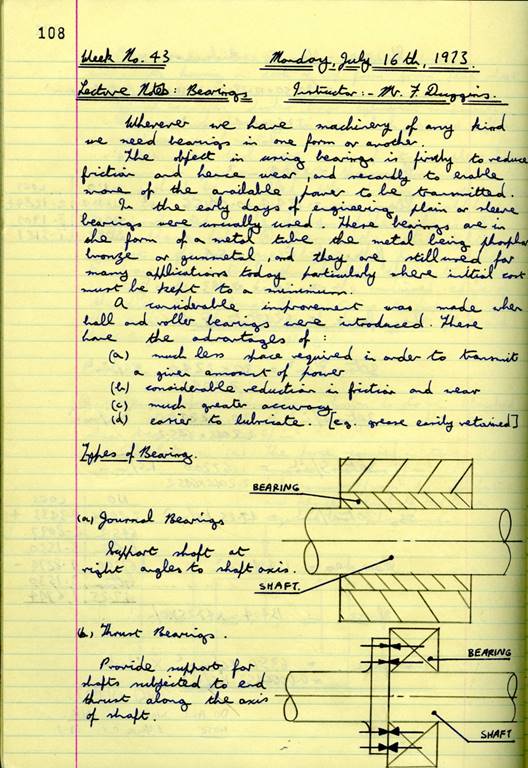

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 108
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 109
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 110
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 111

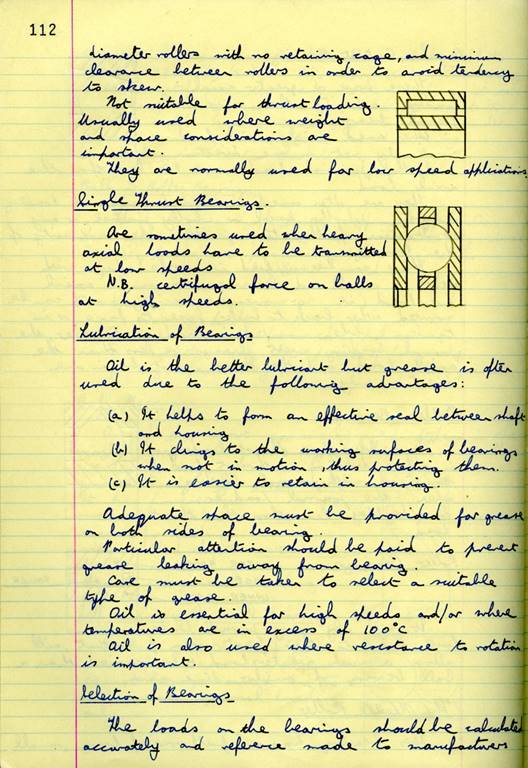

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 112
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 113
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 114
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 115
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 116
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 117
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 118
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 119
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 120 1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 121

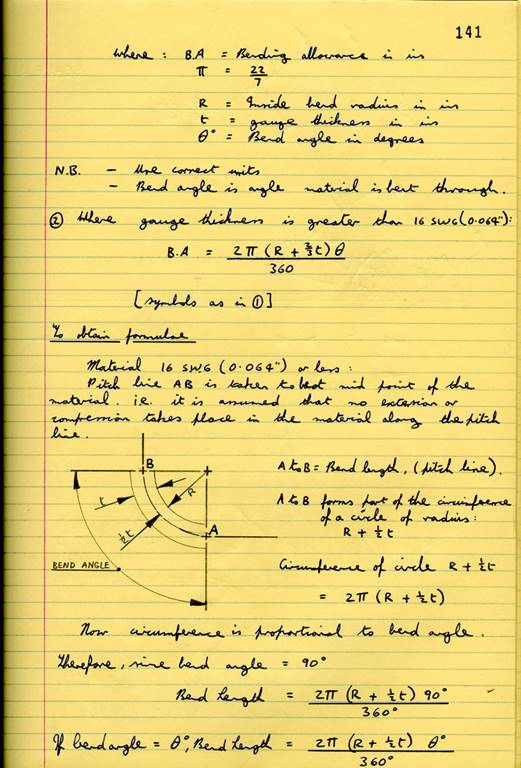

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 122

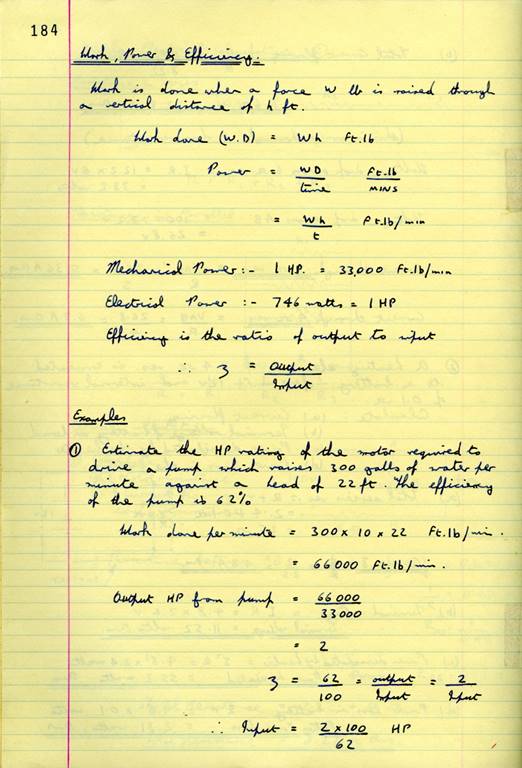

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 123
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 124
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 125
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 126
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 127
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 128
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 129

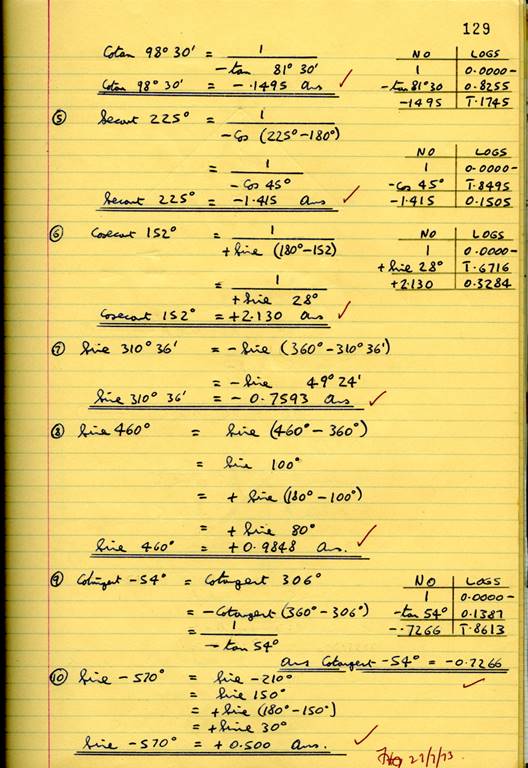

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 130
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 131
"1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 132
"1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 133
"1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 134
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 135
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 136
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 137
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 138

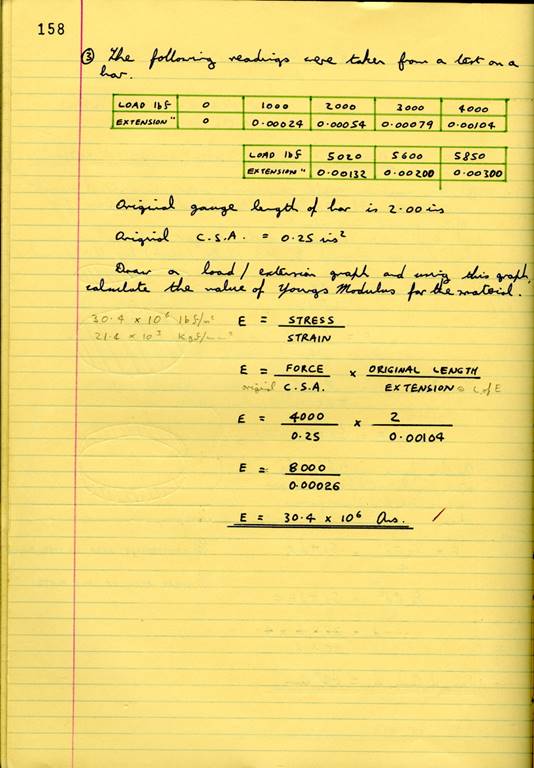

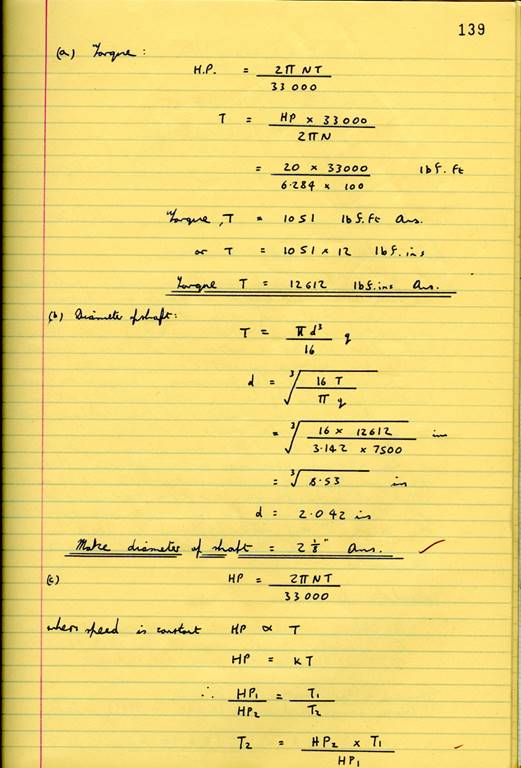

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 139
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 140

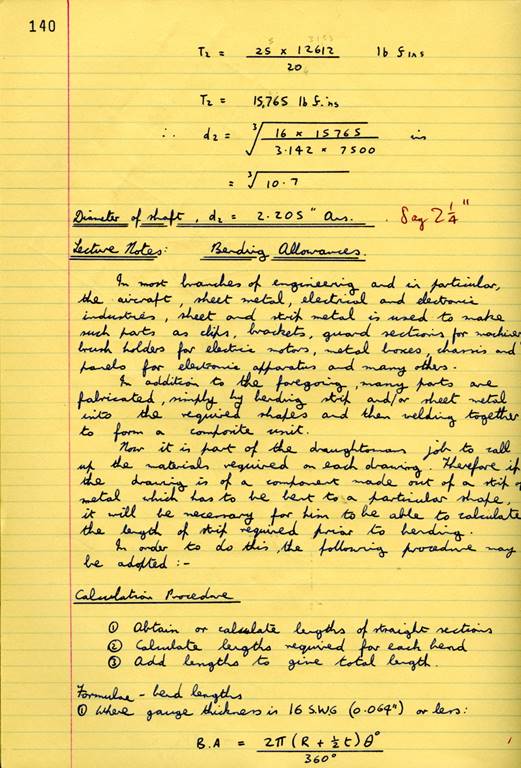

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 141
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 142
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 143
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 144

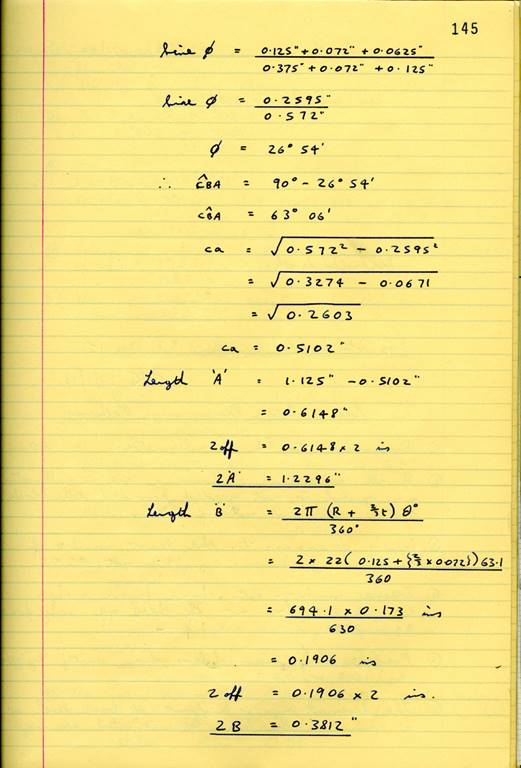

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 145
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 146

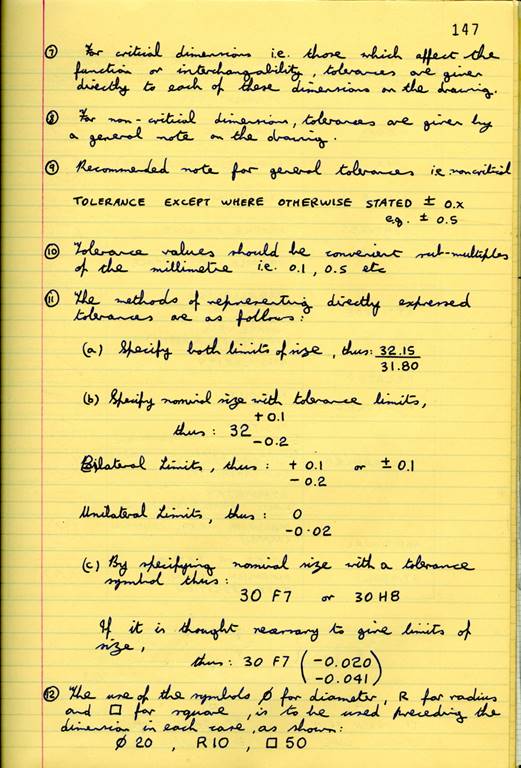

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 147
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 148
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 149
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 150
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 151
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 152
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 153

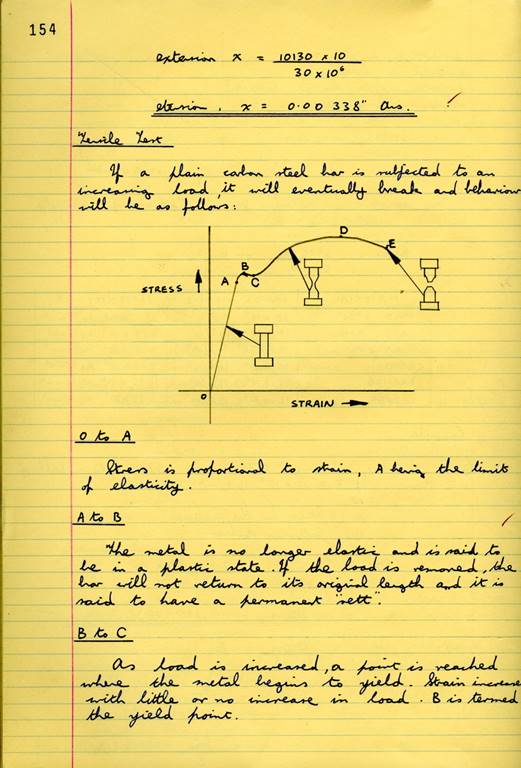

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 154
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 155
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 156

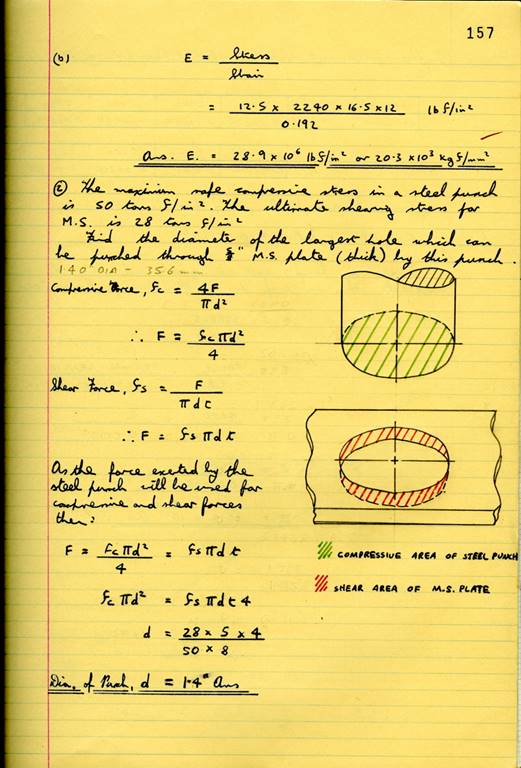

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 157
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 1158
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 159
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 160
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 161

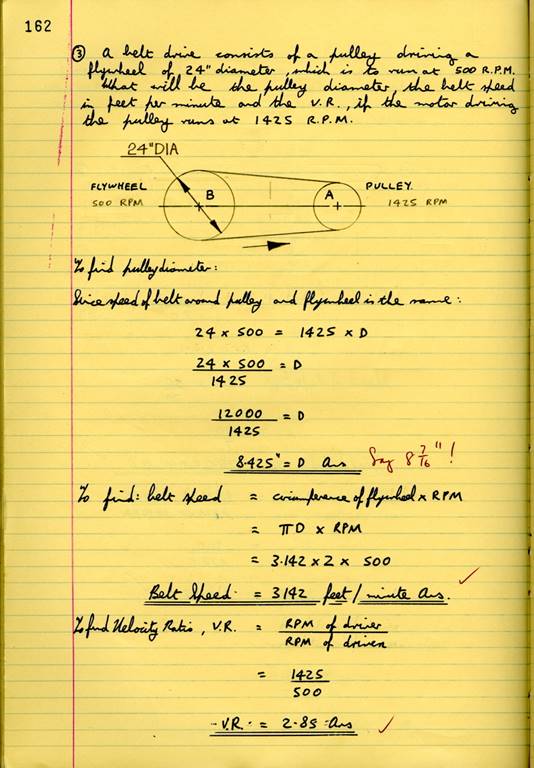

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 162
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 163

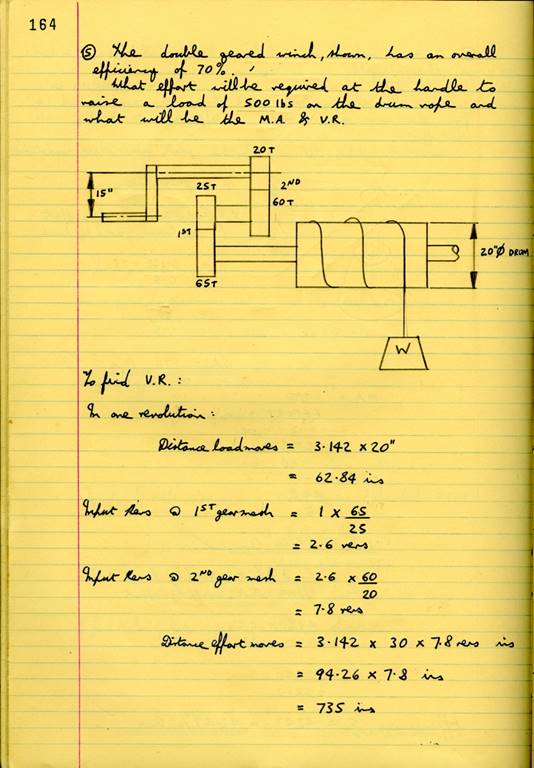

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 164
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 165
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 166
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 167

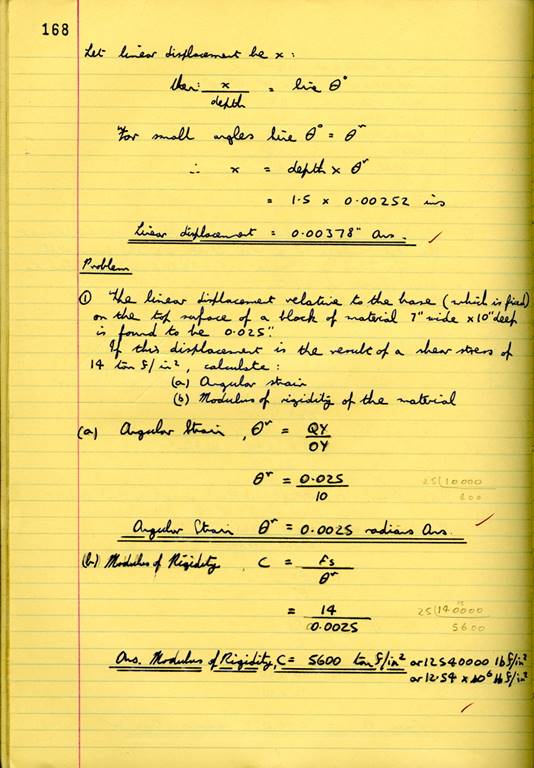

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 168

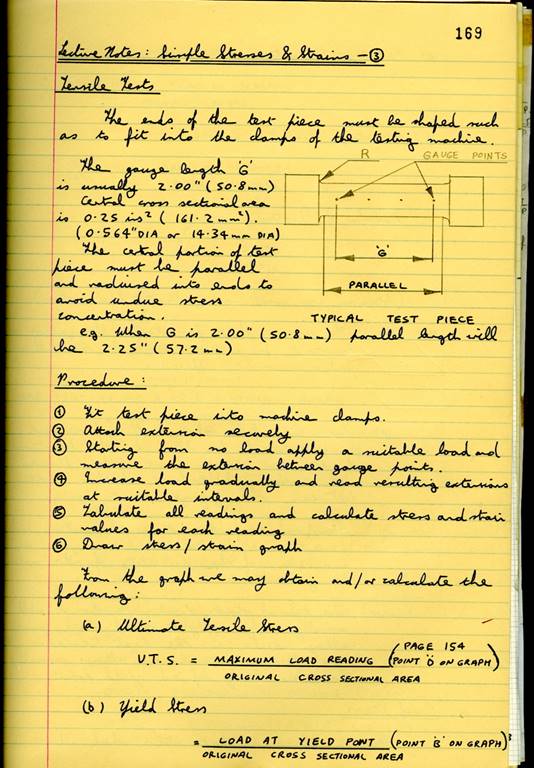

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 169
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 170
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 171
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 172
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 173
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 174
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 175
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 176
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 177
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 178
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 179

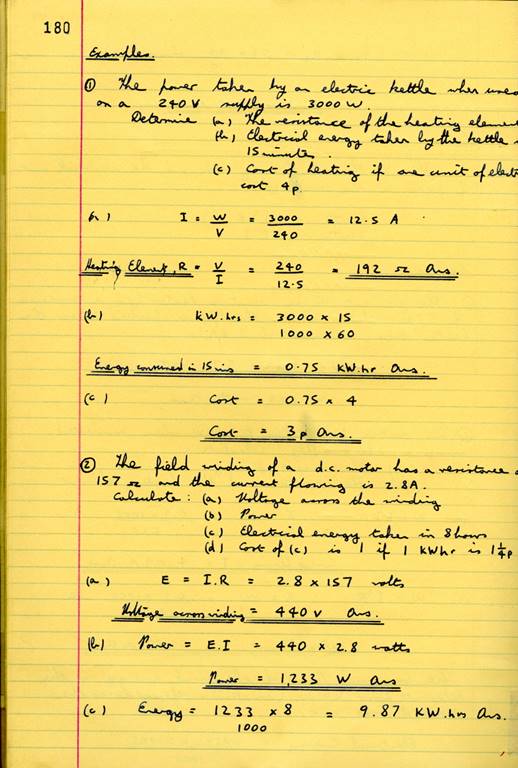

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 180
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 181
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 182
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 183
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 184
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 185
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 186

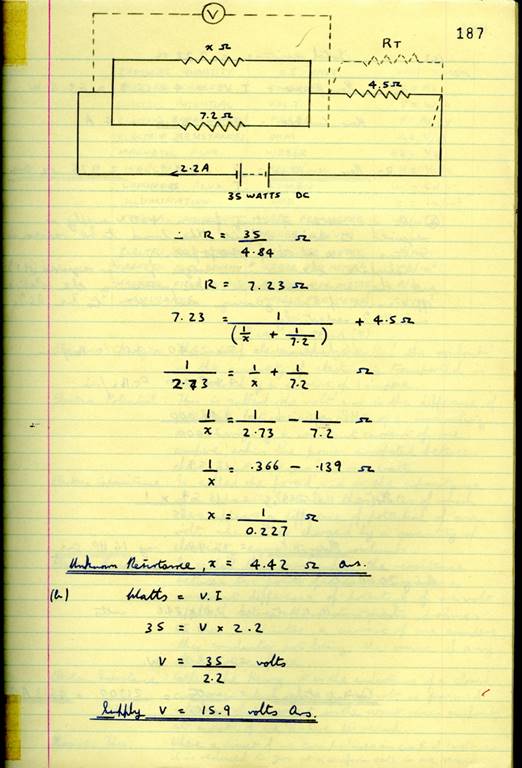

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 187

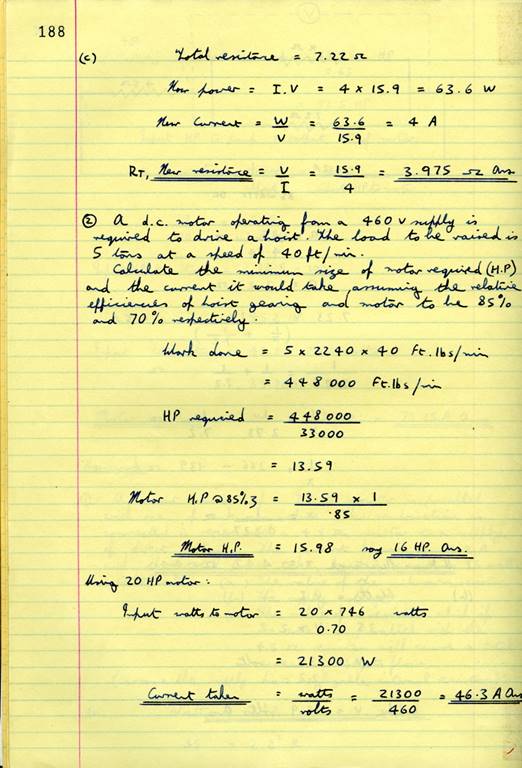

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 188
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 189
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 190
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 191
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 192

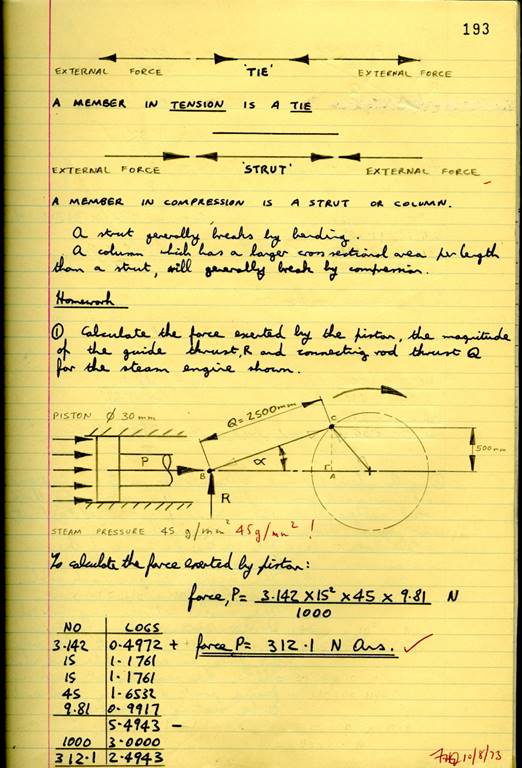

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 193

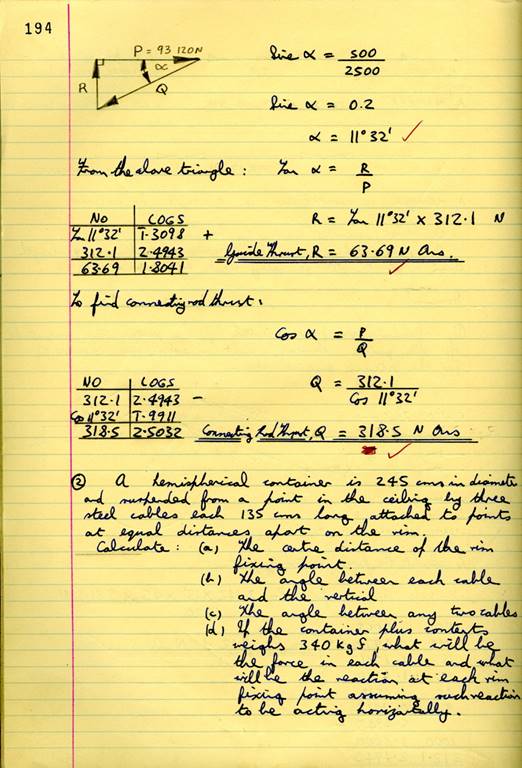

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 194
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 195

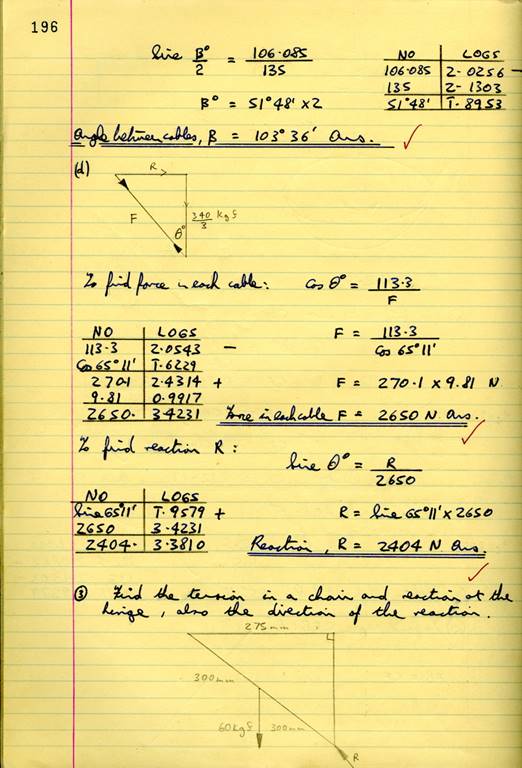

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 196
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 197
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 198

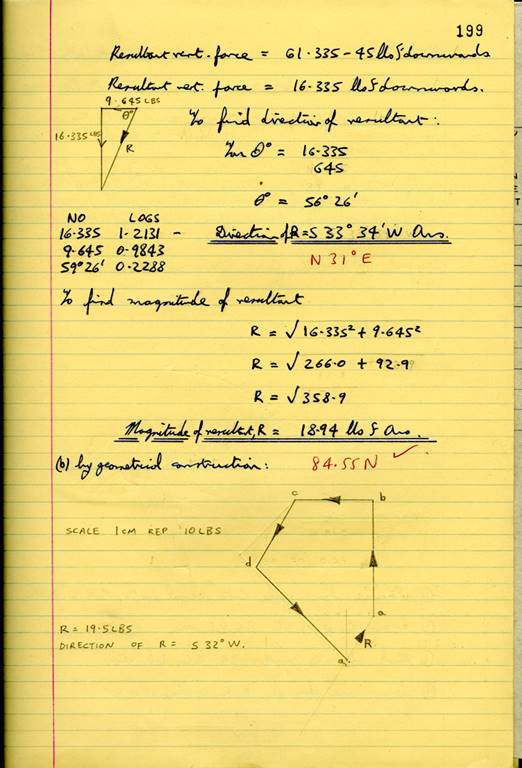

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 199
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 200
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 201
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 202

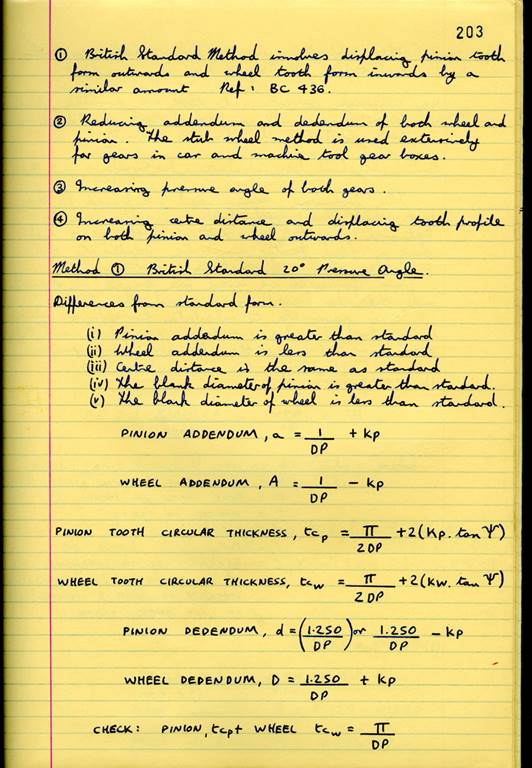

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 203
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 204
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 205

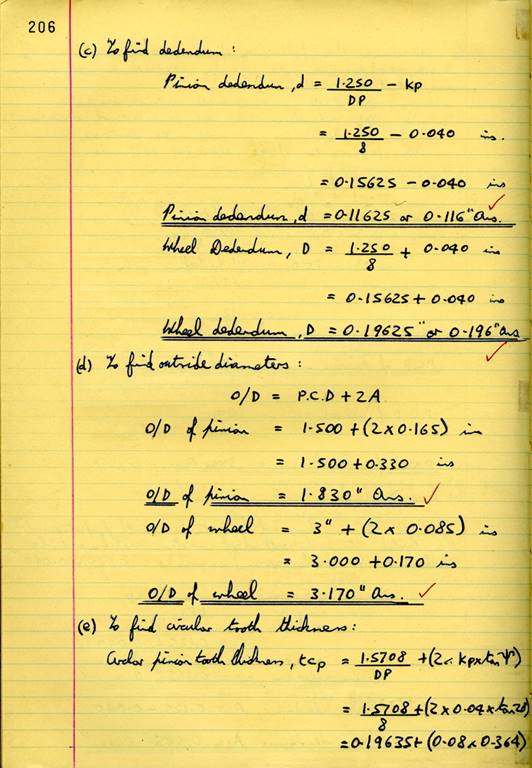

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 206

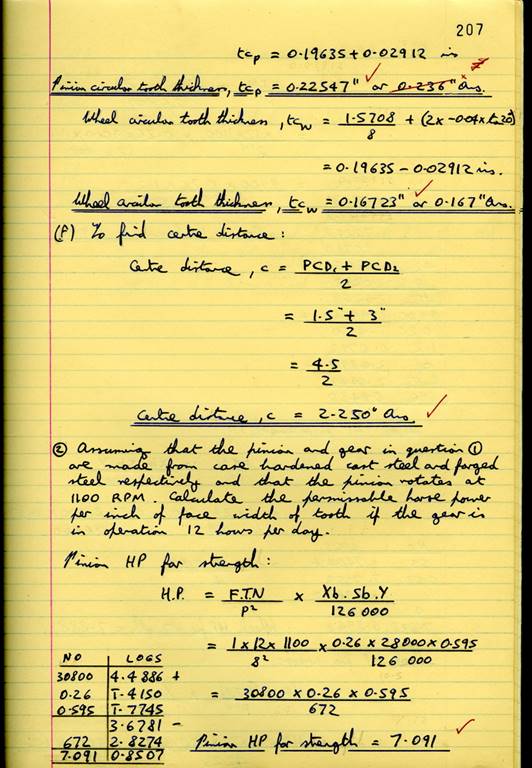

1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 207
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 208
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 209
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 210
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 211
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 212
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 213
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 214
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 215
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 216
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 217
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 218
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 219
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 220
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 221
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 222
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 223
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 224
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 225
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 226
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 227
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 228
1973 Draughtsmanship Training Course At GTC Birmingham Book 4 Page 229
