Education 1982 West Bromwich College NDT Ultrasonics
Education 1982 West Bromwich College NDT Ultrasonics Notes
Index |
|
|---|---|
| Page No. | Subject |

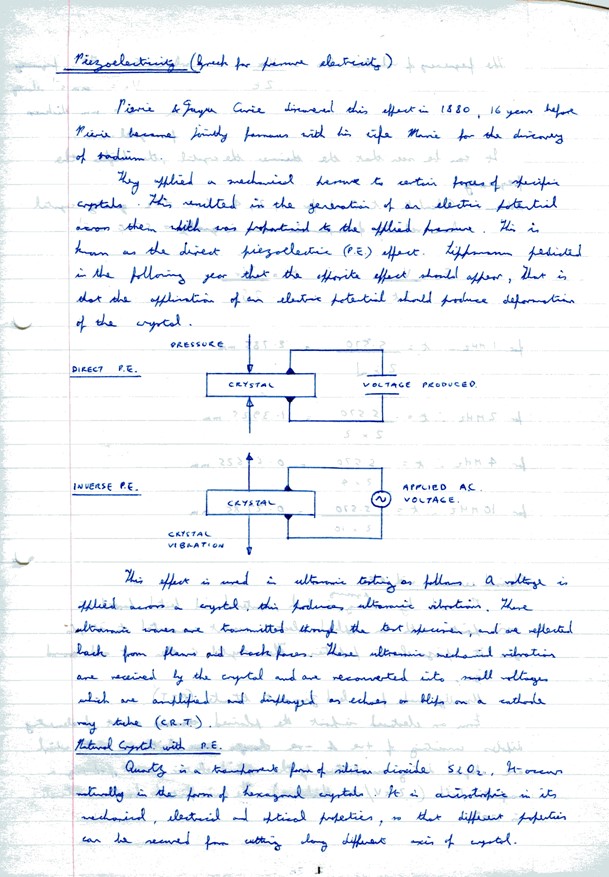

| 1 | Piezoelectricity |
| 3 | ultrasonic Probes |
| 5 | Rules for using Ultrasonics & Probe Construction |
| 7 | Ultrasonic Generator Set |
| 9 | Methods of Presentation, A, B, C |
| 11 | Calibration Block |
| 12 | Amplifier Linearity |
| 12 | BS3923 Probes for welds |
| 13 | Testing of Ultrasonic Equipment |
| 15 | BS 4331 On site testing of equipment |
| 18 | Wave Properties |
| 20 | Uses of ultrasonics |
| 23 | Velocity |
| 24 | Acoustic Impedance |
| 25 | Behaviour of Ultrasonic Waves at an Interface |

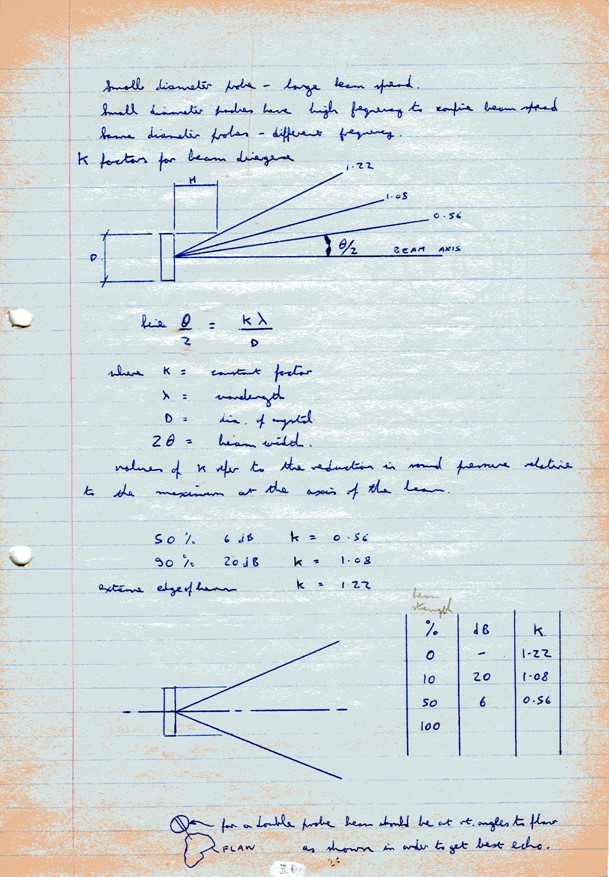

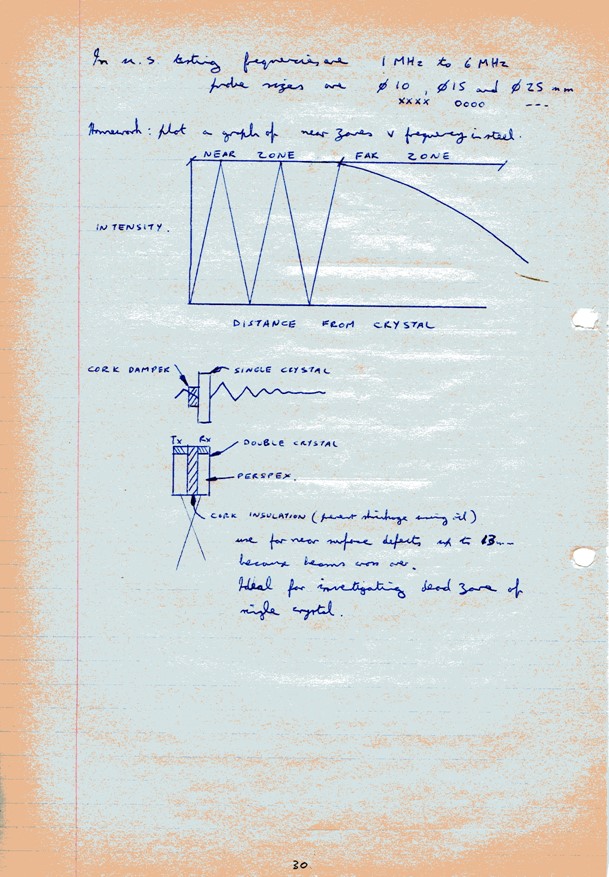

| 28 | Beam Geometry |
| 32 | Decibel Notation |
| 33 | Attenuation |
| 35 | visual Aids for Flaw Location & Sizing |

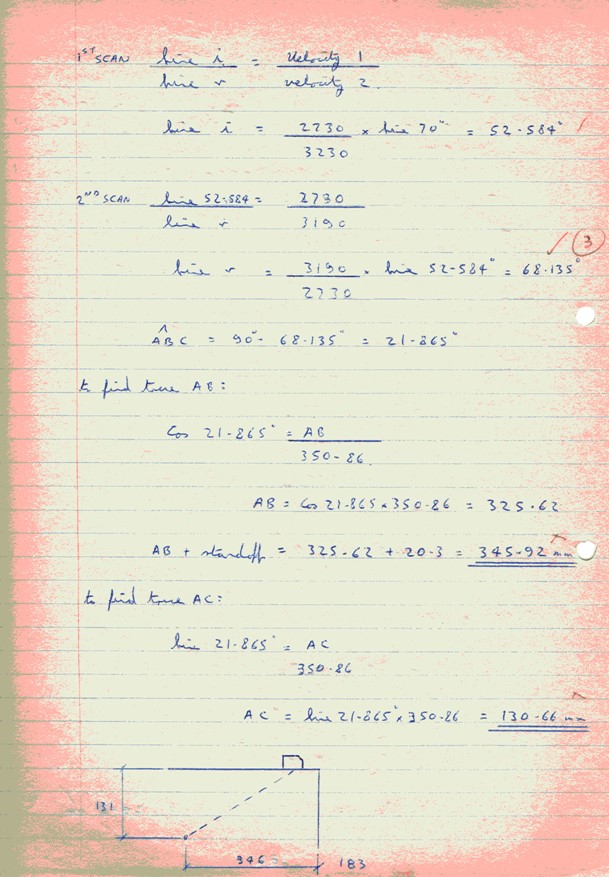

| 39 | Snell's Law' |
| 42 | Reporting Results of Test |
| 43 | Advantages/Disadvantage of Ultrasonics |

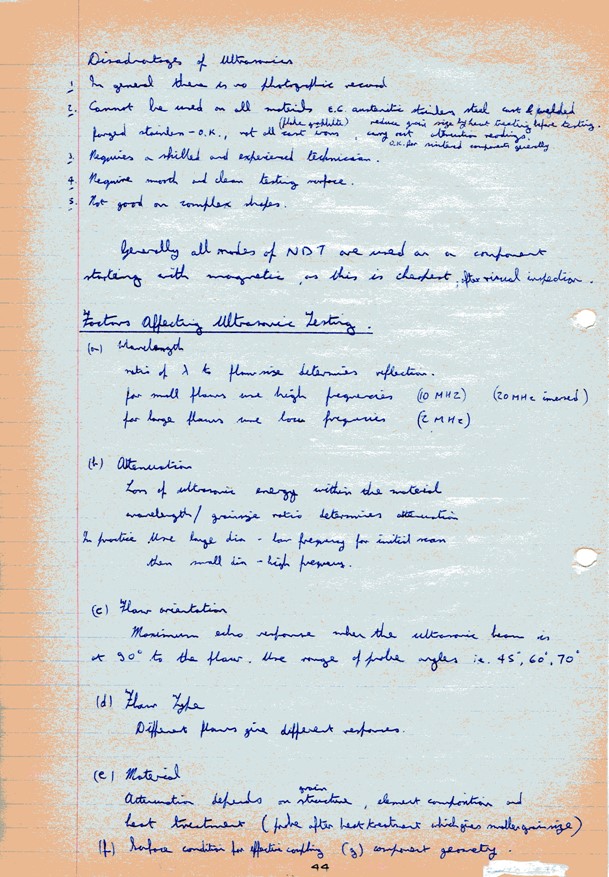

| 44 | Factors Affecting Ultrasonic Testing |
| 45 | Test Sensitivity |
| 47 | BS 6208 Casting Test Procedure |
| 49 | BS5996 Bar, Billet & Plate Test procedure |
| 50 | Flaw Assessment |
| 52 | Size of Flaw Methods |

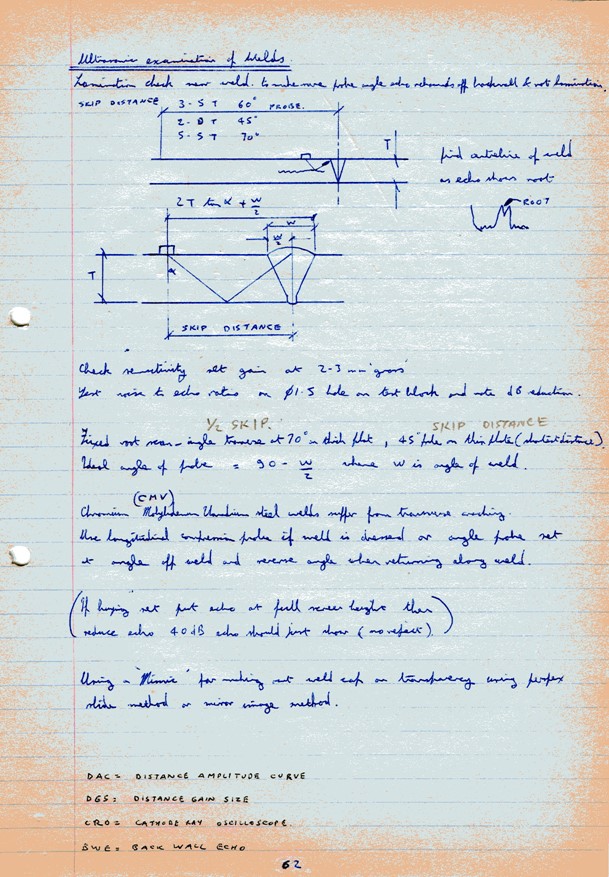

| 60 | Ultrasonic Examination of Welds |
| 65 | Weld Defects |
| 67 | Welds Having Backing Ring or Penetration Bead |
| 69 | Test of Pipe welds in High pressure & Hot Pipelines |
| 71 | Ultrasonic Testing of Butt Welds Summary |
| 72 | Laminations in Plate & British Standards |
| 73 | BS2704 Test Blocks |
| 74 | Practical Considerations relating to 1st & 2nd Angles |
| 74 | Acoustic & Mechanical Properties of Materials |
| 74 | Immersion Testing |
| 78 | Ultrasonics Flaw Detection Report No.1 Description & Operation of Krautkramer Set |

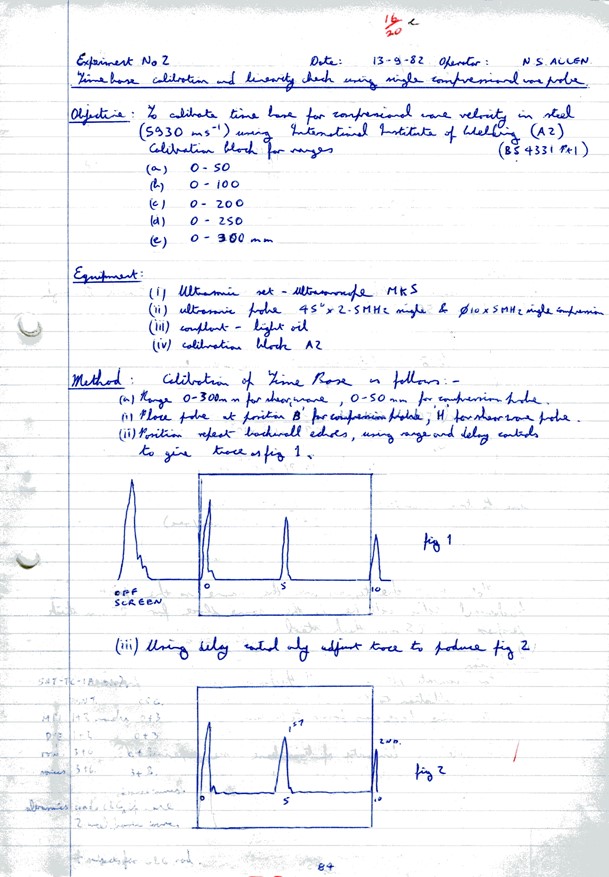

| 80 | Ultrasonics Flaw Detection Report No.2 Time Case Calibration & Linearity Check Using Single Compressional Wave probe |
| 82 | Ultrasonics Flaw Detection Report No.3 Time Base Calibration & Linearity for Double Compression Probe |
| 84 | Ultrasonics Flaw Detection Report No.4 Resolution, Penetrating Power & Dead Zone |
| 86 | Ultrasonics Flaw Detection Report No.5 Distance Amplitude Curves for Single & Double Compression Probes |
| 88 | Ultrasonics Flaw Detection Report No.6 20dB beam Spread for Compression Probes |
| 91 | Ultrasonics Flaw Detection Report No.7 Signal to Noise Ratio to BS4331 Pt.1 |
| 93 | Ultrasonics Flaw Detection Report No.8 Linearity of Gain to BS4331 |

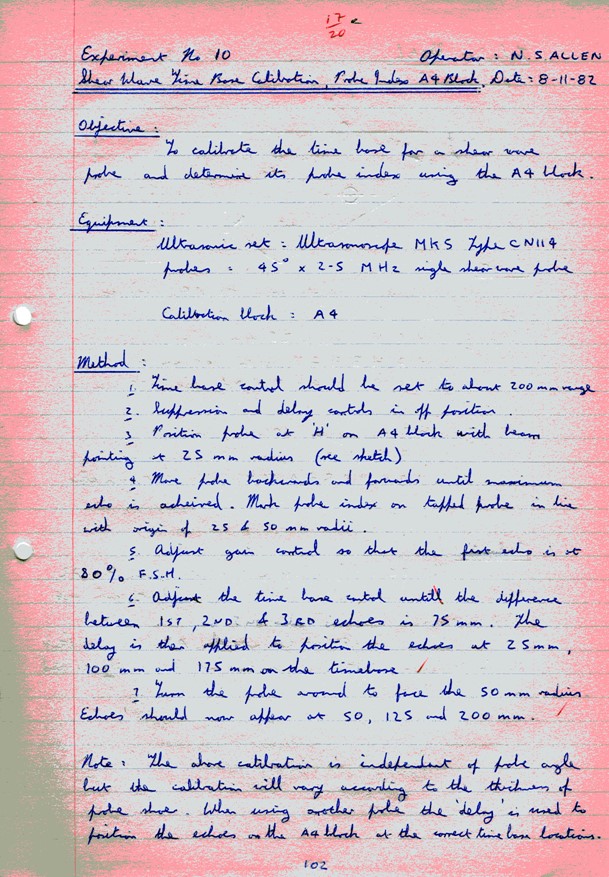

| 95 | Ultrasonics Flaw Detection Report No.9 Shear Wave Time Base Calibration, Probe Index A2 Block |
| 97 | Ultrasonics Flaw Detection Report No.10 Shear Wave Time Base Calibration, Probe Index A4 Block |
| 99 | Ultrasonics Flaw Detection Report No.11 Probe Angle A2 Block & A5 Block |
| 101 | Ultrasonics Flaw Detection Report No.12 Plotting Distance Amplitude Curves for Single & Double Shear Wave Probes |
| 105 | Ultrasonics Flaw Detection Report No.13 20dB Beam Spread, Vertical Plane, Angle Probes |
| 107 | Ultrasonics Flaw Detection Report No.14 20dB Beam Spread, Horizontal Plane, Shear Waves |
| 109 | Ultrasonics Flaw Detection Report No.15 Flaw Sizing: 20dB Drop |
| 111 | Ultrasonics Flaw Detection Report No.16 Flaw Sizing: 6dB Drop |
| 113 | Ultrasonics Flaw Detection Report No.17 Flaw Sizing: Distance Gain Size (DGS) |
| 115 | Ultrasonics Flaw Detection Report No.18 flaw Sizing: Maximum Amplitude |
| 117 | Ultrasonics Flaw Detection Report No.19 Skip Distance |
| 121 | Ultrasonics Flaw Detection Report No.20 Measurement of Probe Frequency & Pulse Length |
| 123 | Ultrasonics Flaw Detection Report No.21 Beam Squint for Angle Probes |

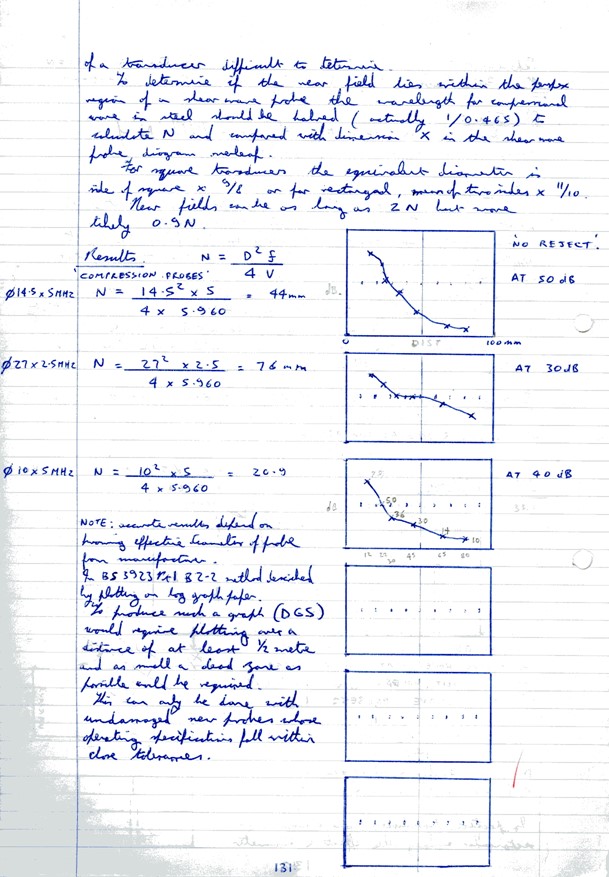

| 125 | Ultrasonics Flaw Detection Report No.22 Near Field Check to BS4331 Pt.3 |
| 127 | Ultrasonics Flaw Detection Report No.23 Resolving Power, Depth & Angle to BS4331 Pt. 3 |
| 129 | Ultrasonics Flaw Detection Report No.24 Mode Conversion: Compression-Shear-Compression |
| 131 | Ultrasonics Flaw Detection Report No.25 Mode Conversion: Shear-Compression-Shear |
| 133 | Ultrasonics Flaw Detection Report No.26 Sizing Drilled Hole Summation |
| 135 | Ultrasonics Flaw Detection Report No.27 Proof of Snell's Law |

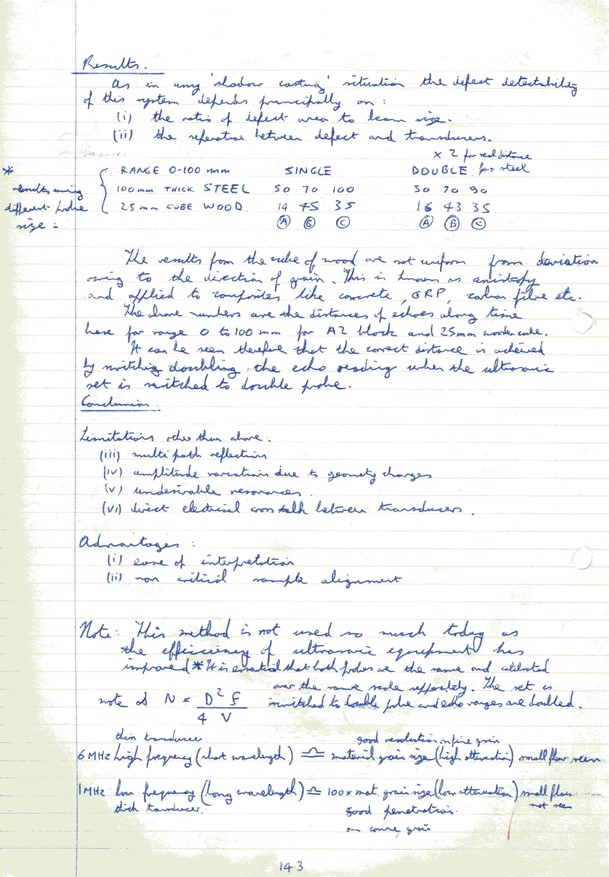

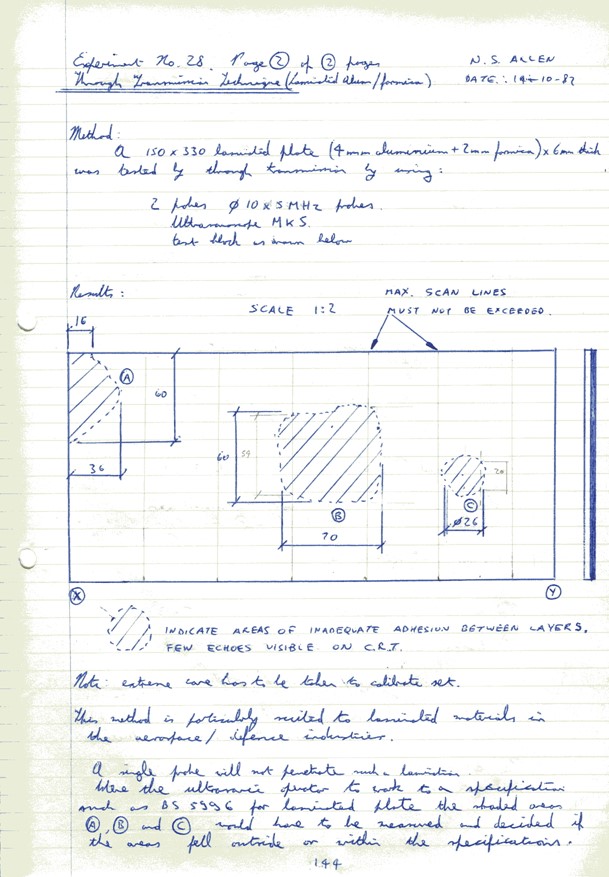

| 137 | Ultrasonics Flaw Detection Report No.28 through Transmission Technique (Steel & Wood) |
| 141 | Ultrasonics Flaw Detection Report No.29 Tandem Technique |
| 143 | Ultrasonics Flaw Detection Report No.30 Attenuation to BS3923 Pt. P.11 Compression Probes |
| 145 | Ultrasonics Flaw Detection Report No.31 Immersion Testing |
| 147 | Ultrasonics Flaw Detection Report No.32 Interferometer (Velocity by Immersion) |
| 149 | Ultrasonics Flaw Detection Report No.33 Product Testing No.36 Bolts |
| 151 | Ultrasonics Flaw Detection Report No.34 Product Testing No. 38 Hub Forging |
| 152 | Ultrasonics Flaw Detection Report No.35 Product Testing No. 43 Weld Configuration |
| 154 | Ultrasonics Flaw Detection Report No.36 Product Testing No.50 Root Scan & Determination |

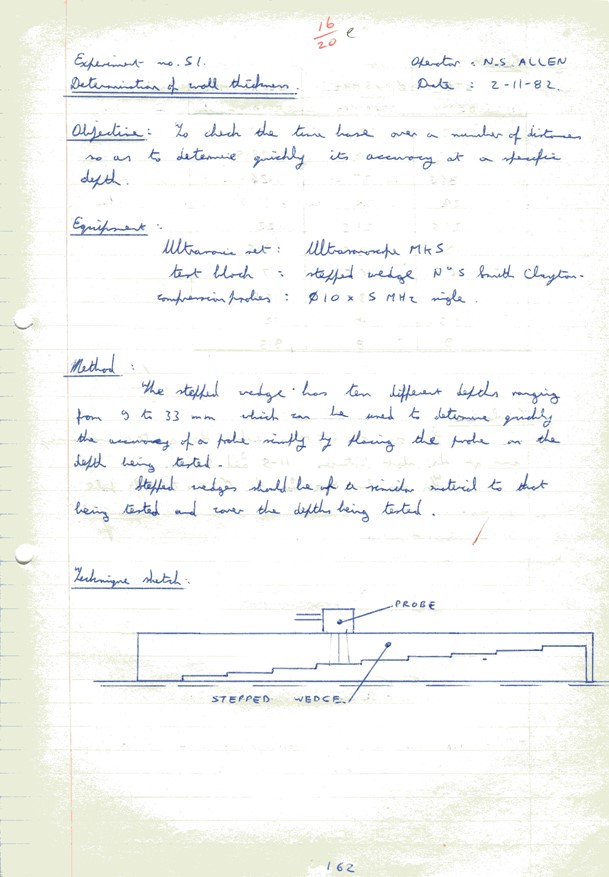

| 156 | Ultrasonics Flaw Detection Report No.37 Product Testing No.51 Wall Thickness |

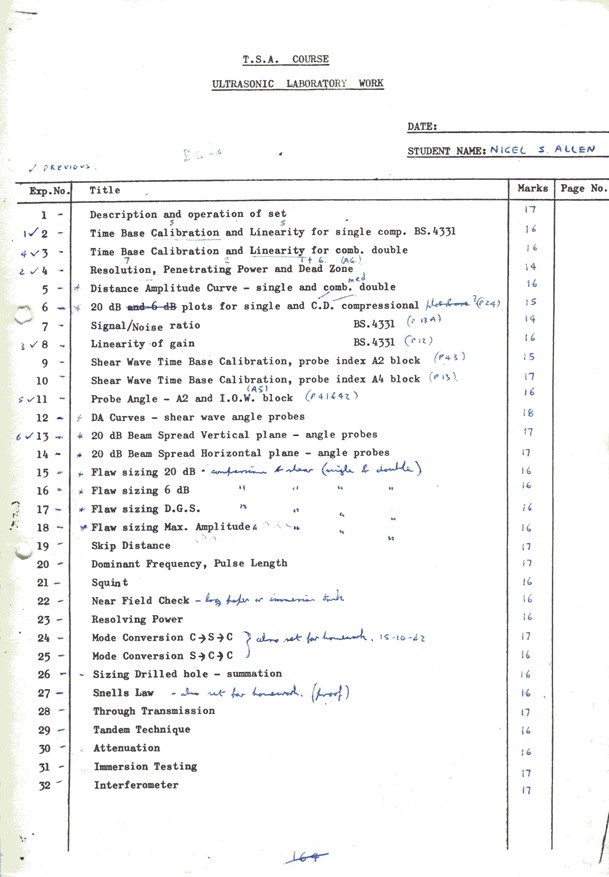

| 158 | Ultrasonic Laboratory Work List Results |

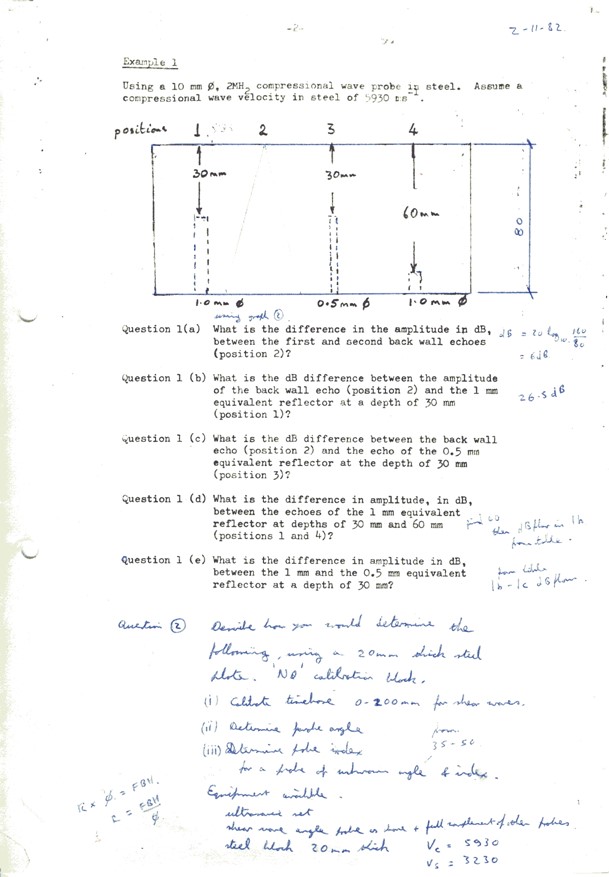

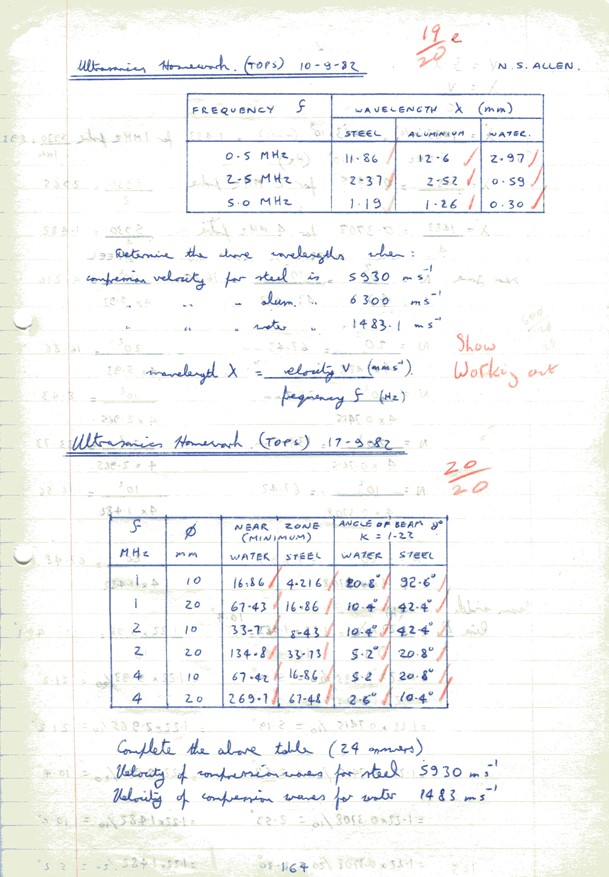

| 160 | Ultrasonics Homework (TOPS) 10-9-82 |
| 166 | Ultrasonics Homework (TOPS)15-10-82 |
| 168 | Ultrasonics Homework (TOPS) 2-11-82 |
| 171 | Ultrasonics Homework (TOPS) 3-11-82 |
| 175 | Ultrasonics Homework (TOPS) 10-11-82 |
| 177 | Ultrasonics Homework (TOPS) 17-11-82 |
| 179 | Ultrasonics Homework (TOPS) 25-11-82 |
| 181 | Visit to AT Arnolds Ltd. 8-12-82 & 14-12-82 |
| 182 | visit to Gamma Rays Ltd. 9-11-82 |

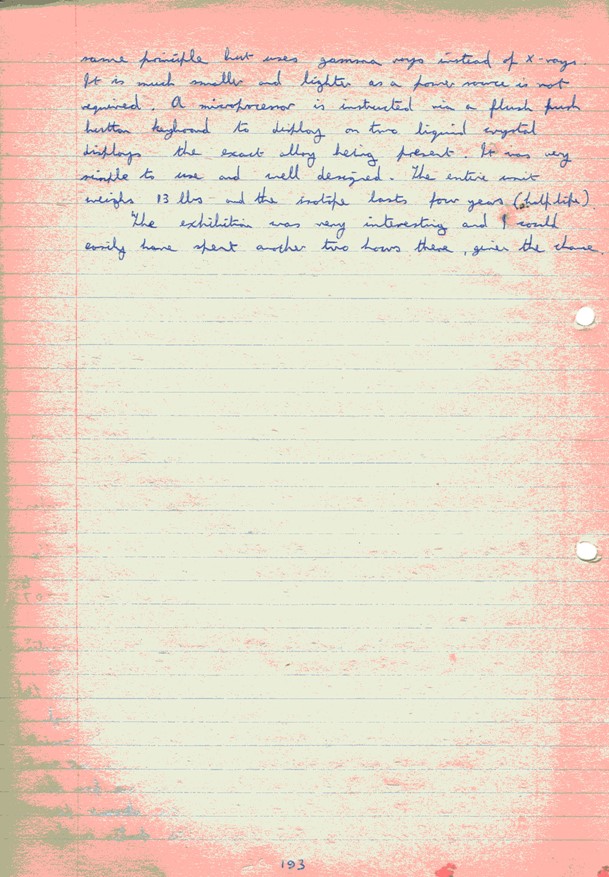

| 184 | Visit to see NDT Equipment by Inspection Instruments Ltd., at Post House Hotel, Coventry on 17-11-82 |

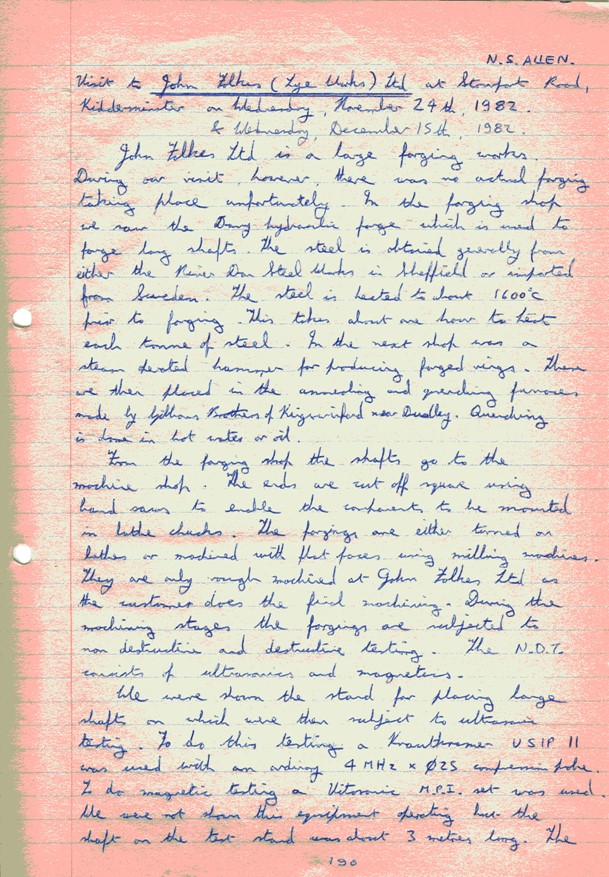

| 186 | Visit to John Folkes (Lye Works) Ltd., Kidderminster 24-11-82 |
| BINDT Equipment Exhibition 1-12-82 at Novatel Hotel, Nottingham |
|
